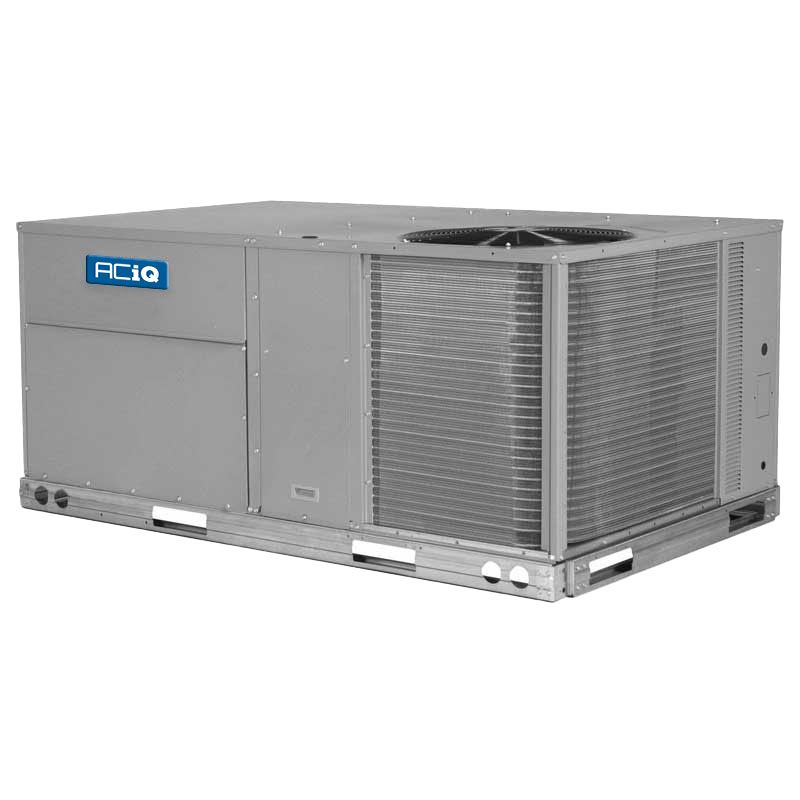

Aciq RAV240L02A0AAA 20 Ton Packaged Air Conditioner 460V

Product Description

The ACIQ RAV240L02A0AAA is a 20-ton two-stage packaged air conditioner built for light commercial applications. It operates on 460-volt, 3-phase power, making it suitable for commercial buildings with three-phase electrical service. The two-stage compressor operation allows the unit to run at a lower capacity during moderate load conditions, improving efficiency and extending equipment life. X-Vane fan technology is incorporated into the design, providing enhanced airflow performance compared to standard fan configurations. This unit is installed by licensed commercial HVAC technicians and is designed for rooftop or ground-level packaged installations.

The RAV240L02A0AAA targets light commercial environments such as retail spaces, office buildings, and similar structures requiring large-capacity packaged cooling. As a self-contained packaged unit, all refrigeration components are housed in a single cabinet, simplifying installation compared to split systems. The 460-volt, 3-phase power requirement is standard in commercial construction and aligns with typical light commercial electrical infrastructure.

Key Features

• 20-ton cooling capacity suited for large light commercial spaces
• Two-stage compressor operation for improved part-load efficiency and comfort
• 460-volt, 3-phase power configuration matches standard commercial electrical service
• X-Vane fan technology for enhanced condenser airflow performance
• Self-contained packaged design consolidates all refrigeration components in one cabinet

Compatibility

Designed as an OEM-style packaged air conditioner for light commercial applications requiring 20-ton, 460-volt, 3-phase cooling capacity.

Installation Notes

Installation must be performed by a licensed commercial HVAC technician. Disconnect and lock out all electrical power before beginning service or installation work. Three-phase wiring connections must comply with local electrical codes and NEC requirements. Verify that the mounting structure, whether rooftop curb or ground pad, meets the weight and load specifications for this unit size before installation.

Technical Specifications

• Cooling Capacity: 20 Ton
• Voltage: 460 volts
• Phase: 3 Phase
• Compressor Stages: Two Stage
• Application: Light Commercial
• Unit Type: Packaged Air Conditioner

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: RAV240L02A0AAA
