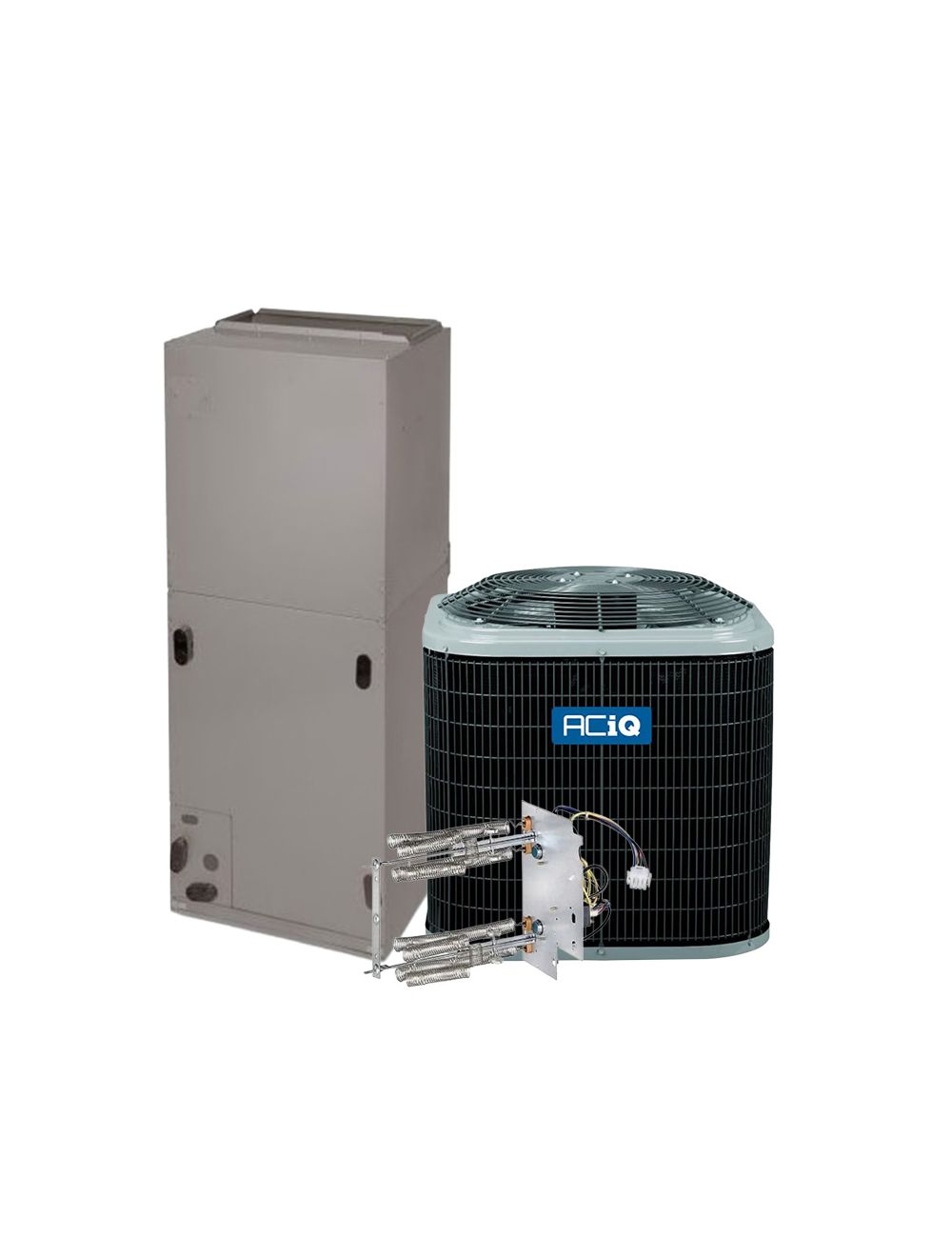

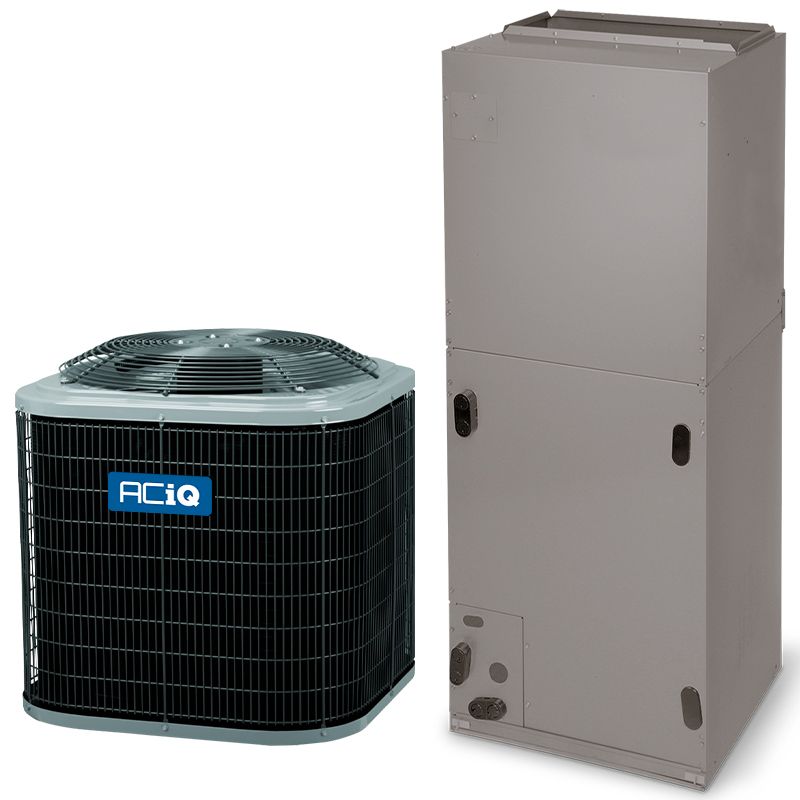

Aciq R5A5S42AKAWA FTMA5B48L0CA Variable Speed Air Conditioner Split System 3.5 Ton Multi-Positional

Product Description

The Aciq R5A5S42AKAWA / FTMA5B48L0CA is a split air conditioning system comprising a 3.5 ton outdoor condenser (R5A5S42AKAWA) and a 4 ton multi-positional variable-speed air handler (FTMA5B48L0CA). The condenser uses a single-stage scroll compressor and is pre-charged for a 15-foot line set with R454B refrigerant. The air handler includes a variable-speed blower, factory-installed TXV, corrosion-resistant all-aluminum coil and a washable filter, and both operate on 208/230 V, 1 Phase, 60 Hz.

• Condenser: 3.5 Ton (42,000 BTU), single-stage scroll compressor, pre-charged for 15' line set with R454B; 208/230 V, 1 Phase, 60 Hz.
• Air handler: 4 Ton multi-positional unit with variable-speed blower, factory-installed TXV, corrosion-resistant all-aluminum coil, washable filter, sloped drain pan; supports electric heat kits up to 20 kW.

Product Highlights

Matched 3.5 ton condenser and 4 ton multi-positional variable-speed air handler certified for R454B refrigerant; condenser pre-charged for a 15' line set; supports optional electric heat kits up to 20 kW.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A5S42AKAWA / FTMA5B48L0CA

Technical Specifications

• Brand: Aciq
• MPN: R5A5S42AKAWA / FTMA5B48L0CA
• Model (Condenser): R5A5S42AKAWA
• Model (Air Handler): FTMA5B48L0CA
• Condenser Tonnage: 3.5 Ton
• Air Handler Tonnage: 4 Ton
• Cooling Capacity (BTU): 42,000
• SEER2 Efficiency: 14.3
• Refrigerant: R454B (A2L)
• Pre-charged Line Set Length: 15'
• Compressor Type: Scroll (single stage)
• Condenser Maximum CFM: 4,900
• Condenser Sound Level (dBA): 75 dBA
• Condenser Motor RPM: 1100
• Condenser Horsepower: 1/5 HP
• Liquid Line Size: 3/8"
• Suction Line Size: 7/8"
• Condenser Electrical: 208/230 V, 1 Phase, 60 Hz
• Air Handler Electrical: 208/230 V, 1 Phase, 60 Hz
• Condenser Max Breaker Size: 40 Amps
• Condenser Min Breaker Size: 22.7 Amps
• Air Handler Current (Amps): 7.1 Amps
• Condenser Dimensions (H x W x D): 38 7/16" x 31 3/16" x 31 3/16"
• Air Handler Dimensions (H x W x D): 53 7/16" x 21 1/8" x 22 1/16"
• Condenser Weight: 215.00 lbs
• Air Handler Weight: 168.00 lbs
• Air Handler Configuration: Multi-Positional
• Air Handler Features: Variable-speed ECM motor; factory-installed TXV; corrosion-resistant all-aluminum coil; washable filter; fully insulated cabinet; sloped drain pan
• Optional Electric Heat Kits: Up to 20 kW (available sizes include 5 kW - 20 kW; specific listings reference 7/10/15/20 kW)
• Certifications: UL Listed (air handler)
• AHRI Number: 216637091
• Features: Certified for R454B (A2L) refrigerant; factory-installed refrigerant leak dissipation on air handler; filter drier included with condenser (field-installed); modular cabinet for multi-positional installation
