Aciq R5A4S48AKANA Variable Speed Air Conditioner Split System 4 Ton (Multi-Positional) FTMA5B48L0CA

Product Description

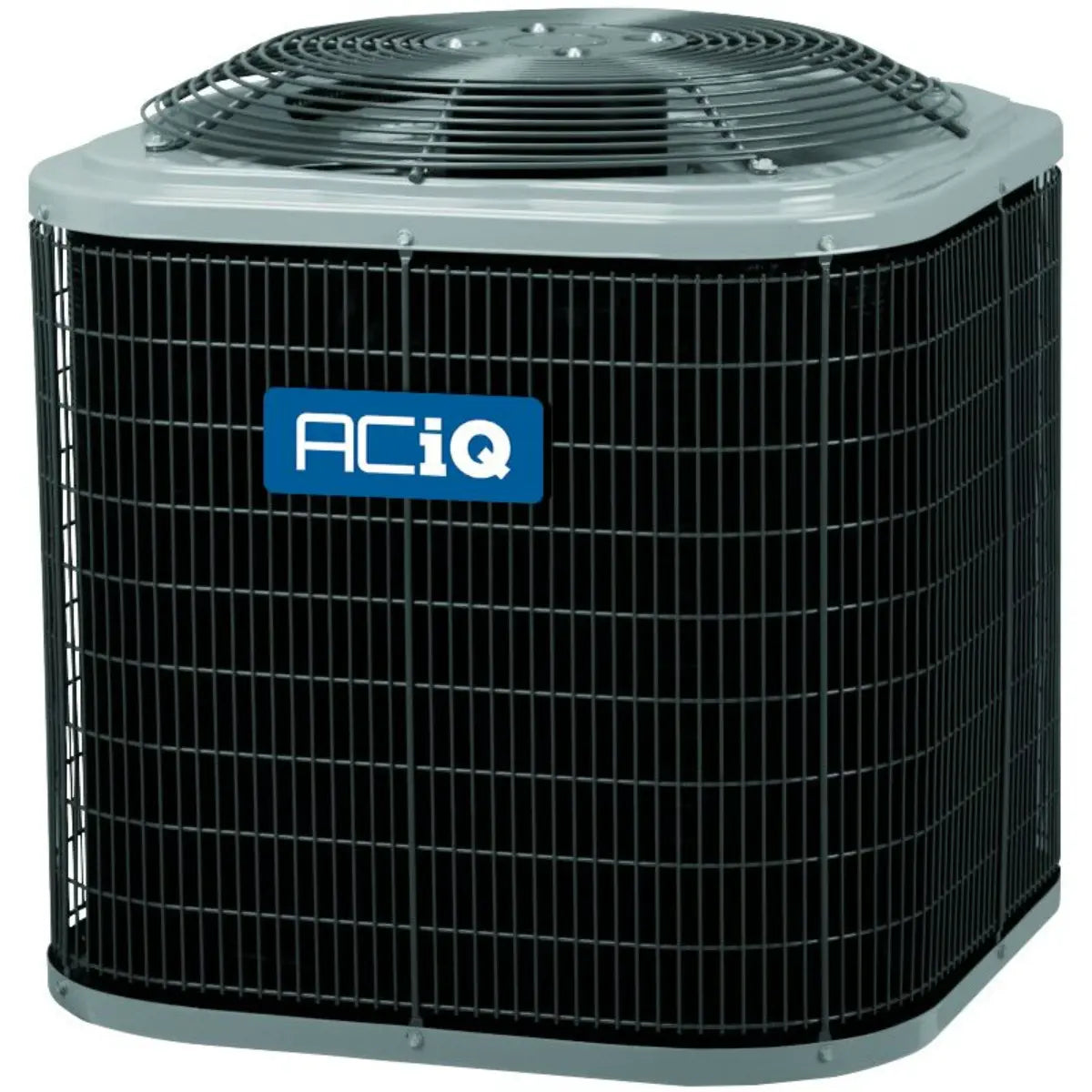

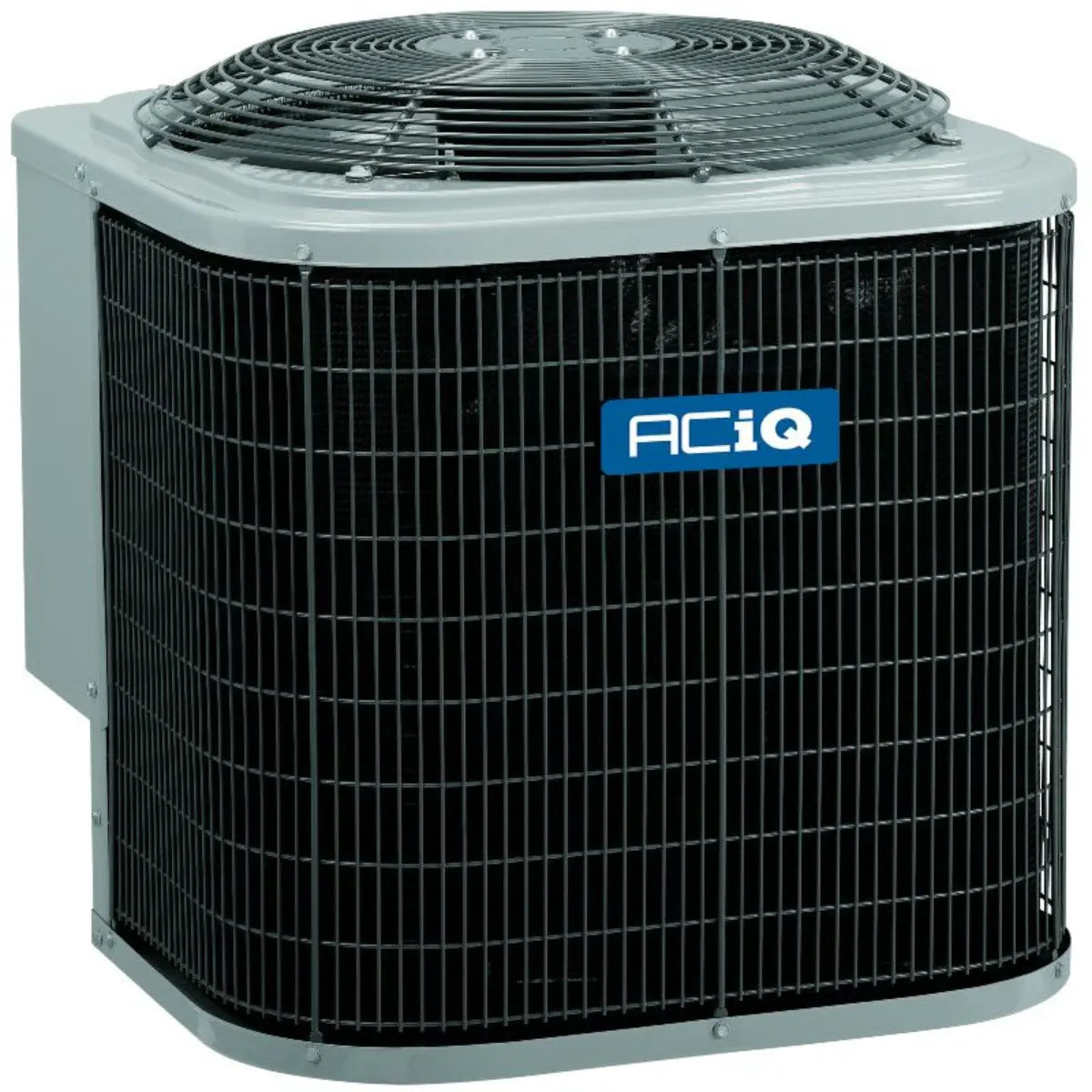

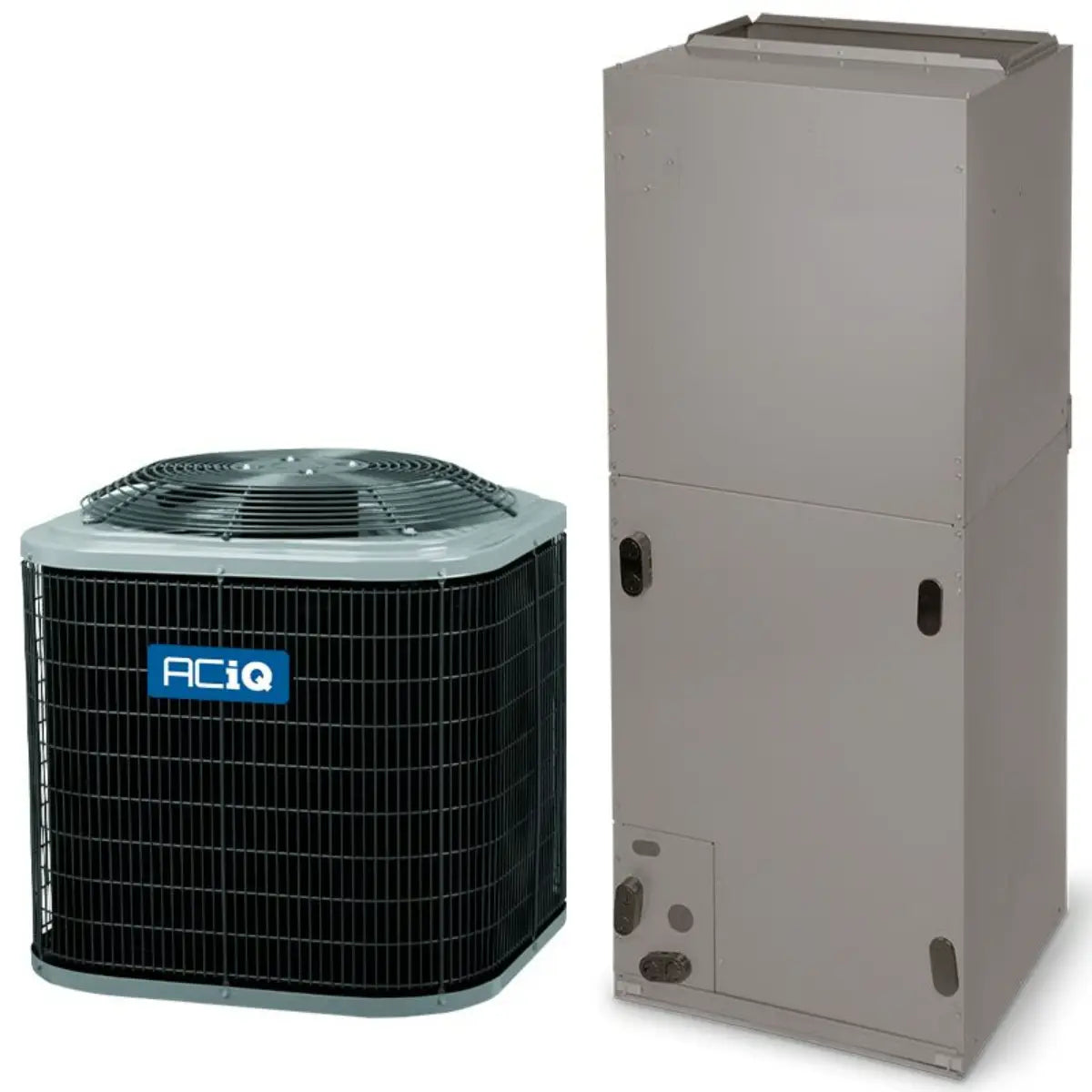

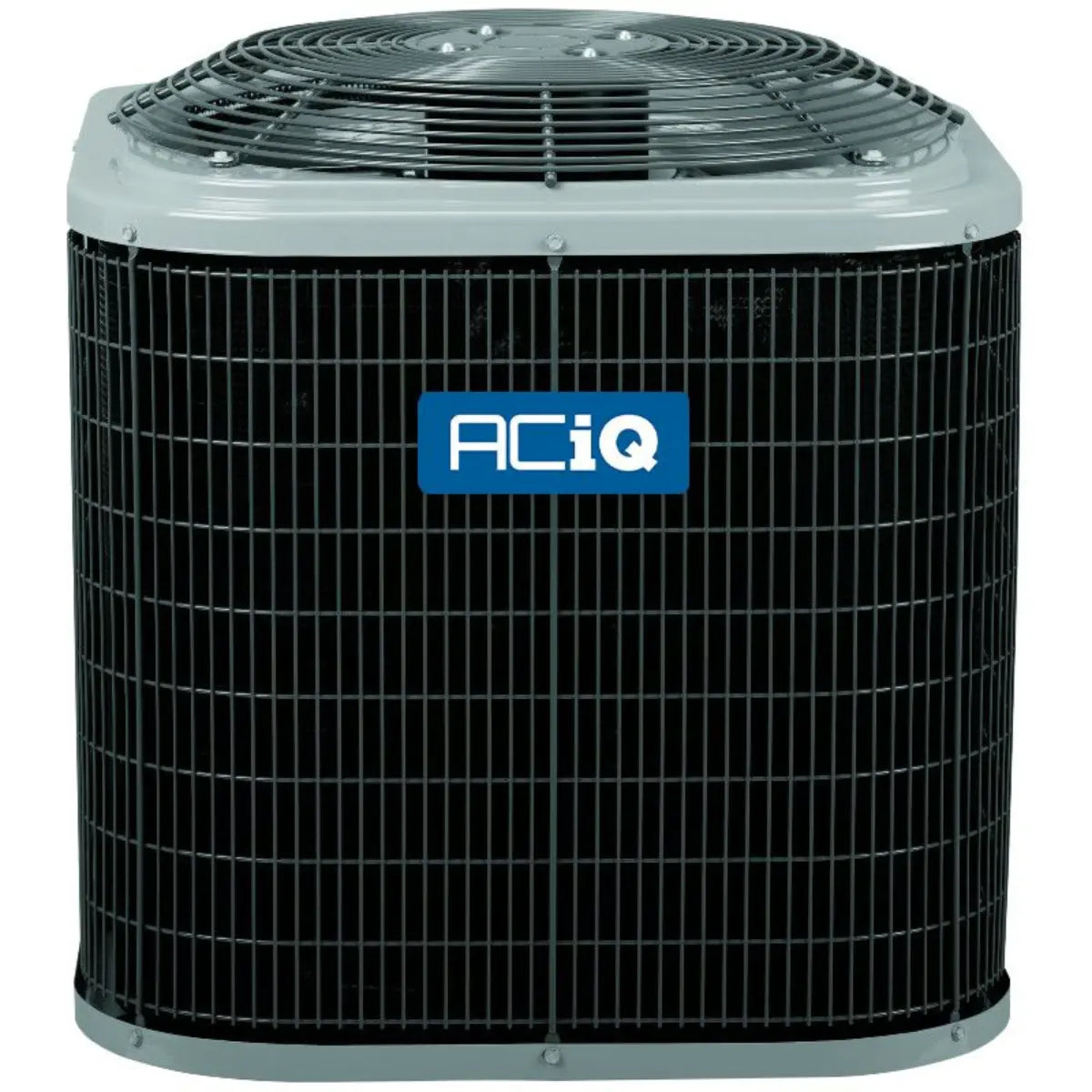

ACiQ R5A4S48AKANA / FTMA5B48L0CA is a matched 4-ton split air conditioning system with a 13.4 SEER2 outdoor condenser and a multi-positional variable-speed air handler. The condenser uses a single-stage scroll compressor and is factory pre-charged for a 15-foot line set with R454B refrigerant, providing 48,000 BTU cooling. The air handler includes a variable-speed blower, thermostatic expansion valve, corrosion-resistant all-aluminum coil, washable filter and a fully insulated cabinet.

• Outdoor condenser: 13.4 SEER2, single-stage scroll compressor, pre-charged for 15-foot line set, 48,000 BTU, R454B refrigerant

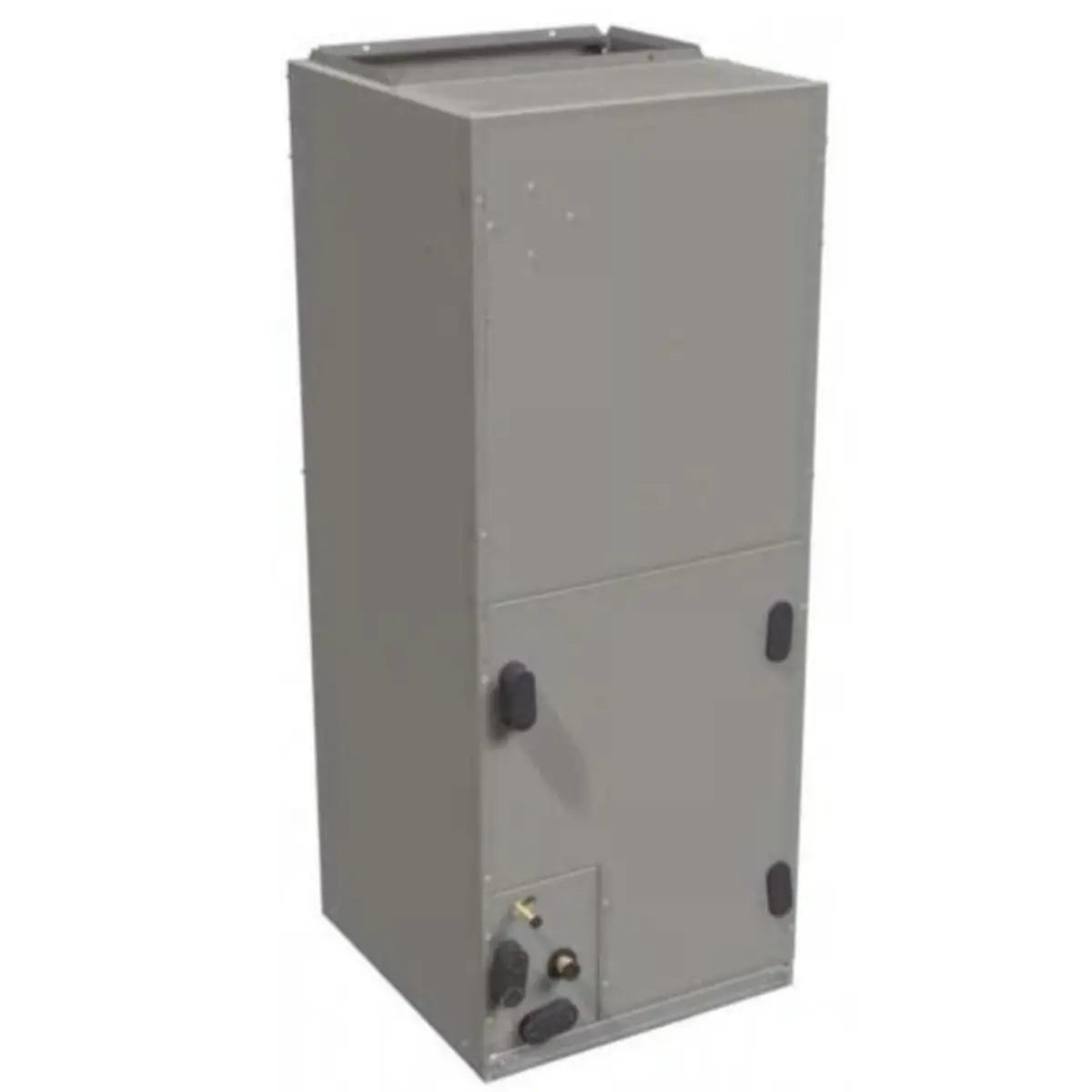

• Indoor air handler: multi-positional variable-speed blower, TXV, corrosion-resistant aluminum coil, washable filter, sloped drain pan
• Electrical and certifications: condenser 208/230V 1 phase 60 Hz, air handler 208/230V 1 ph 60 Hz, UL listed

Product Highlights

Matched 4-ton R454B split system with 13.4 SEER2 condenser and multi-positional variable-speed air handler; factory pre-charged for 15-foot line set.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S48AKANA / FTMA5B48L0CA

Technical Specifications

• Brand: ACiQ
• Model (Condenser): R5A4S48AKANA
• Model (Air Handler): FTMA5B48L0CA
• System Type: Split air conditioner and air handler system
• Tonnage: 4 Ton
• SEER2: 13.4
• Refrigerant: R454B
• Condenser Cooling BTU: 48,000
• Compressor Type: Scroll (single stage)
• Condenser Stages: Single Stage
• Condenser EER2: 11.0-13.5
• Condenser Maximum CFM: 3000
• Condenser Noise Level (dBA): 77
• Input Voltage (Condenser): 208/230 V 1 Phase 60 Hz
• Condenser Max Breaker Size: 40 Amps
• Condenser Min Breaker Size: 22.7 Amps
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 7/8"
• Condenser Connection: Sweat
• Condenser Dimensions (H x W x D): 28.25" x 31.1875" x 31.1875"
• Condenser Weight (lbs): 192.00
• Air Handler Configuration: Multi-Positional
• Air Handler Liquid Line: 3/8"
• Air Handler Suction Line: 7/8"
• Input Voltage (Air Handler): 208/230 V 1 Phase 60 Hz
• Air Handler Max Breaker / Current: 7.1 Amps
• Air Handler Dimensions (H x W x D): 53.4375" x 21.125" x 22.0625"
• Air Handler Weight (lbs): 168.00
• Air Handler Coil: Corrosion-resistant all-aluminum coil
• Air Handler Blower: Variable-speed blower
• TXV: Thermostatic expansion valve (factory installed)
• Filter: Washable filter (air handler); filter drier included for condenser (field-installed)
• Cabinet Features (Air Handler): Fully insulated cabinet; corrosion-free sloped drain pan
• Certifications: UL Listed
• Pre-charge: Factory pre-charged for a 15-foot line set (condenser)
• AHRI Number: 216432797
• Notes / Options: Condenser is cooling-only and requires indoor coil or air handler; supports optional electric heat kits up to 20 kW; accessories available
