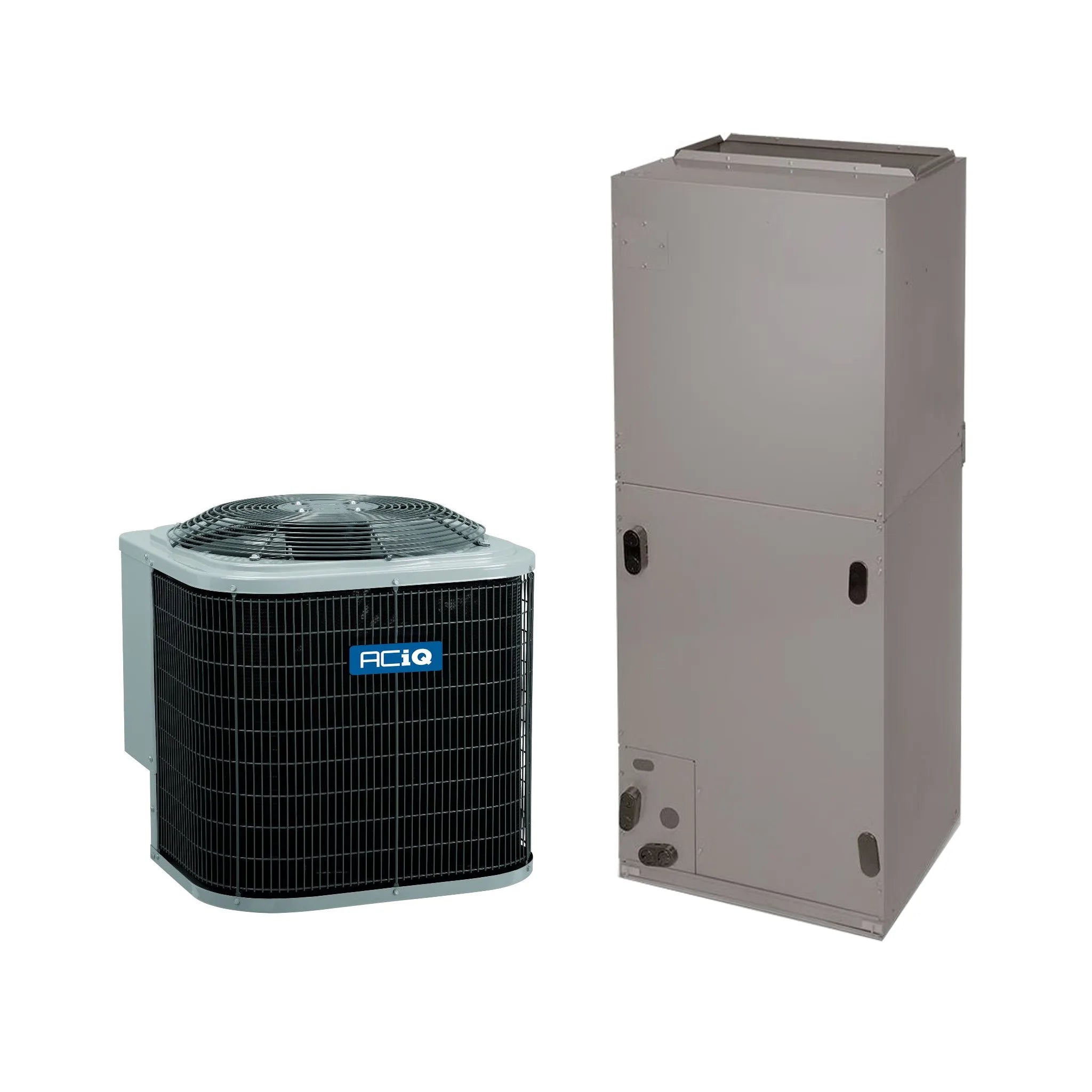

Aciq R5A4S42AKANA / FHMA5X42L0CA 3.5 Ton 13.4 SEER2 Split Air Conditioner System (Multi-Positional)

Product Description

Aciq R5A4S42AKANA / FHMA5X42L0CA is a matched 3.5 ton split air conditioning system consisting of an R5A4S42AKANA condenser and FHMA5X42L0CA multi-positional air handler. The condenser is factory pre-charged with R454B for a 15-foot line set, uses a single-stage scroll compressor and is rated 13.4 SEER2 (42,000 BTU). The air handler includes a factory-installed TXV, a multi 5-speed ECM blower, a 20x20 filter, sweat connections, and supports upflow, downflow, or horizontal installation.

• Condenser: 3.5 ton (42,000 BTU), 13.4 SEER2, single-stage scroll compressor, factory pre-charged with R454B for 15-foot line set
• Air handler: multi-positional 3.5 ton, multi 5-speed ECM blower, factory-installed TXV, 20" x 20" filter, supports optional electric heat kits up to 20 kW
• Electrical and connections: 208/230V 1 Phase 60 Hz, sweat connections, condenser max breaker 30A (min 19.8A), air handler max breaker 15A (min 5.3A)

Product Highlights

Matched 3.5 ton R454B split system with multi-positional 21" air handler, 13.4 SEER2 efficiency, included filter drier, UL listed condenser.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: R5A4S42AKANA / FHMA5X42L0CA

Technical Specifications

• Brand: Aciq
• Model / MPN: R5A4S42AKANA / FHMA5X42L0CA
• System Type: Split air conditioner and air handler system
• Tonnage: 3.5 Ton
• Cooling Capacity (BTU): 42,000
• SEER2 (Efficiency): 13.4
• Refrigerant: R454B
• Factory Refrigerant Charge: Pre-charged for 15-foot line set
• Compressor Type: Scroll (single stage)
• Condenser Stages: Single stage
• Condenser Maximum CFM: 3800
• Air Handler Maximum CFM: 1225
• Blower Motor: Multi-tap 5-speed ECM (air handler)
• Horsepower (Condenser Motor): 1/4 HP
• Horsepower (Air Handler Blower): 1/2 HP
• Electrical (Voltage): 208/230V 1 Phase 60 Hz
• Condenser Max Breaker Size: 30 Amps
• Condenser Min Breaker Size: 19.8 Amps
• Air Handler Max Breaker Size: 15 Amps
• Air Handler Min Breaker Size: 5.3 Amps
• Liquid Line Size: 3/8"
• Suction Line Size: 7/8"
• Connection Type: Sweat
• Air Handler Configuration: Multi-positional (upflow, downflow, horizontal)
• Air Handler Filter Size: 20" x 20"
• Air Handler Dimensions (H x W x D): 49 5/8" x 21 1/8" x 22 1/16"
• Condenser Dimensions (H x W x D): 38 7/16" x 31 3/16" x 31 3/16"
• Condenser Sound Level: 74 dBA
• Condenser Weight: 193 lbs
• Air Handler Weight: 166 lbs
• Filter Drier: Included (field-installed)
• Optional Electric Heat Kits: Up to 20 kW (field-installed)
• Certifications: UL Listed (condenser)
