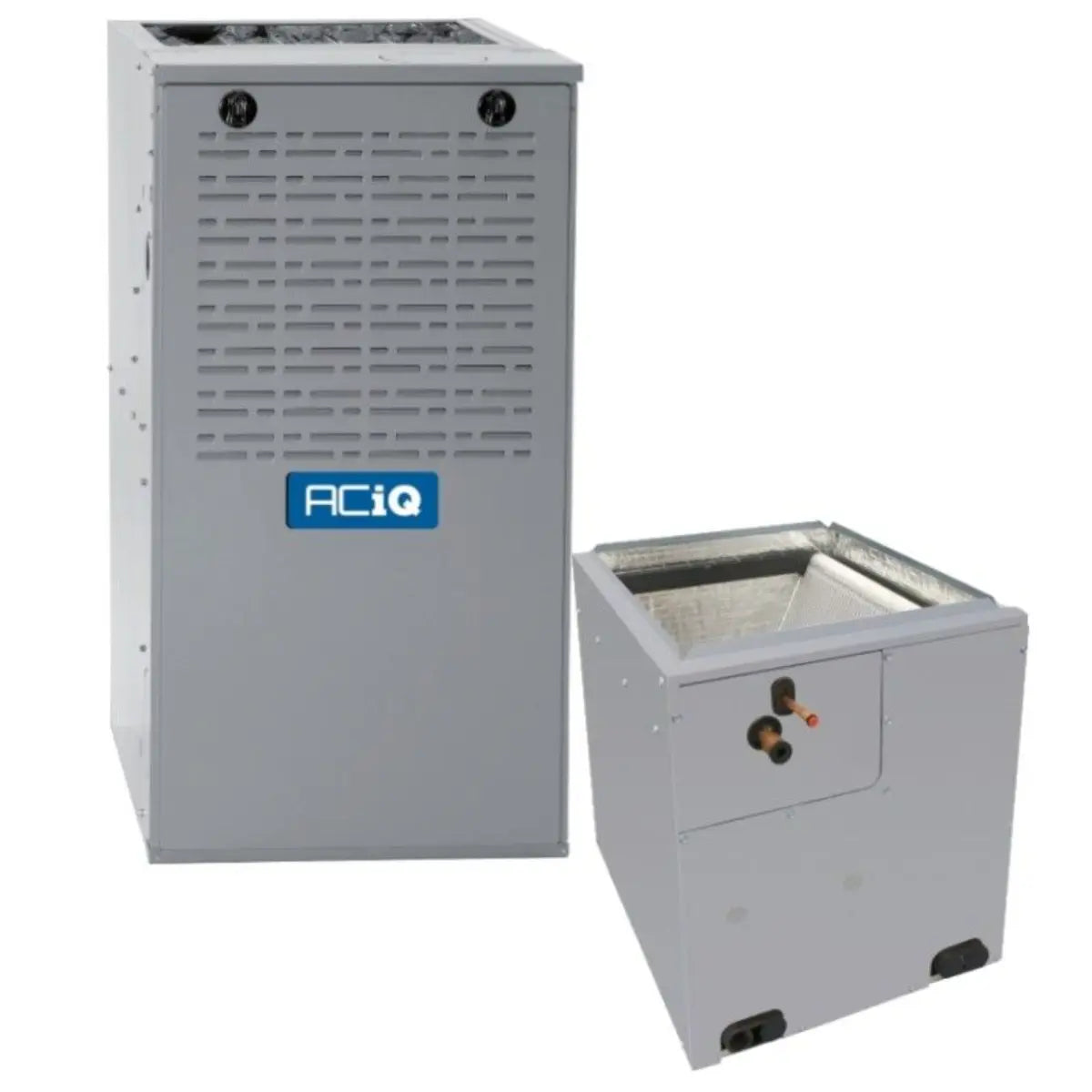

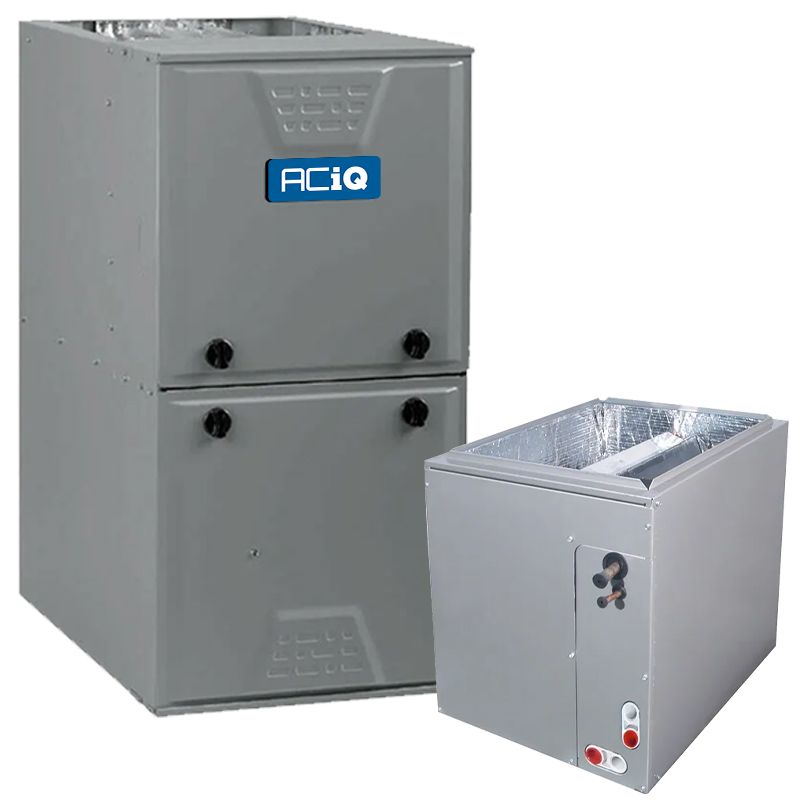

Aciq N96MSN0801716A Furnace and Coil System 80,000 BTU 1.5 Ton (Multi-Positional) EAM5X19M17A

Product Description

The AciQ N96MSN0801716A paired with EAM5X19M17A is a matched furnace and evaporator coil system featuring a 96% AFUE, 80,000 BTU single-stage natural gas furnace and a 1.5 ton multi-positional A-coil with a factory-installed TXV for R454B. The furnace supports upflow, downflow, and horizontal installation, uses an ECM multi-speed blower (maximum 1665 CFM), includes onboard self-diagnostics, is Energy Star certified, and is field-convertible to propane.

• 96% AFUE, 80,000 BTU single-stage natural gas furnace with ECM multi-speed blower
• Multi-positional installation (upflow/downflow/horizontal) with maximum 1665 CFM
• 1.5 ton A-coil with factory-installed TXV for R454B; sweat connections (liquid 3/8 in, suction 5/8 in)

Product Highlights

Matched 96% AFUE furnace and 1.5 ton coil; multi-positional installation; Energy Star certified; factory-installed TXV; field-convertible to propane.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: N96MSN0801716A / EAM5X19M17A

Technical Specifications

• Brand: ACiQ
• Furnace MPN: N96MSN0801716A
• Coil MPN: EAM5X19M17A
• AFUE: 96%
• Heating BTU (input): 80,000 BTU
• Estimated Output BTU: 76,800 BTU (96% of 80,000)
• Burner Stages: Single
• Blower Motor: ECM multi-speed
• Maximum CFM: 1665
• Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Fuel Type: Natural Gas
• Field-Convertible: Propane (with optional LP kit)
• Energy Star: Yes
• Onboard Self-Diagnostics: Yes
• Refrigerant: R454B
• Coil Tonnage: 1.5 Ton
• Coil Style: A-Coil (cased evaporator)
• Coil Connection: Sweat
• Coil Liquid Line: 3/8 in
• Coil Suction Line: 5/8 in
• Coil Factory Features: Factory-installed TXV kit
• Coil Certification: UL Listed
• Furnace Dimensions (H x W x D): 35 in x 17.5 in x 29.5 in
• Coil Dimensions (H x W x D): 25 13/16 in x 17 1/2 in x 20 5/8 in
• Furnace Weight: 146.00 lb
• Coil Weight: 66.50 lb
• AHRI Certificate Number: 213148760
