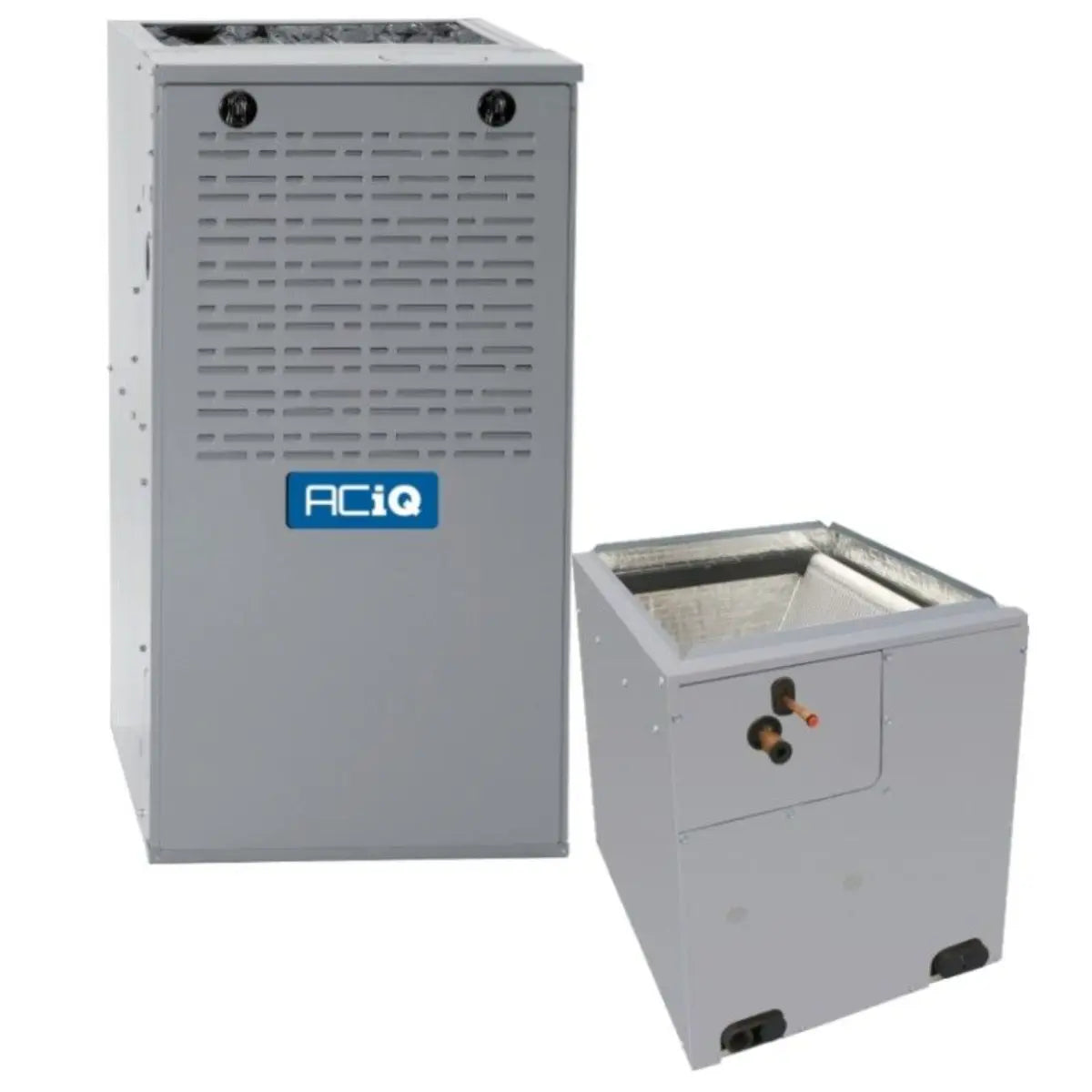

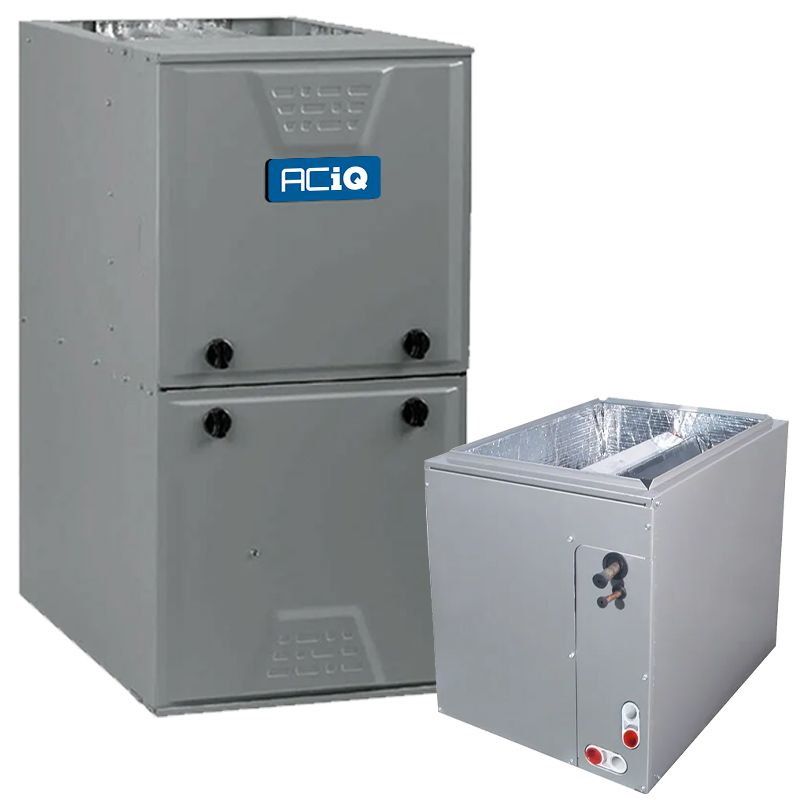

Aciq G96VTN0401712 Furnace and Coil System 40,000 BTU 1.5 Ton (Multi-Positional) EAM5X19M17A

Product Description

AciQ G96VTN0401712 / EAM5X19M17A is a matched furnace and evaporator coil package that pairs a G96VTN0401712 96% AFUE, 40,000 BTU two-stage natural gas furnace with an EAM5X19M17A 1.5 ton multi-positional cased evaporator coil. The furnace features a variable speed blower, on-board self-diagnostics, and multi-positional installation; it is field-convertible to propane and requires plastic/PVC flue venting. The coil includes a factory-installed TXV, sweat connections (3/8" liquid, 5/8" suction), and is R454B refrigerant compatible.

• 96% AFUE, 40,000 BTU two-stage furnace with variable speed blower and maximum 1105 CFM
• 1.5 ton multi-positional cased evaporator coil with factory-installed TXV and R454B refrigerant
• Multi-positional upflow/downflow/horizontal configuration; furnace electrical 120 V, 1 Phase, 60 Hz

Product Highlights

Matched AciQ furnace and 1.5 ton cased coil package, multi-positional installation, R454B compatible

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: G96VTN0401712 / EAM5X19M17A

Technical Specifications

• Brand: AciQ
• System SKU: G96VTN0401712 + EAM5X19M17A
• Furnace MPN: G96VTN0401712
• Coil MPN: EAM5X19M17A
• Furnace AFUE: 96%
• Heating Capacity: 40,000 BTU
• Tonnage: 1.5 Ton
• Blower Motor: Variable Speed (ECM)
• Maximum Airflow: 1105 CFM
• Burner Stages: Two
• Fuel Type: Natural Gas (field-convertible to Propane)
• Electrical: 120 V, 1 Phase, 60 Hz
• Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Exhaust Flue Requirement: Plastic / PVC
• Coil Refrigerant: R454B
• Coil Connection: Sweat
• Coil Liquid Line: 3/8"
• Coil Suction Line: 5/8"
• Coil Style: A-Coil (cased)
• Coil Certification: UL Listed
• AHRI Certificate Number: 213148540
• Furnace Dimensions: 35" x 17.5" x 29.5"
• Coil Dimensions: 25 13/16" x 17.5" x 20 5/8"
• Furnace Weight: 133.00 lbs
• Coil Weight: 66.50 lbs
• Energy Star: Yes
• Factory-Installed Components: TXV kit (on coil)
• Compatibility: Compatible with AC-only or heat pump condensers
