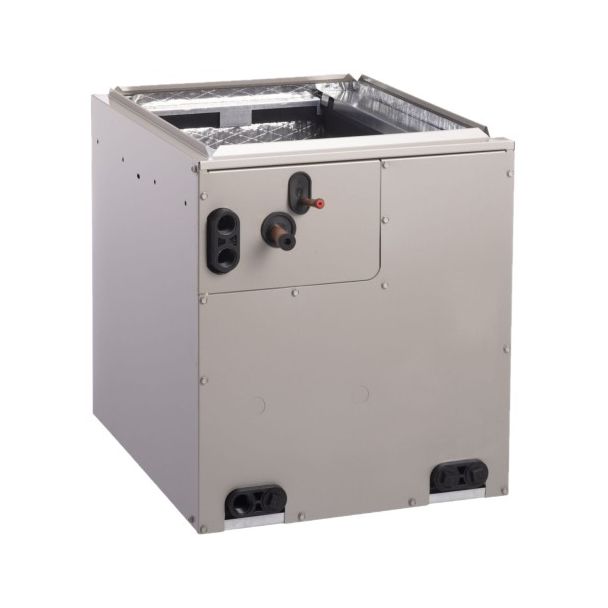

Aciq EVM4X61M24A-COIL00243 Multi-Positional Cased Evaporator Coil 5 Ton (24.5 inches Width)

Product Description

ACiQ EVM4X61M24A-COIL00243 is a 5 ton multi-positional cased evaporator coil designed for residential and light commercial HVAC systems. The unit features a thermostatic expansion valve (TXV) and Power-V V-coil design with corrosion-resistant all-aluminum coil construction, a corrosion-resistant PBT drain pan, and a fully insulated cabinet. It supports upflow, downflow, and horizontal installation, uses R410A refrigerant, and connects via sweat fittings.

• Thermostatic expansion valve (TXV) with Power-V V-coil design for optimized heat transfer and airflow (maximum 2000 CFM).
• Corrosion-resistant all-aluminum coil, PBT drain pan, and fully insulated cabinet; certified to UL and c-UL standards.
• Multi-positional installation (upflow, downflow, horizontal); 5.0 ton capacity; sweat connections; liquid line 3/8" and suction line 7/8".

Product Highlights

Cased aluminum V-coil with TXV; multi-positional installation; 5 ton capacity; R410A refrigerant;

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EVM4X61M24A-COIL00243
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• Manufacturer Part Number: EVM4X61M24A-COIL00243
• Product Type: Cased Evaporator Coil
• Model: EVM4X61M24A
• Configuration: Multi-Positional
• Mounting Type: Upflow, Downflow, Horizontal
• Coil Type: V-Coil
• Coil Material: Aluminum (corrosion-resistant)
• Other Materials: Copper, Steel
• Metering Device: TXV (Thermostatic Expansion Valve)
• Refrigerant: R410A
• Cooling Capacity: 5.0 ton
• Maximum CFM: 2000
• Liquid Line Size: 3/8"
• Suction Line Size: 7/8"
• Connection Type: Sweat
• Dimensions: 35" (H) x 24.5" (W) x 20.625" (D)
• Weight: 58.40 lb
• Drain Pan Material: Polybutylene Terephthalate (PBT)
• Cabinet: Fully insulated
• Style: V-Coil
• Certifications: UL and c-UL
• Country of Origin: China
• Condition: Open box (dented and scratched on casing)
