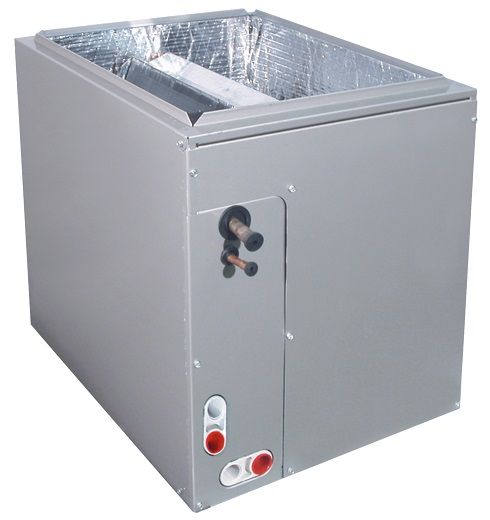

Aciq EAM5X48M24A Multi-Positional Evaporator Cased Coil 4 Ton (24.5 in Width) Replaces EAM4X48L24A

Product Description

The Aciq EAM5X48M24A is a 4-ton multi-positional evaporator cased coil configured for R454B refrigerant and intended for upflow, downflow, or horizontal installation. It includes a factory-installed thermostatic expansion valve (TXV), a fully insulated cabinet, and sweat connections with a 3/8 in liquid line and 7/8 in suction line. Dimensions are 24.5 in W x 20.625 in D x 35 in H and weight is 90.5 lb. Unit is UL Listed and requires pairing with a compatible condenser and blower or furnace.

• Multi-positional installation: upflow, downflow, or horizontal
• Factory-installed TXV; configured for R454B refrigerant
• Dimensions 24.5 in W x 20.625 in D x 35 in H; liquid line 3/8 in; suction line 7/8 in; sweat connection

Product Highlights

4-ton A-coil with factory TXV for R454B systems, UL Listed

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EAM5X48M24A

Technical Specifications

• Brand: Aciq
• MPN: EAM5X48M24A
• Model Number: EAM5X48M24A
• SKU: EAM5X48M24A
• UPC: 647379446109
• Capacity: 4 Ton
• Tonnage: 4 Ton
• Refrigerant: R454B
• Configuration: Multi-Positional
• Installation Orientation: Upflow, Downflow, or Horizontal
• Style: A-Coil
• TXV Included: Yes (factory-installed thermostatic expansion valve)
• Insulation: Fully insulated cabinet
• Connection: Sweat
• Liquid Line: 3/8 in
• Suction Line: 7/8 in
• Dimensions: 24.5 in W x 20.625 in D x 35 in H
• Weight: 90.5 lb
• Certification: UL Listed
• Compatible With: AC-only and heat pump condensers (requires compatible condenser and blower or furnace)
• Replaces: EAM4X48L24A
• Equivalent Models: Carrier CAPMP2414ALA; Tempstar EAM4X24L14A; Bryant CAPMP2414ALA
