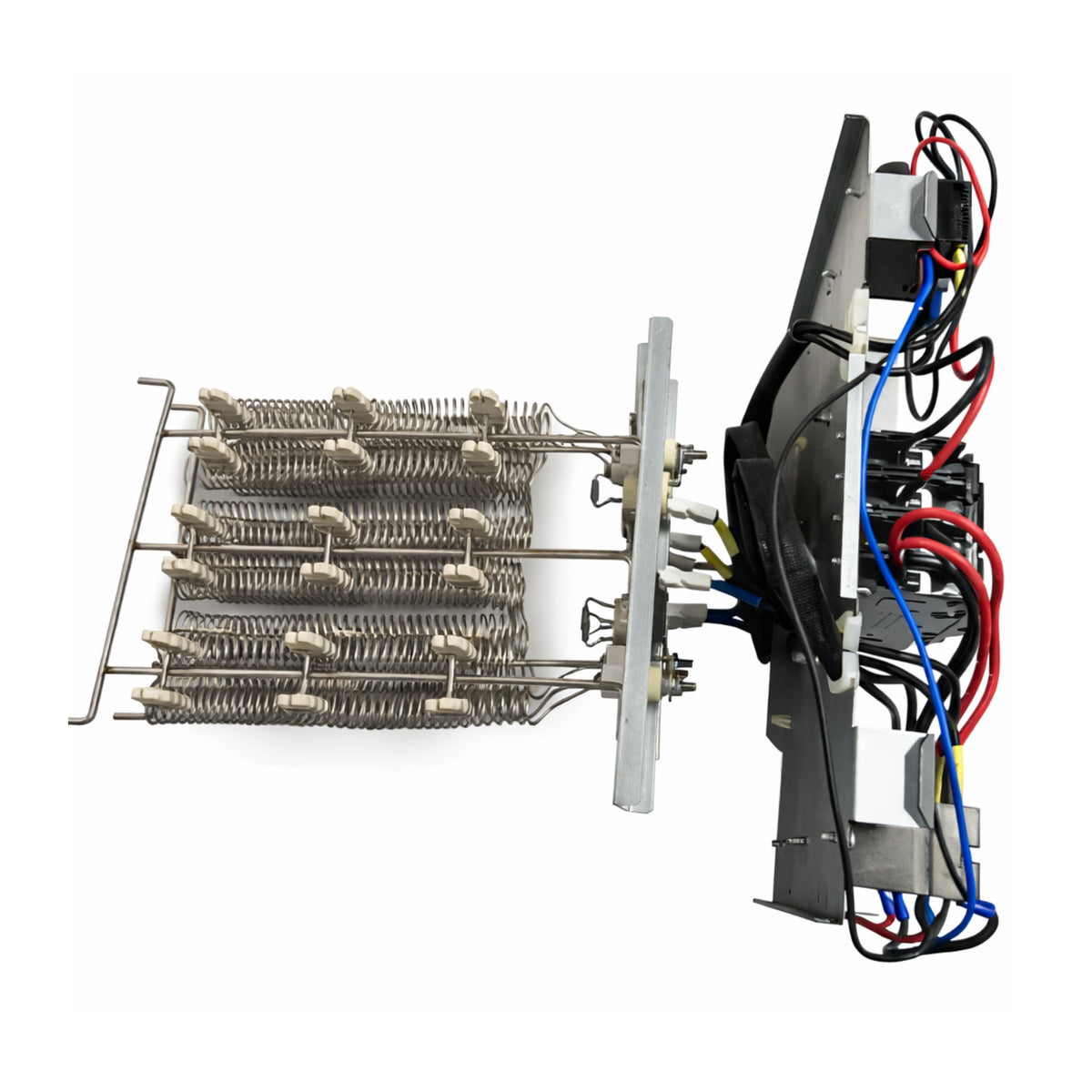

Aciq EAH-15-E-32 Essentials 15 kW Electric Heat Kit (EAH-15-E-32)

Product Description

The ACiQ EAH-15-E-32 is a 15 kW electric heat kit designed for ACiQ Essentials unitary air handlers. It provides 15 kilowatts (51,150 BTU) of supplemental electric heat for ducted heat pump systems and operates on 208/240 V, single-phase, 60 Hz power. The compact module measures 9.84 in H x 13.78 in W x 11.81 in D and is intended for installation in compatible ACiQ air handlers.

• 15 kW electric heating capacity (51,150 BTU) for supplemental heat
• Electrical: 208/240 V, single-phase, 60 Hz; compact dimensions 9.84 x 13.78 x 11.81 in
• Compatible with ACiQ Essentials unitary air handlers: ACIQ-30-AH-E-32, ACIQ-36-AH-E-32, ACIQ-48-AH-E-32, ACIQ-60-AH-E-32

Product Highlights

15 kW supplemental electric heat module for ACiQ Essentials unitary air handlers.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EAH-15-E-32

Technical Specifications

• Brand: ACiQ
• Manufacturer Part Number: EAH-15-E-32
• Heating Capacity (BTU): 51,150 BTU
• Electric Heat (kW): 15 kW
• Input Voltage: 208/240 V, 1 Phase, 60 Hz
• Dimensions: 9.84 in H x 13.78 in W x 11.81 in D
• Weight: 8.42 lb
• Compatible Models: ACIQ-30-AH-E-32; ACIQ-36-AH-E-32; ACIQ-48-AH-E-32; ACIQ-60-AH-E-32
• SKU: EAH-15-E-32
