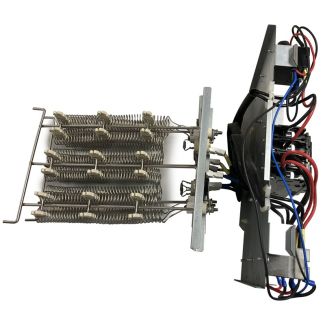

Aciq EAH-10-P 10kw Electric Heater Coil Air Handler

Product Description

The ACIQ EAH-10-P is a 10-kilowatt electric heater coil designed for use in ACiQ unitary ceiling-mount air handlers. It adds straight electric heating capability to multi-tenant style air handler installations where a gas or hydronic heat source is not present or preferred. Licensed HVAC technicians install this coil as an integrated component inside the air handler cabinet, providing resistance heat that is distributed through the existing duct system. The EAH-10-P is a factory-style component suited for light commercial and multi-tenant residential applications requiring a compact, self-contained electric heat source.

This heater coil is designed specifically for use with ACiQ ceiling-mount air handler units in multi-tenant and light commercial applications. It slots into compatible ACiQ unitary air handler cabinets to deliver electric resistance heat without requiring a separate furnace or heat pump. The installation scenario is typical of apartment buildings, condominiums, and light commercial spaces where individual zone heating is controlled through ceiling-mounted equipment. Compatible air handlers include the ACIQ-18W-PB, ACIQ-24W-PB, ACIQ-30W-PB, and ACIQ-36W-PB.

Key Features

• 10-kilowatt electric resistance heating output
• Designed for integration into ACiQ unitary ceiling-mount air handler cabinets
• Enables straight electric heat in multi-tenant and light commercial applications
• OEM-style fitment for confirmed compatible ACiQ air handler models
• No external furnace or supplemental heat source required

Compatibility

Compatible with the following ACiQ ceiling-mount air handlers: ACIQ-18W-PB, ACIQ-24W-PB, ACIQ-30W-PB, and ACIQ-36W-PB.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the air handler before accessing the cabinet or handling the heater coil. Verify that the air handler electrical supply circuit is rated to support the additional 10-kilowatt load before energizing. Follow all applicable local and NEC requirements for electric heating equipment installation and overcurrent protection.

Technical Specifications

• Heating Capacity: 10 kilowatts
• Heater Type: Electric resistance coil
• Application: Ceiling-mount unitary air handler

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EAH-10-P
