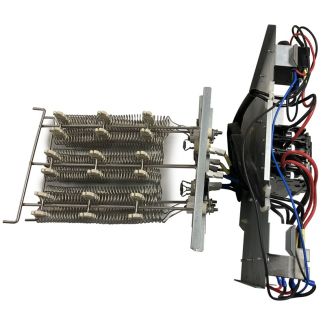

Aciq EAH-05-P 5kw Electric Heater Coil Air Handler

Product Description

The ACIQ EAH-05-P is a 5-kilowatt electric heater coil designed for integration into ACiQ unitary ceiling-mount air handlers. It provides straight electric heating capability to multi-tenant style air handling systems where a gas or hydronic heat source is not part of the design. Licensed HVAC technicians install this component as an add-on heating element within compatible ACiQ air handler cabinets. The coil fits directly into the air handler's heater section, converting the unit from cooling-only to a combined heating and cooling system without requiring external ductwork modifications.

This heater coil is suited for residential and light commercial multi-tenant installations that use ceiling-mount air handlers. It is engineered specifically for ACiQ unitary air handler models, making it the correct replacement or add-on component when electric heat is required in a ceiling-mount configuration. Installations are common in apartments, condominiums, and small commercial spaces where individual zone electric heating is preferred over central gas or heat pump systems.

Key Features

• 5-kilowatt electric heating output for straight electric heat in ceiling-mount air handlers
• Designed as a factory-fit add-on coil for ACiQ unitary air handler cabinets
• Enables electric heating capability in cooling-only air handler configurations
• Suited for multi-tenant residential and light commercial ceiling-mount applications

Compatibility

Compatible with the following ACiQ air handler models: ACIQ-18W-PB, ACIQ-24W-PB, ACIQ-30W-PB, and ACIQ-36W-PB.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the air handler before accessing the heater section or handling the coil assembly. Follow applicable local electrical codes and NEC requirements for electric heating equipment, including proper wire sizing and overcurrent protection. Do not energize the heater coil without confirming adequate airflow through the air handler to prevent overheating.

Technical Specifications

• Heating Capacity: 5 kilowatts
• Heater Type: Electric heater coil
• Application: Ceiling-mount air handler

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EAH-05-P
