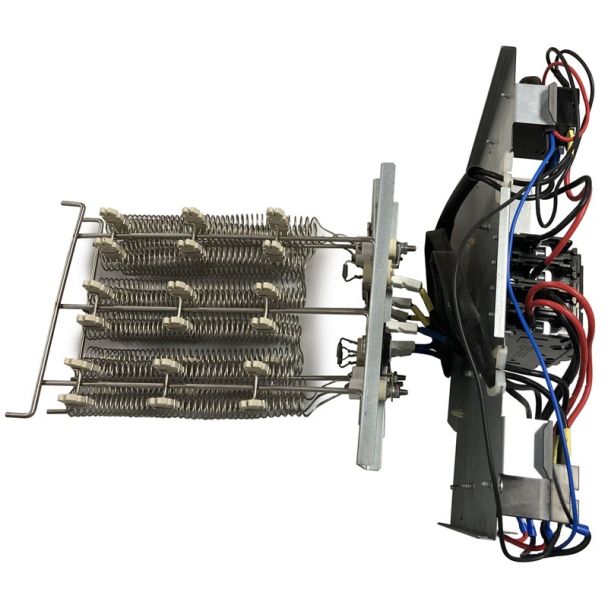

Aciq EAH-03-P 3 Kilowatt Heater Coil for Ceiling Mount Air Handler (3 kW)

Product Description

The Aciq EAH-03-P is a 3 kW heater coil designed for ceiling-mount unitary air handlers, delivering approximately 10,200 BTU of straight electric heat. It operates on 208/230 V, single-phase, 60 Hz and weighs about 4.00 lb. The coil is intended for compatibility with Aciq-18W-PB, Aciq-24W-PB, Aciq-30W-PB, and Aciq-36W-PB models and provides supplemental electric heating in ducted systems for multi-tenant installations.

• 3 kW electric heater coil producing approximately 10,200 BTU
• Electrical rating: 208/230 V, single-phase, 60 Hz; unit weight about 4.00 lb
• Compatible with Aciq-18W-PB, Aciq-24W-PB, Aciq-30W-PB, and Aciq-36W-PB ceiling-mount air handlers

Product Highlights

3 kW electric heater coil; ~10,200 BTU output; 208/230 V single-phase operation; compatible with Aciq ceiling-mount air handlers

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: EAH-03-P

Technical Specifications

• Brand: Aciq
• MPN: EAH-03-P
• Power: 3 kW
• Heating capacity: 10,200 BTU
• Input Voltage: 208/230 V
• Phase: Single phase
• Frequency: 60 Hz
• Weight: 4.00 lb
• Application: Ceiling-mount unitary ducted air handlers
• Compatible air handlers: Aciq-18W-PB; Aciq-24W-PB; Aciq-30W-PB; Aciq-36W-PB
• Product ID: 217030
