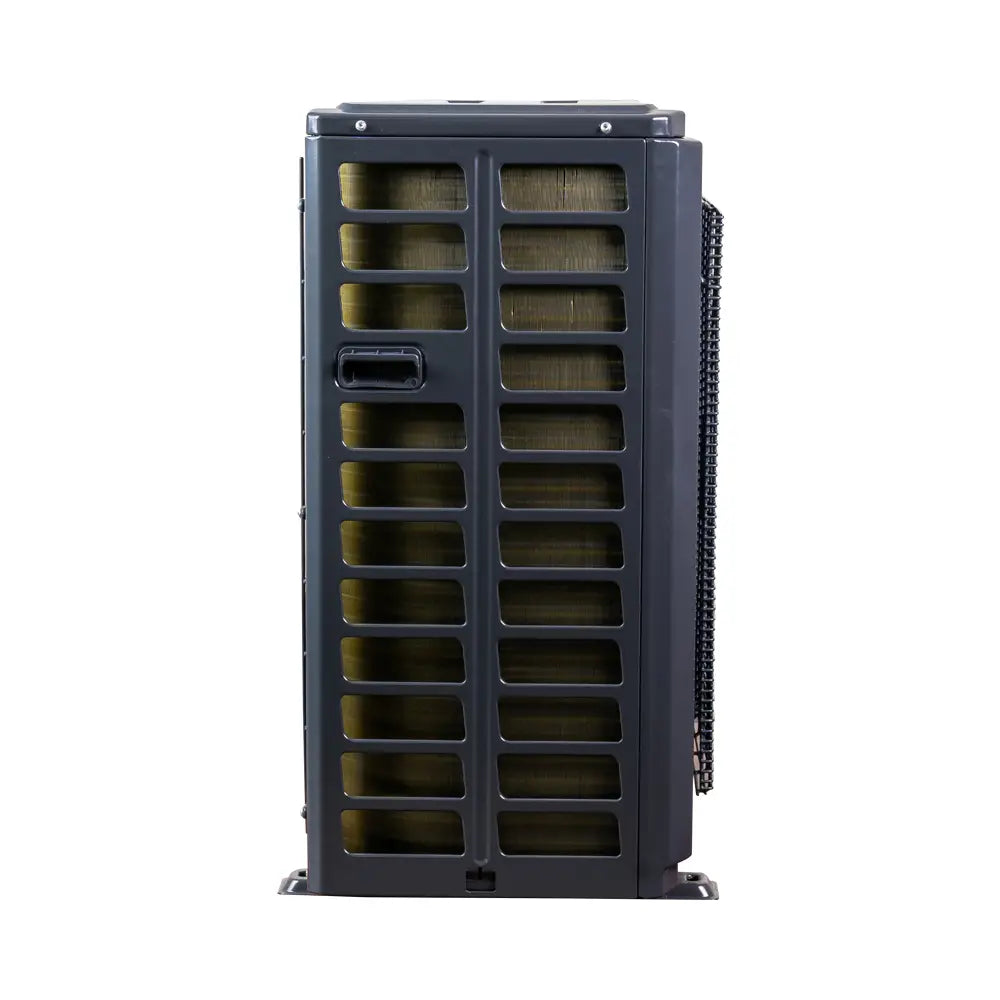

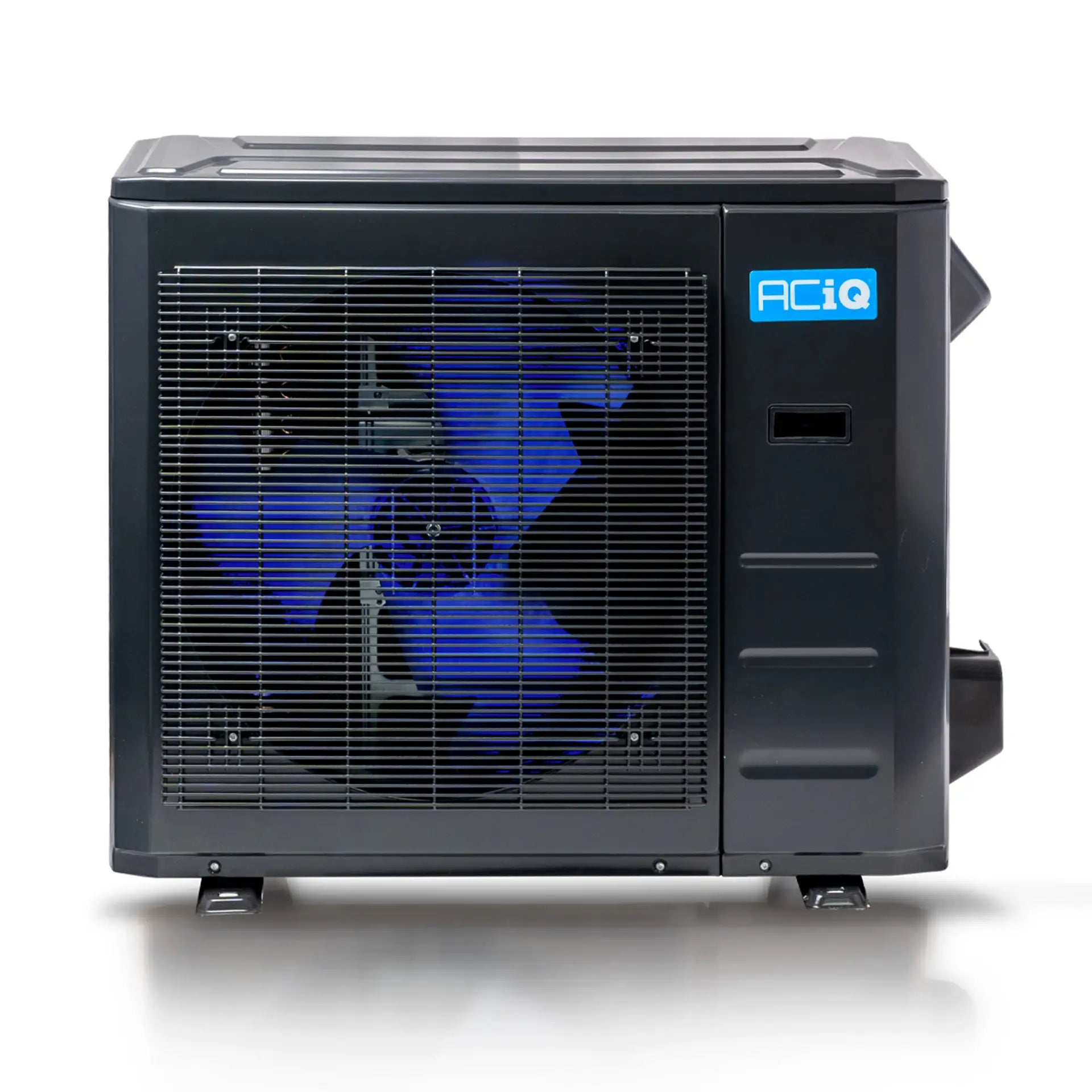

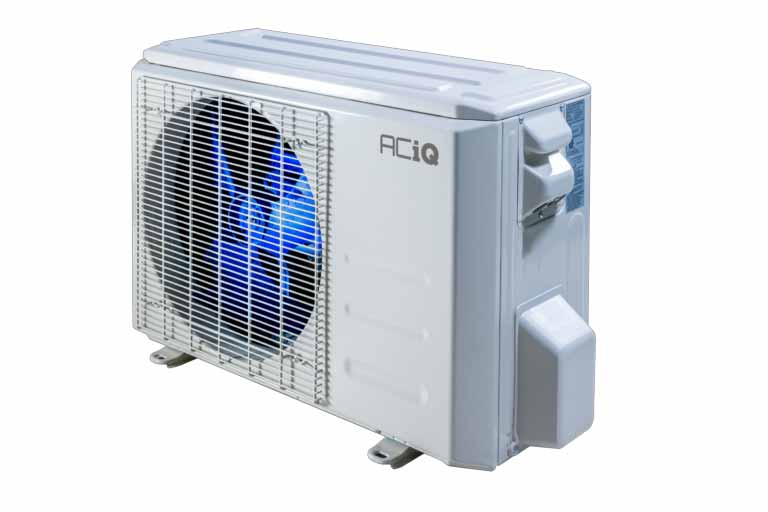

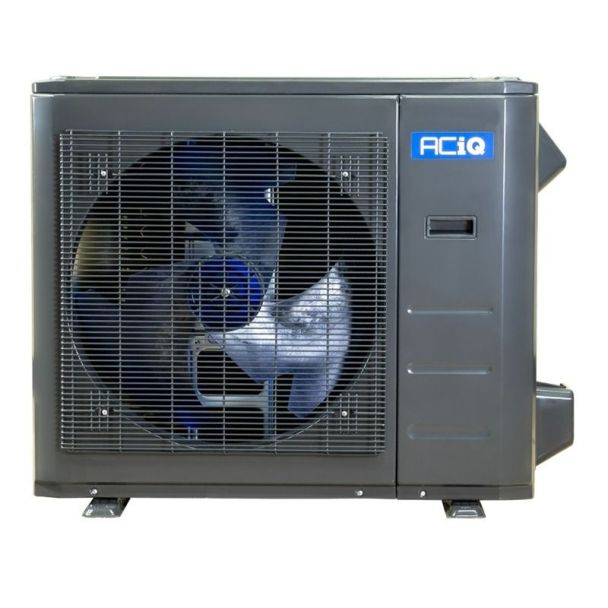

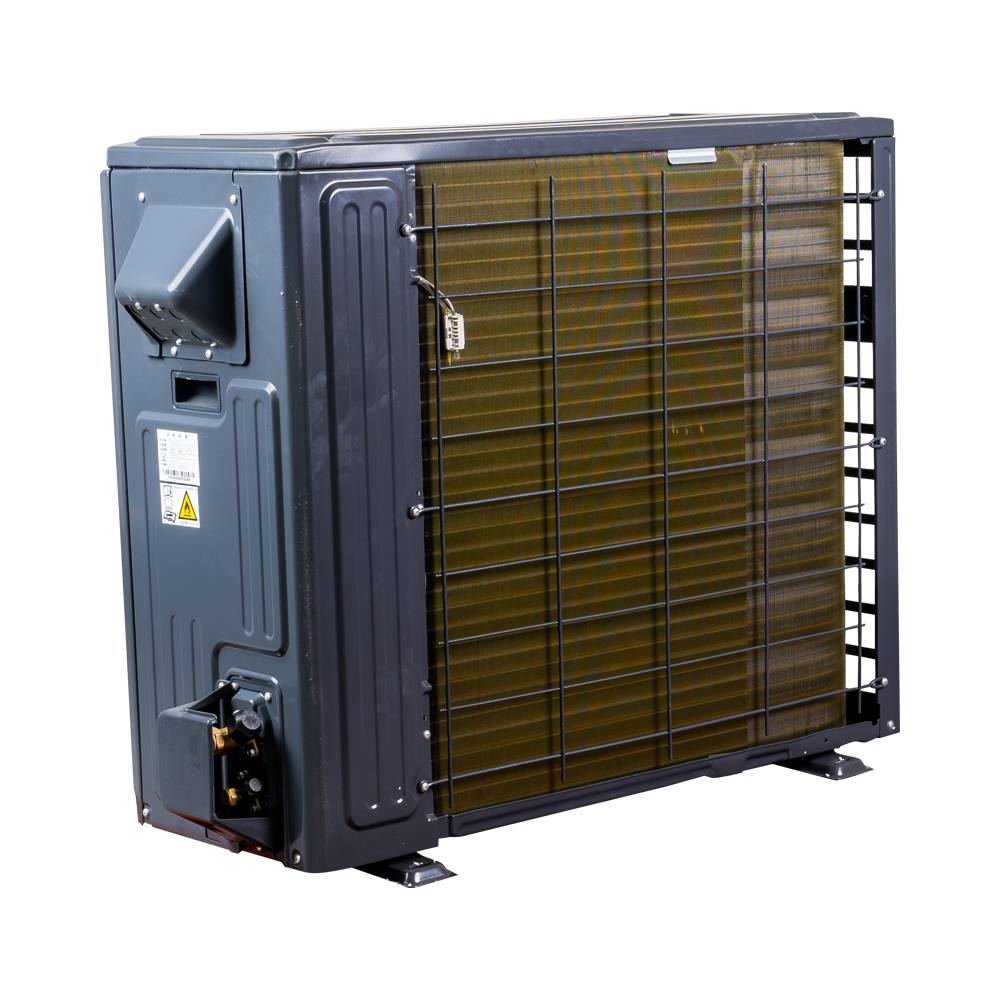

Aciq Aciq-54-AC-B High Efficiency Air Conditioner Condenser 54,000 BTU (4.5 Ton)

Product Description

The Aciq ACIQ-54-AC-B is a 4.5 ton, 54,000 BTU high-efficiency air conditioner condenser that uses R454B refrigerant and operates on 208-230V single-phase power. It provides efficient cooling across a wide outdoor temperature range from -13°F to 122°F and produces approximately 65 dB(A) during operation. The unit includes gold fin coil protection and leak detection.

• 54,000 BTU cooling capacity, 4.5 ton nominal rating with 14.3 SEER efficiency
• Operates on 208-230V single-phase 60 Hz power; designed for replacement and hybrid system applications
• Gold fin condenser coil coating, leak detection, quiet operation (~65 dB(A))

Product Highlights

54,000 BTU (4.5 ton), 14.3 SEER, R454B refrigerant, rotary compressor, 208-230V 1Ph 60 Hz

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-54-AC-B

Technical Specifications

• Model: ACiQ-54-AC-B
• MPN: ACIQ-54-AC-B
• Brand: Aciq
• Tonnage: 4.5 Ton
• Cooling Capacity: 54,000 BTU
• SEER: 14.3
• EER: 9
• Compressor Type: Rotary
• Condenser Stages: Variable speed (inverter)
• Refrigerant: R454B
• Input Voltage: 208-230V
• Phase: Single phase
• Frequency: 60 Hz
• Liquid Line Size: 3/8"
• Suction Line Size: 3/4"
• Maximum CFM: 3037
• Sound Level: 65 dB(A)
• Max Breaker Size: 40 Amps
• Min Breaker Size: 36 Amps
• Operating Temperature Range: -13°F to 122°F
• Dimensions (W x D x H): 38.58" x 16.34" x 38.39"
• Operating Mode: Cooling
