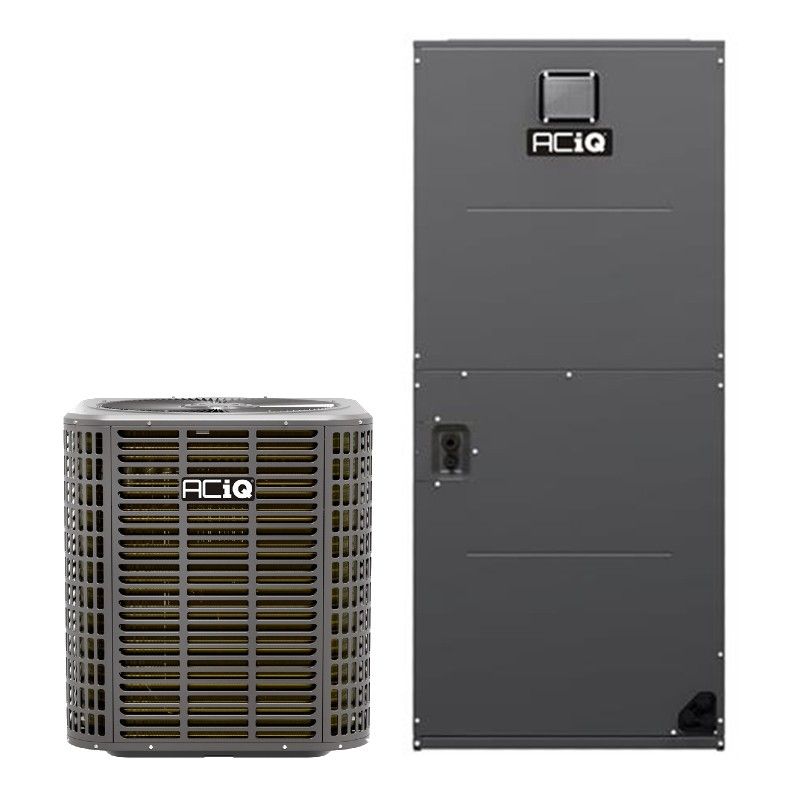

Aciq Aciq-48TD-HP32 Central Heat Pump Split System 4 Ton Upflow/Horizontal-Right Aciq-48TD-AH32

Product Description

The ACiQ ACIQ-48TD-HP32 / ACIQ-48TD-AH32 is a 4-ton all-electric inverter heat pump split system with a 48,000 BTU variable-speed rotary compressor condenser pre-charged with R32 refrigerant and a matching multi-speed constant torque air handler. The system delivers SEER2 15.2, HSPF2 8.1 and EER2 9 for cooling and heating, supports upflow or horizontal-right installation, and operates on 208/230V single-phase power.

• 48,000 BTU cooling and heating capacity; 4 ton system with SEER2 15.2, HSPF2 8.1, EER2 9
• Pre-charged R32 (A2L) refrigerant (123.5 oz) with variable-speed rotary compressor; condenser sound level 69 dBA
• Air handler 56" x 24.5" x 21" with 1/2 HP blower, up to 1500 CFM, filter size 20 x 22 inches; compatible with optional electric heat kits

Product Highlights

4 ton inverter heat pump split system, 48,000 BTU, R32 refrigerant, SEER2 15.2, upflow or horizontal-right air handler

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-48TD-HP32 / ACIQ-48TD-AH32

Technical Specifications

• Brand: ACiQ
• Model (Condenser): ACIQ-48TD-HP32
• Model (Air Handler): ACIQ-48TD-AH32
• System Tonnage: 4 Ton
• Cooling Capacity: 48,000 BTU
• Heating Capacity: 48,000 BTU
• SEER2: 15.2
• HSPF2: 8.1
• EER2: 9
• Compressor Type: Rotary (variable-speed)
• Refrigerant: R32 (A2L)
• Refrigerant Charge: 123.5 oz
• Condenser Sound Level: 69 dBA
• Air Handler Sound Level: 60 dBA
• Maximum CFM (Air Handler): 1500 CFM
• Air Handler Horsepower: 1/2 HP
• Filter Size (Air Handler): 20 x 22 inches
• Liquid Valve Size: 3/8"
• Suction Valve Size: 7/8"
• Input Voltage: 208/230V 1 Phase 60Hz
• Phase: Single Phase
• Max Breaker Size: 60 Amps
• Min Breaker Size: 35 Amps
• Condenser Operating Temperature Range (Heating): -4
