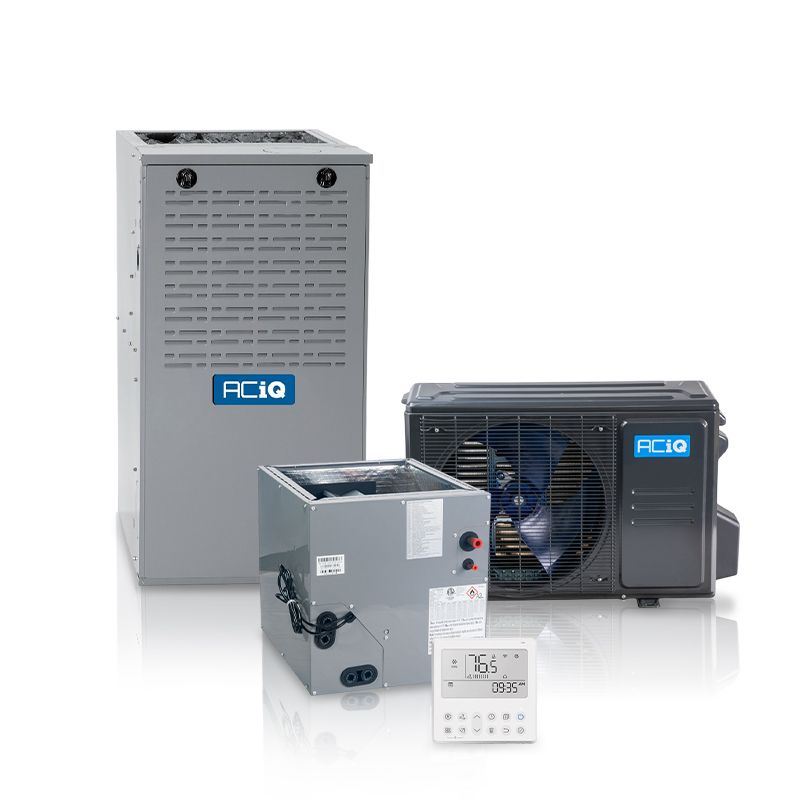

Aciq Aciq-18-EHPD Hybrid 1.5 Ton 18,000 BTU (Multi-Positional) G80CTL0701412

Product Description

ACIQ ACIQ-18-EHPD is a hybrid HVAC system combining an inverter R454B heat pump condenser, ACIQ-24-ACL-14-B multi-positional evaporator coil, and G80CTL0701412 80% AFUE gas furnace. The system provides variable-output cooling and heating with an inverter twin rotary compressor, a communicating variable-speed ECM blower, and a two-stage furnace burner. The coil is factory-equipped with a TXV and the condenser supports adaptive sizing and pre-charged R454B refrigerant.

• Inverter variable-speed condenser: 18,000 BTU cooling, SEER2 18.8, HSPF2 9.1, EER2 11.0, R454B refrigerant
• Multi-positional A-coil with factory-installed TXV, 3/8" liquid and 3/4" suction line connections
• 80% AFUE two-stage gas furnace with variable-speed ECM blower, 66,000 BTU input / 54,000 BTU output

Product Highlights

Hybrid inverter heat pump condenser (R454B), multi-positional evaporator coil, and 80% AFUE two-stage gas furnace with variable-speed blower.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: ACIQ-18-EHPD / ACIQ-24-ACL-14-B / G80CTL0701412

Technical Specifications

• Brand: ACIQ
• Model / Package: ACIQ-18-EHPD / ACIQ-24-ACL-14-B / G80CTL0701412
• Product ID: 217495
• Condenser MPN: ACIQ-18-EHPD
• Coil MPN: ACIQ-24-ACL-14-B
• Furnace MPN: G80CTL0701412
• Furnace AFUE: 80%
• Furnace Input BTU: 66,000
• Furnace Output BTU: 54,000
• Furnace Blower Motor: Variable speed ECM
• Furnace Maximum CFM: 1395
• Furnace Configuration: Multi-positional (Upflow/Downflow/Horizontal)
• Furnace Input Voltage: 115V, 1 phase, 60 Hz
• Furnace Burner Stages: Two
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field convertible to propane with LP kit)
• Furnace Dimensions (H x W x D): 33.3333333333" x 14.1875" x 29.0"
• Furnace Weight: 107 lbs
• Condenser Cooling Capacity: 18,000 BTU
• Condenser Heating Capacity: 18,000 BTU
• Condenser SEER2: 18.8
• Condenser HSPF2: 9.1
• Condenser EER2: 11.0
• Condenser Compressor Type: Rotary (variable inverter twin rotary)
• Condenser Refrigerant: R454B
• Condenser Refrigerant Charge: 51.15 oz.
• Condenser Input Voltage: 208/230V, 1 phase, 60 Hz
• Condenser Dimensions (H x W x D): 21.81" x 31.69" x 12.99"
• Condenser Weight: 83.77 lbs
• Coil Configuration: Multi-positional (A-Coil)
• Coil Refrigerant: R454B
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Dimensions (H x W x D): 18.0" x 14.5" x 21.0"
• Coil Weight: 50 lbs
• Included / Required Notes: Furnace requires metal flue venting (80% AFUE). Coil cannot operate independently; requires compatible condenser and blower/furnace.
