ACIQ ACIQ-09W-HH-MD 9,000 BTU ACiQ Platinum Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V

Product Description

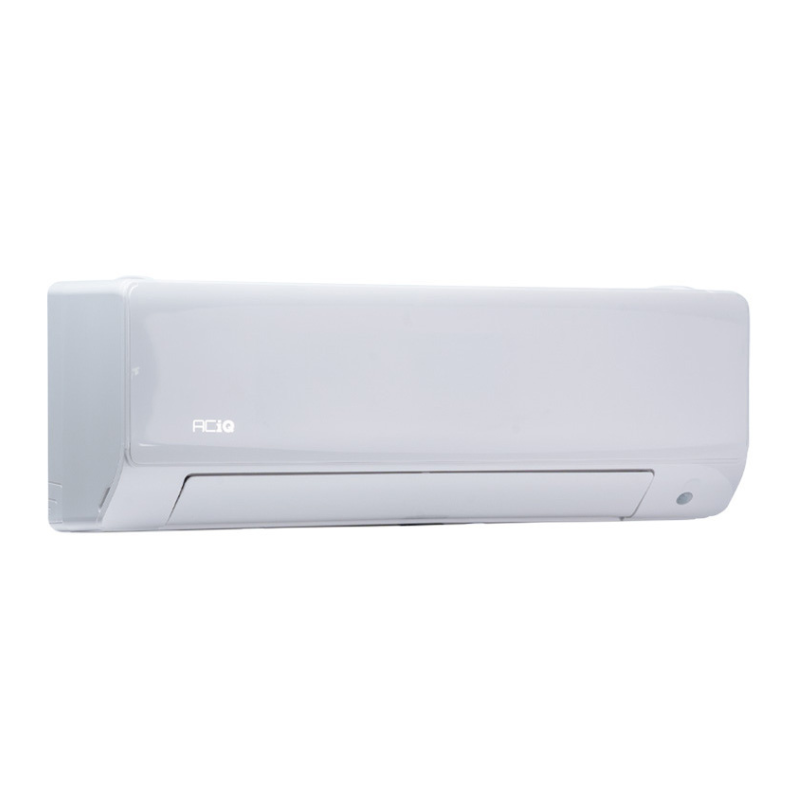

The ACIQ-09W-HH-MD is a 9,000 BTU wall mount mini split air handler from ACIQ. This unit is designed for use with both the ACIQ Multizone or Platinum Single Zone condenser, providing efficient heating and cooling capabilities for small to medium-sized rooms.

• WiFi compatible for smart home integration.
• Enhanced modes such as Intelligent Sleep and Power Save.
• Easy maintenance and installation for quick setup.

Product Highlights

The ACIQ air handler features a soft LED display, allowing users to view the room's temperature and mode settings quickly. The unit supports self-diagnosis, helping to ensure long-term performance. Included smart remote offers convenience and notification management.

Product Information

Standard Information

• Brand: ACIQ
• Model: ACIQ-09W-HH-MD

Technical Specifications

• Cooling BTU: 9,000 BTU
• Heating BTU: 9,000 BTU
• Maximum CFM: Up to 441.4 CFM
• Decibel Level: As low as 19.5 dBA
• Electric Heat: Heat Pump
• Refrigerant: R454B
• Liquid Line: 1/4 inches
• Suction Line: 3/8 inches
• Electrical: 208/230V, 1 Phase, 60 Hz
• Phase: Single Phase
• Mini Split Type: Wall Mounted
• Zone Compatibility: Multi Zone, Single Zone
• Height: 11.76 inches
• Width: 33.40 inches
• Depth: 9.18 inches
• Warranty: 7 Years Parts with Online Registration
