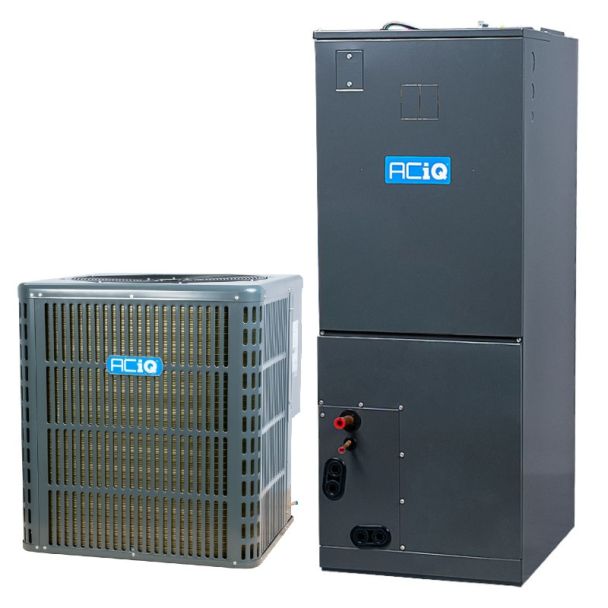

Aciq AC-I-48AC14 4 Ton 14.3 SEER2 Air Conditioner Split System (Multi-Positional) AC-I-4860ACL-21

Product Description

The Aciq AC-I-48AC14 split air conditioning system pairs a 4 ton outdoor condenser with a multi-positional indoor air handler, providing a matched 14.3 SEER2 rating and using R32 refrigerant. The condenser delivers 48,000 BTU cooling with a rotary compressor capable of high-ambient operation up to 131°F, while the air handler uses a variable speed ECM blower with a maximum 1450 CFM and accepts optional electric heat kits.

• Multi-positional air handler (upflow, downflow, horizontal left/right) with variable speed ECM blower and maximum 1450 CFM; filter size 23" x 20".
• Outdoor condenser: 48,000 BTU, 13.8 SEER2 condenser rating, rotary single-stage compressor, R32 refrigerant, 91.71 oz. charge; high-ambient cooling up to 131°F.
• Electrical: 208/230V 1Ph 60Hz; condenser breaker 27–40 Amps; air handler breaker 7–10 Amps; connection type: flared.

Product Highlights

4 ton matched split system, 14.3 SEER2 matched rating, R32 refrigerant, multi-positional air handler, high-ambient cooling capability.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-21

Technical Specifications

• Brand: ACiQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-21
• Model: AC-I-48AC14 / AC-I-48AH14
• System Type: Split air conditioner (outdoor condenser + multi-positional indoor air handler)
• Tonnage: 4 Ton
• Matched SEER2: 14.3
• Condenser SEER2: 13.8
• Condenser EER2: 11.7
• Cooling Capacity: 48,000 BTU
• Compressor Type: Rotary
• Compressor Stages: Single stage
• Refrigerant: R32
• Refrigerant Charge: 91.71 oz.
• Air Handler Blower Motor: Variable speed ECM
• Air Handler Maximum CFM: 1450
• Air Handler Filter Size: 23" x 20"
• Liquid Line Size: 3/8"
• Suction Line Size: 3/4"
• Input Voltage: 208/230V 1Ph 60Hz
• Condenser Breaker Size Min: 27 Amps
• Condenser Breaker Size Max: 40 Amps
• Air Handler Breaker Size Min: 7.0 Amps
• Air Handler Breaker Size Max: 10 Amps
• Connection Type: Flared
• Condenser Dimensions (H x W x D): 32.87" x 29.13" x 29.13"
• Air Handler Dimensions (H x W x D): 52.99" x 24.49" x 21.02"
• Condenser Sound Level: 60 Decibels
• Air Handler Sound Level: 53 Decibels
• Optional Electric Heat Kits: 5 kW, 8 kW, 10 kW, 15 kW, 20 kW
• Suitable Home Size (approximate): 2,200-2,600 sq. ft.
• High Ambient Cooling Capability: Operates up to 131°F ambient
