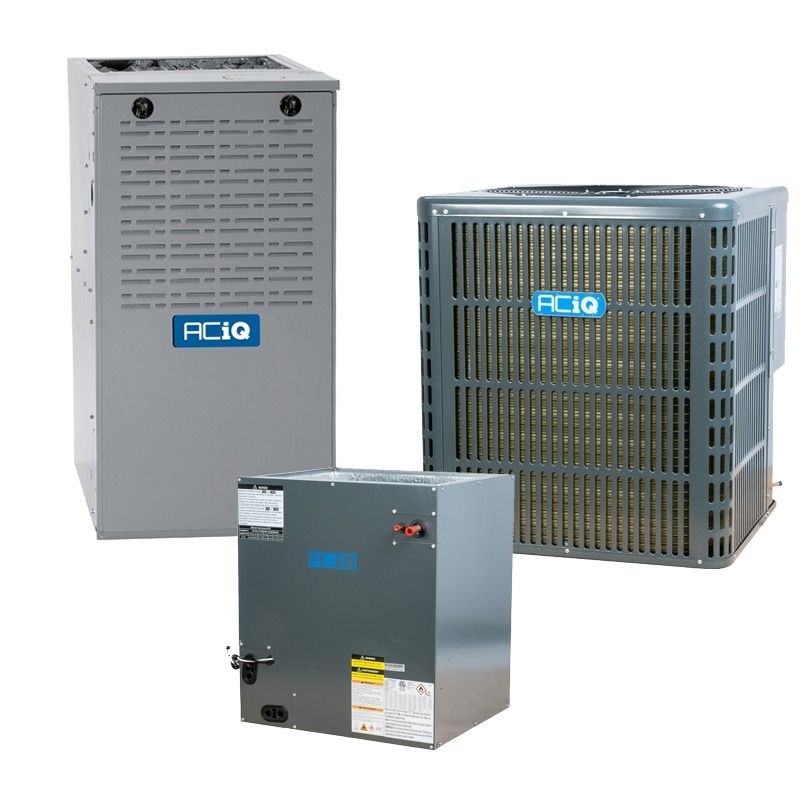

Aciq AC-I-42AC14 / AC-I-4860ACL-21 / N80MSN0902116A 3.5 ton 14.3 SEER2 80% AFUE multi-positional system

Product Description

The Aciq AC-I-42AC14 / AC-I-4860ACL-21 / N80MSN0902116A is a matched 3.5 ton split heating and cooling system comprising an outdoor condenser, multi-positional furnace, and cased evaporator coil. The condenser provides 42,000 BTU cooling at 14.3 SEER2 and is pre-charged with R32 (91.71 oz). The furnace is an 88,000 BTU input, 80% AFUE unit with a multi-speed ECM blower, and the coil is an all-aluminum 21 in cased A-coil with factory-installed TXV.

• Condenser: 42,000 BTU, 14.3 SEER2, 11.7 EER, rotary compressor, pre-charged R32 (91.71 oz), 208/230V 1 phase
• Furnace: 88,000 BTU input (70,400 BTU output), 80% AFUE, multi 18-speed constant torque ECM blower, single-stage burner, silicon nitride hot surface ignitor, 115V
• Evaporator coil: Cased all-aluminum A-coil, 21 in cabinet width, factory-installed TXV, AHRI certified; system supports upflow, downflow, and horizontal installations

Product Highlights

Matched 3.5 ton R32 split system with multi-positional furnace and 21 in cased coil; (warranty registration details removed)

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-42AC14 / AC-I-4860ACL-21 / N80MSN0902116A
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-42AC14 / AC-I-4860ACL-21 / N80MSN0902116A
• System Type: Split central air conditioner and furnace (matched system)
• Tonnage: 3.5 Ton
• Number of Compressors: 1
• Condenser Cooling Capacity: 42,000 BTU
• SEER2: 14.3
• EER2: 11.7
• Refrigerant: R32
• Condenser Pre-charge: 91.71 oz R32
• Condenser Compressor Type: Rotary
• Condenser Electrical: 208/230V 1 Phase 60 Hz
• Condenser Max Breaker Size: 35 Amps
• Condenser Min Breaker Size: 25 Amps
• Condenser Liquid Valve Size: 3/8 in
• Condenser Suction Valve Size: 3/4 in
• Condenser Dimensions (H x W x D): 32.87 in x 29.13 in x 29.13 in
• Condenser Sound Level: Approximately 60 dBA
• Furnace Input (BTU): 88,000
• Furnace Output (BTU): 70,400
• Furnace AFUE: 80%
• Furnace Blower Motor: Multi 18-Speed Constant Torque (ECM)
• Furnace Maximum CFM: 1445
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Electrical: 115V 1 Phase 60 Hz
• Furnace Max Breaker Size: 15 Amps
• Furnace Burner Stages: Single
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with optional LP kit)
• Furnace Dimensions (H x W x D): 33.33 in x 21 in x 29 in
• Evaporator Coil SKU: AC-I-4860ACL-21
• Coil Type: Cased A-coil, multi-positional
• Coil Material: All-aluminum construction
• Coil Features: Factory-installed TXV; AHRI certified; compatible with R32 (leak mitigation kit included)
• Coil Tonnage Range: 3.5 Ton to 5 Ton
• Coil Cabinet Width: 21 in
• Coil Dimensions (H x W x D): 27.8 in x 21 in x 21.02 in
• AHRI Certificate Number: 213146210
• Exhaust Flue Requirement: Metal (80% AFUE furnaces require metal flue venting)
• Power Phase: 1 Phase
• Country of Origin: China
