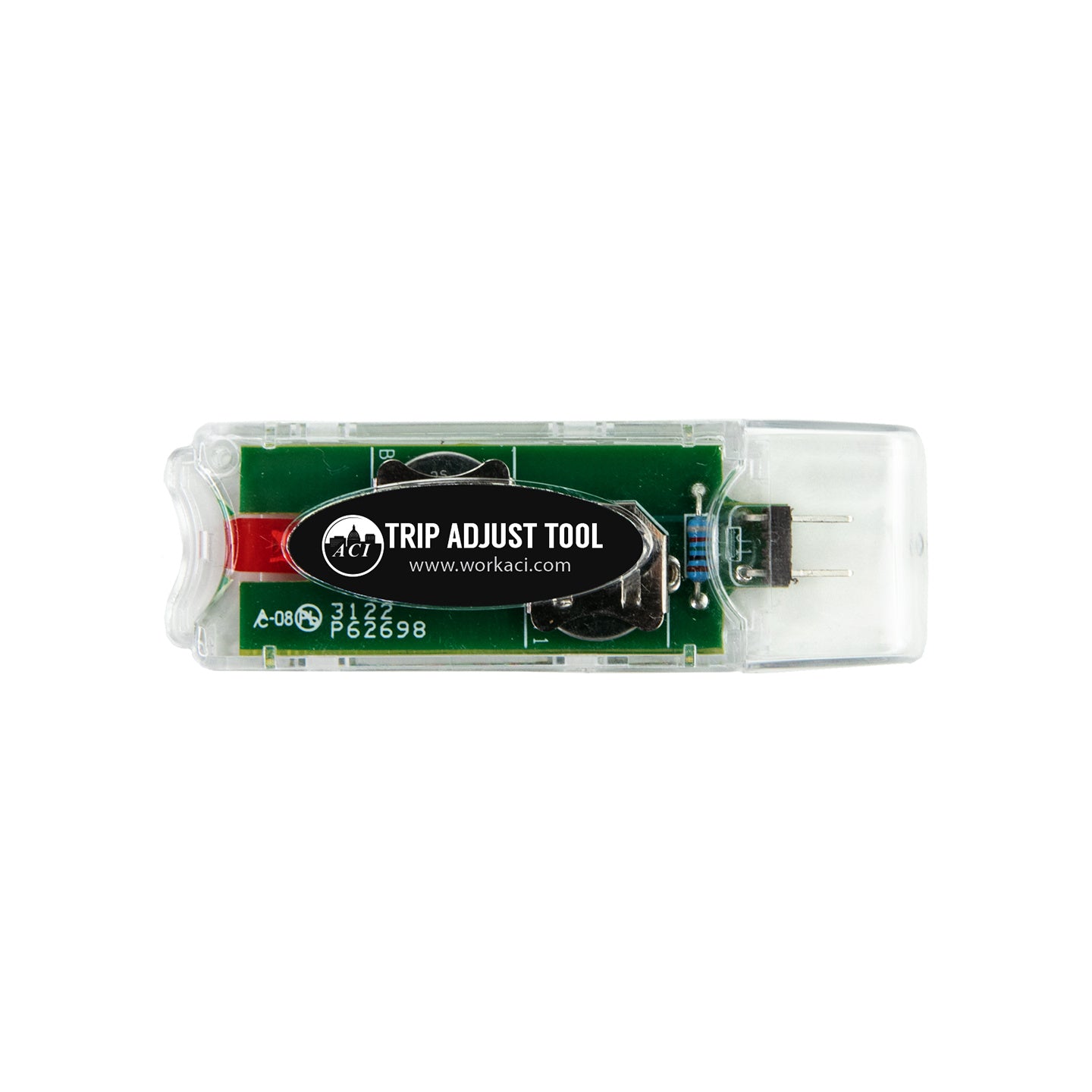

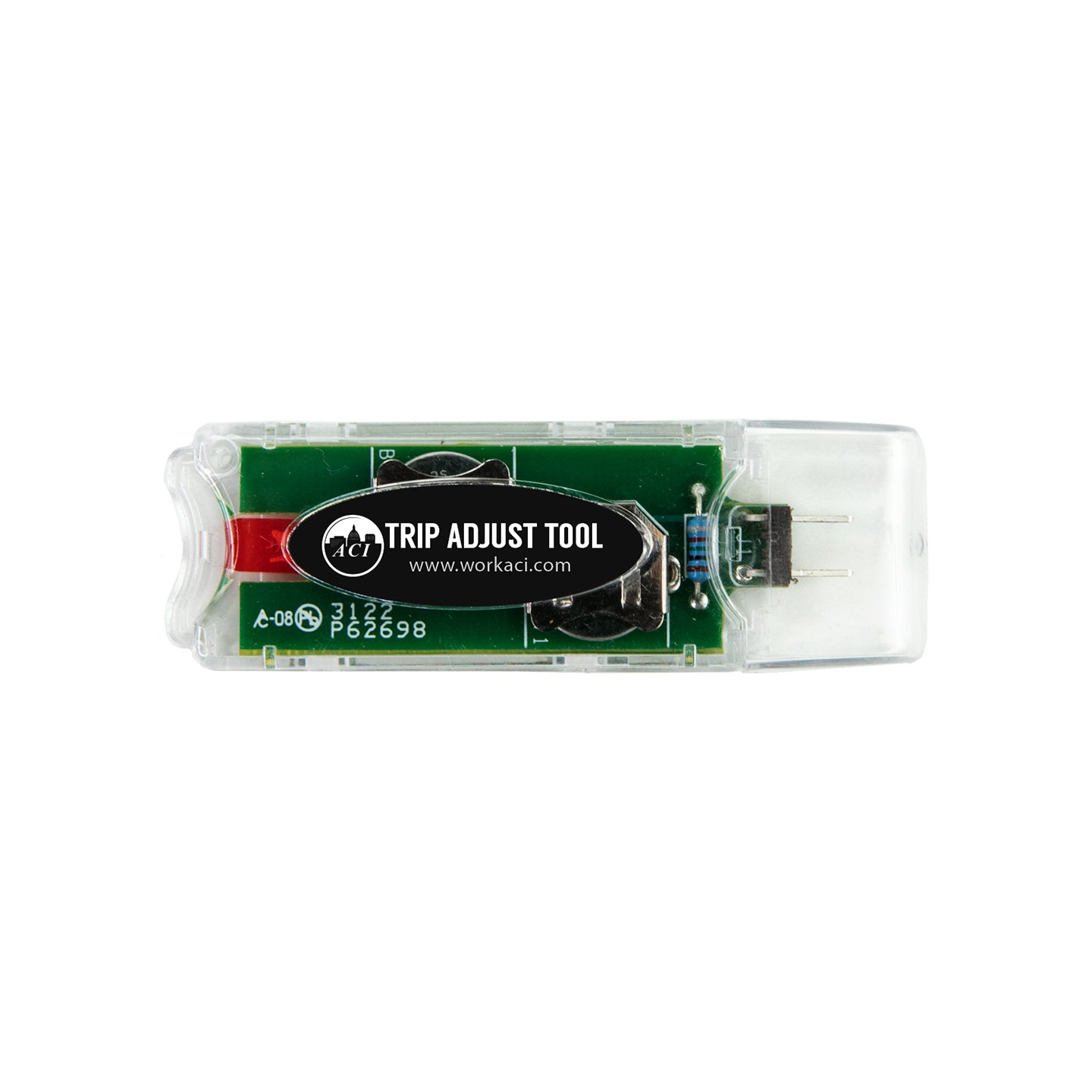

Aci Trip Adjust Tool Ecm Current Switch Tool

Product Description

The ACI TRIP ADJUST TOOL is a dedicated adjustment tool designed for use with ECM current switches. It provides a precise, repeatable method for setting the trip point on compatible current-sensing devices, eliminating guesswork during calibration. HVAC technicians and controls specialists use this tool during commissioning and service to dial in accurate current threshold settings on ECM-based monitoring systems. Proper trip point calibration ensures the current switch responds correctly to motor load conditions, protecting downstream equipment and maintaining system reliability.

This tool is suited for use in both residential and light commercial HVAC applications where ECM current switches are installed. It is typically used during initial system commissioning or when a current switch requires recalibration after a motor or drive replacement. Controls technicians and service professionals keep this tool on hand as part of a standard ECM service kit.

Key Features

• Designed specifically for trip point adjustment on ECM current switches
• Enables precise, repeatable calibration of current threshold settings
• Compact tool format suited for field and panel service work
• Reduces adjustment time during commissioning and service calls

Compatibility

Designed for use with ACI ECM current switches requiring trip point adjustment. Consult the current switch documentation to confirm tool compatibility before use.

Installation Notes

This tool is used by qualified HVAC technicians and controls specialists during current switch setup or recalibration. Before adjusting the trip point, power down or de-energize the associated control circuit where required by local codes and safe work practices. Follow the current switch manufacturer instructions for the correct adjustment procedure. Do not force the tool if resistance is felt, as this may indicate improper alignment with the adjustment mechanism.

Technical Specifications

• Application: ECM Current Switch Trip Point Adjustment

Standard Information

• Brand: ACI
• Manufacturer Part Number: TRIP ADJUST TOOL
