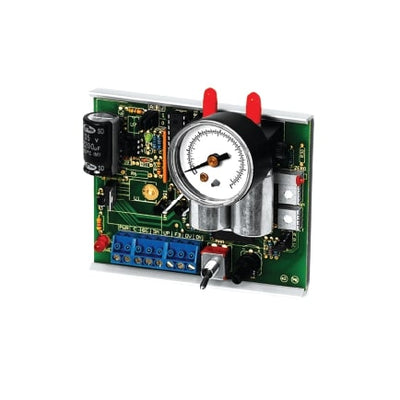

ACI EPW2GFS Pulse Width (PWM) Input to Pressure Output Interface Module

Product Description

The ACI EPW2GFS is a pulse width modulation (PWM) interface module that converts PWM signals into proportional pneumatic outputs. The output range is from zero to twenty psig and can be reversed for different applications. This module includes a manual override potentiometer for adjusting the pneumatic output.

• PWM signal conversion to pneumatic signal.
• Manual override for pneumatic output control.
• Select from multiple jumper settings for input timing and output pressure.

Product Highlights

This module is designed for convenience in installation with electrical terminals on one side and pneumatic connections on the other, enhancing wiring and tubing setups.

Product Information

Standard Information

• Brand: ACI
• Item Number: EPW2GFS

Technical Specifications

• Interface: Pulse Width (PWM) Input to Pressure Output
• Pneumatic Output Range: 0-20 psig
• Feedback Signal: 0-5 VDC
• Configurations: Constant bleed, two valve, and fail safe options
• Input Timing Ranges: Four jumper selectable ranges
• Power Failure Behavior: Continues to bleed or maintains pressure based on configuration
