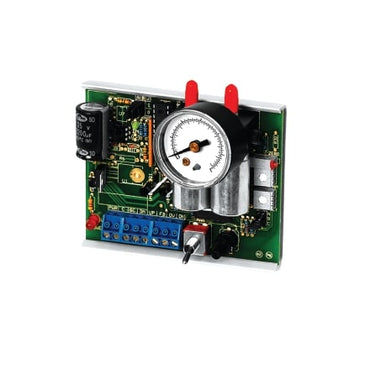

ACI EPW2G Pulse Width PWM Input to Pressure Output Interface Module

Product Description

ACI EPW2G is a pulse width (PWM) input to pressure output interface module. It converts a pulse, phase cut, or digital PWM signal into a proportional pneumatic signal ranging from zero to twenty psig. This module features a manual override potentiometer for output adjustment and two LEDs for power and signal status.

• Converts PWM signals into pneumatic outputs
• Manual override and LED indicators
• Four selectable input timing ranges

Product Highlights

The ACI EPW2G is designed for convenience in wiring and tubing installation, featuring terminals on one end and pneumatic connections on the other. It supports multiple configurations including constant bleed and fail-safe options.

Product Information

Standard Information

• Brand: ACI
• MPN: EPW2G

Technical Specifications

• Interface: Pulse Width (PWM) Input to Pressure Output
• Pressure Output Range: 0 to 20 psig
• Adjustable Output: Yes
• Feedback Signal: 0-5 VDC
• Power Failure Behavior: Maintains pressure in certain configurations
• Compliance: RoHS Compliant
• Calibration: NIST traceable
• Connections: Electrical terminals and pneumatic connections
