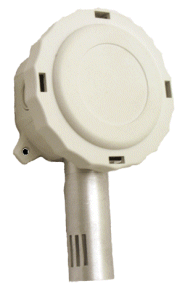

ACI ACI-RH2-10K-AN-O-BC Relative Humidity/Temperature Sensor 10K

Product Description

ACI presents the ACI-RH2-10K-AN-O-BC, a relative humidity and temperature sensor designed for outdoor air applications. This sensor operates within a measurement range of zero to one hundred percent relative humidity with an accuracy of two percent from twenty to ninety-five percent. It uses a two-wire, four to twenty milliamp output signal, which is standard for factory settings.

• 0-100% RH measurement range
• Temperature sensor output of 10K Ohms at seventy-seven degrees Fahrenheit
• Bendable copper construction for flexible installations

Product Highlights

This sensor is ideal for HVAC applications, providing reliable data for monitoring and controlling indoor environments. It is suitable for various setups and offers optional output configurations.

Product Information

Standard Information

• Brand: ACI - Automation Components, Inc.
• Country of Origin: US

Technical Specifications

• Measurement Range: 0-100%
• Output Signal: 2-wire, 4-20 mA (factory standard)
• Optional RH Output: 3-wire, 0-5 or 0-10 VDC
• Temperature Sensor Output: 10K Ohms @ 77°F (25°C)
• Accuracy: 2% from 20% to 95%
• Construction Material: Bendable Copper
