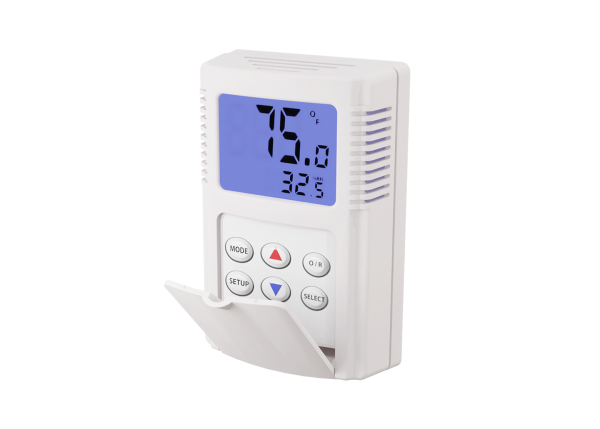

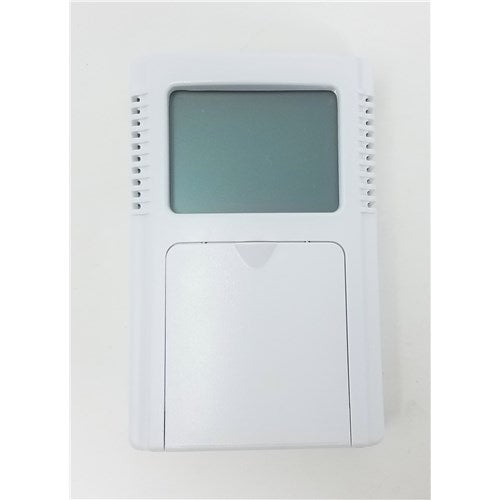

ACI A/TUC2-AN-0033 Wall Mount Temperature and Humidity Sensor

Product Description

The ACI A/TUC2-AN-0033 is a sensor designed for wall mounting to accurately measure both temperature and humidity. This device utilizes a microprocessor for reliable readings and displays the results on an easy-to-read LCD screen. It offers a 0-10 VDC output signal, making it suitable for integration with various monitoring systems. It also provides an override function for enhanced control. This sensor is ideal for maintaining optimal indoor environmental conditions.

• Measures both temperature and humidity.
• Includes an LCD for displaying sensor data and setpoints.
• Provides a 0-10 VDC output.

Product Highlights

This wall mount sensor is perfect for HVAC applications and other environments where monitoring is crucial.

Product Information

Standard Information

• Brand: ACI (Automation Components Inc)
• MPN: A/TUC2-AN-0033

Technical Specifications

• Supply Voltage: 20-28 VAC / +18-40 VDC
• Supply Current: 100 mA maximum
• Temperature Measurement Range: 40 to 100°F (4.5 to 40°C)
• RH Measurement Range: 0 to 100% RH
• Set Point Midpoint: 55 to 89°F (14 to 31°C) and/or RH from 33 to 67%
• Set Point Differential: +/- 1 to +/- 20°F and/or +/- 1 to +/- 20% RH
• Override Option: Normally-Open (N/O) Dry Contact Closure
• LCD Backlight Color: Blue
• Operating Temperature Range: 40 to 104°F (4.5 to 40°C)
• Product Dimensions: 4.56 x 3.00 x 1.26 inches
• Product Weight: 0.35 lbs (0.162 kg)
• Agency Approvals: CE (EMC 2014/30/EU); RoHS
