Aci a/rh2-an-o humidity sensor 2pct w/10k iii

Product Description

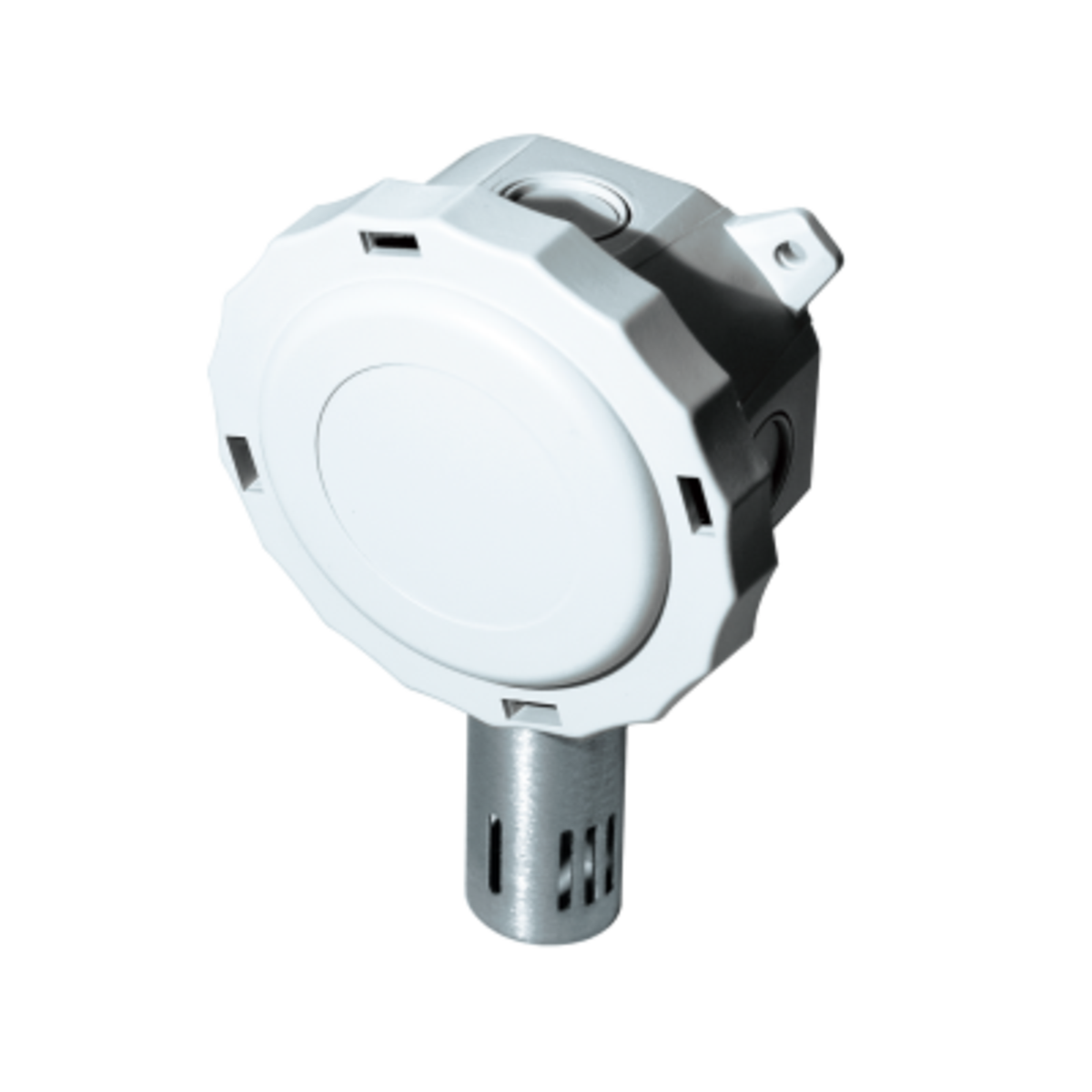

The ACI A/RH2-AN-O is an outdoor humidity sensor with a 10K Type III thermistor. It features a capacitive sensing element that delivers a proportional analog output. The sensor has on-board DIP switches for user selection of the desired output signal and can be powered by AC or DC power sources. Field calibration can be performed using the on-board increment and decrement DIP switches.

• 2% Accuracy
• Field selectable current or voltage outputs

Product Highlights

This humidity sensor is designed for outdoor air applications, economizer control, and psychrometric calculations.

Product Information

Standard Information

• Brand: ACI
• Manufacturer Part Number: A/RH2-AN-O
• Country of Origin: USA

Technical Specifications

• Type: Outdoor
• Accuracy: 2%
• Temp Sensor Type: 10K Type III
• Housing Material: Poly
• Sensor Element: 10K Type 3 Thermistor
• Output: 4 - 20 mA
• Power Requirements: 24 VAC,24 VDC
• Application: Outdoor Air Humidity,Economizer Control,Psychrometric Calculations,Enthalpy,Dew Point,Wash Down Applications
• Mount: OSA
• Manufacturer: ACI
• Component: Humidity
• Features: The ACI Relative Humidity with Thermistor Outside Air Series utilizes a thermoset polymer capacitive sensing element with factory applied hygroscopic filter to deliver a proportional analog current or voltage output signal
