ACI A/DLP-001-W-U-D-A-3 Diff Press Transmitter 0-1in Replacement MPN

Product Description

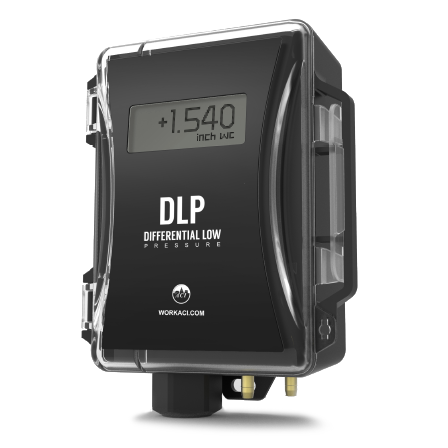

The ACI A/DLP-001-W-U-D-A-3 is a differential pressure transmitter designed for HVAC applications. It features a measurement range of zero to one inches of water column. This model includes a display for easy reading of pressure levels.

• Measurement range of 0-0.1, 0-0.2, 0-0.5, and 0-1 inches water column.
• Field selectable output options: 4-20 mA (default), 0-5 VDC, and 0-10 VDC.
• Includes a pitot tube for duct mounting and a din rail clip for panel mounting.

Product Highlights

This differential pressure transmitter is suitable for both unidirectional and bidirectional measurements, ensuring flexibility in various applications.

Product Information

Standard Information

• Brand: ACI
• Model: A/DLP-001-W-U-D-A-3

Technical Specifications

• Mount: Din Rail
• Output: 4-20mA, 0-5Vdc, 0-10Vdc
• Display: Yes
• Voltage: 16-36Vdc, 22-36Vdc, 24Vac
• Direction: Unidirectional, Bidirectional
• Pilot Tube: Yes
• Item Weight: 1.00 lbs per EA
