ACI A/AN-A-12-PB Averaging Temperature Sensor

Product Description

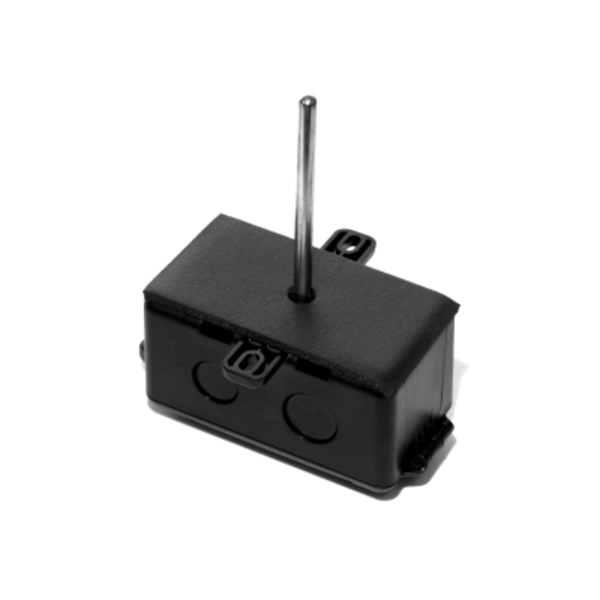

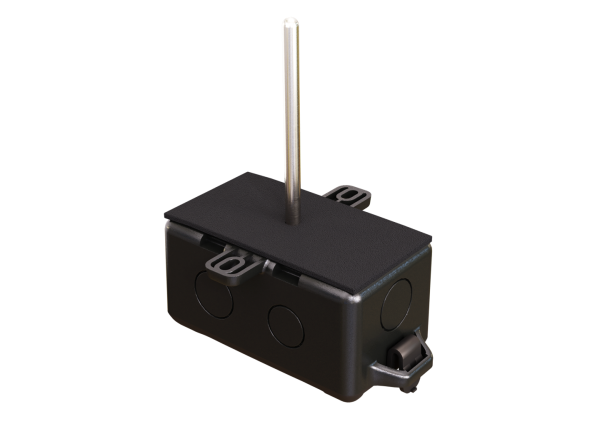

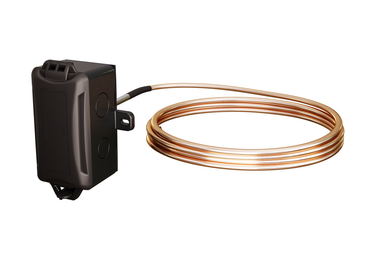

The ACI A/AN-A-12-PB is an averaging temperature sensor designed specifically for HVAC systems. This unit features a 10K Type III thermistor within a bendable copper averaging probe, making it suitable for various duct applications. The sensor is intended for mounting across duct sections, providing accurate temperature readings. The product includes a plastic enclosure with a mounting flange for easy installation.

• Featuring a 10K Type III thermistor for accurate readings.
• Includes a bendable twelve-foot copper averaging probe for flexible installation.
• Designed specifically for duct mount applications.

Product Highlights

Product Information

Standard Information

• Brand: ACI
• MPN: A/AN-A-12-PB

Technical Specifications

• Sensor Type: Thermistor
• Sensor Element: 10K Type 3 Thermistor
• Resistance: 10K Ohms at seventy-seven degrees Fahrenheit (twenty-five degrees Celsius)
• Probe Length: twelve feet
• Averaging Type: Flexible
• Application: Duct averaging temperature
• Output Signal: Resistance
• Accuracy: ±0.36°F (±0.2°C)
• Temperature Range: -40°F to 302°F (-40°C to 150°C)
• Stability: 0.24°F (0.13°C) over five years
• Heat Dissipation: 3 mW/°C
• Enclosure Rating: NEMA 1, galvanized metal box
• Wiring Terminations: Ten of twenty-two AWG wire or terminal strip
• Weight: 1.2 lb (0.54 kg)
• Approvals: RoHS
• Sensor Curve: Non-linear, NTC
• Operating Temperature Range: 0 to 70°C (32 to 158°F)
• Storage Temperature Range: 0 to 70°C (32 to 158°F)
• Operating Humidity Range: 10 to 95% RH, non-condensing
• Probe Material: 304 stainless steel
• Probe Diameter: 0.250 inches (6.35 mm)
• Lead Length | Conductor Size: 12 inches (30.5 cm) | 22 AWG (0.65 mm)
• Lead Wire Insulation | Wire Rating: Etched Teflon (PTFE) colored leads | Mil Spec 16878/4 Type E
• Conductor Material: Silver plated copper
• Sensor Averaging Wire Length: twelve feet
• Sensor Configuration: Averaging
• Sensor Housing: Plastic box
