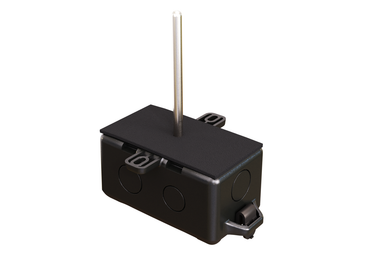

ACI A/6-INCH Temperature Sensor

Product Description

The ACI A/6-INCH is a reliable temperature sensor designed for HVAC and process systems. It works with gas and liquid media and is available in thermistor and RTD configurations suitable for most Building Automation Systems. The device features a durable stainless steel or metal probe with attached lead wires for connection, ensuring effective installation.

• Compatible with HVAC systems and process equipment.
• Includes a protective design for sensing elements.
• Some models come with mounting flanges and moisture resistance.

Product Highlights

This ACI temperature sensor operates within a temperature range of -40 to 302 degrees Fahrenheit, suitable for diverse environments. ACI designs this sensor for easy integration into various duct and thermowell installations.

Product Information

Standard Information

• Brand: ACI
• Manufacturer: ACI

Technical Specifications

• Item Number: A/AN-D-6-PB
• MFR. Model: A/6
• Type: RTD
• Sensing Element: Thermistor
• Sensor Type: 1000Ω 385 curve

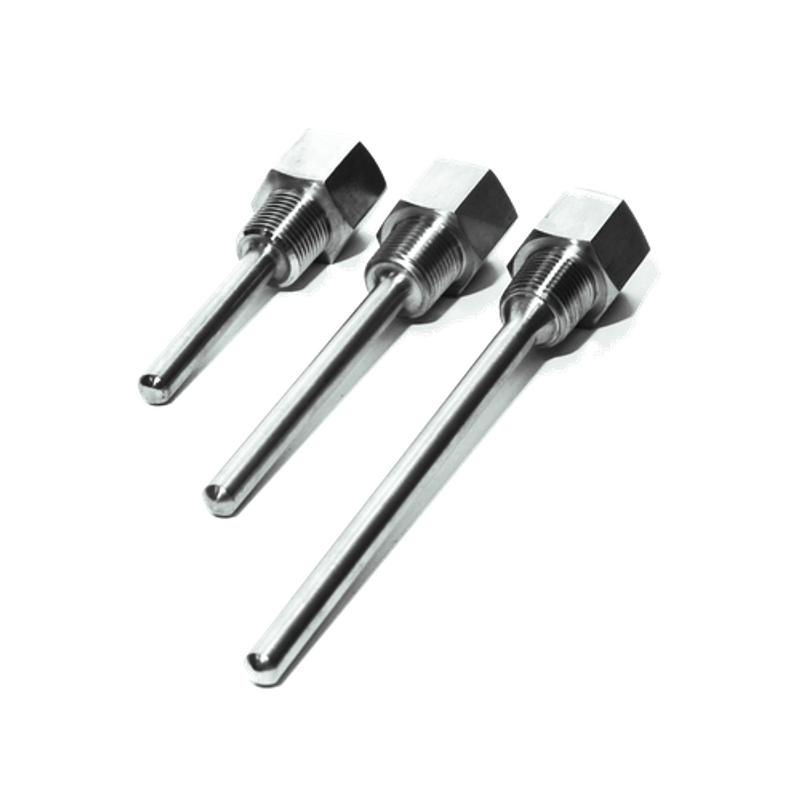

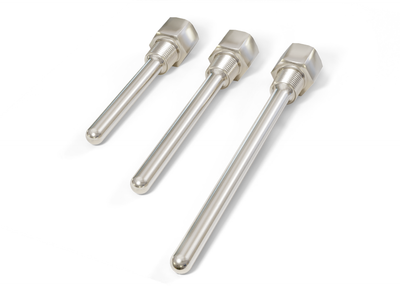

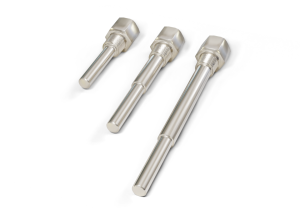

• Sensor Configuration: Duct, Thermowells
• Temperature Range: -40 to 302°F (-40 to 150°C)
• Accuracy: ±0.50°F (0.28°C)
• Stability: <±0.1°C drift
• Housing Material: Poly
• Material: Stainless Steel 304
• Probe Length: 6 inches
• Enclosure Rating: NEMA 4X
• Weight: 1 lb (0.45 Kg)
• Mounting Type: Flange Mount
• Connection Thread Size: 1/2 Inch NPT
• Thermowell Hex Size: 1/2 Inch
• Warranty: 5 years
