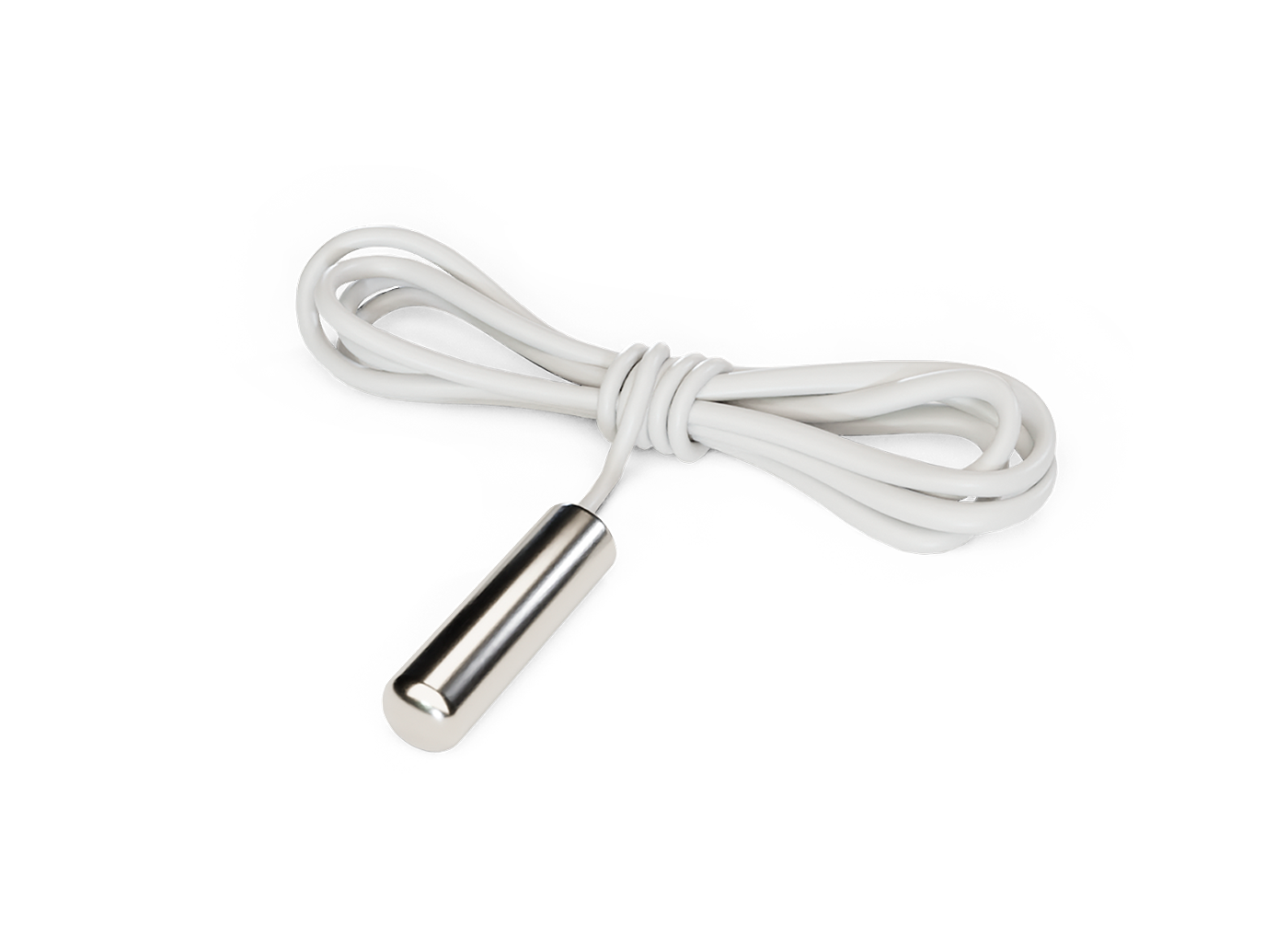

ACI A/20K-BP Bullet Probe Temperature Sensor 20K ohm

Product Description

The ACI A/20K-BP is a bullet probe temperature sensor designed for accurate air temperature monitoring. It features a stainless steel probe that is one inch in length. The sensor includes two twenty-four inch, twenty-two AWG Etched Teflon lead wires that differentiate NTC sensor types. This product is made using ACI's double encapsulation process, which minimizes moisture effects and enhances thermal response times with thermally conductive epoxy. Note that this sensor is intended for air temperature measurements and is not suitable for full water submersion.

• Stainless steel one-inch probe
• Dual twenty-four inch Teflon lead wires
• Designed for air temperature monitoring

Product Highlights

Perfect for use in HVAC systems and other air handling applications, this sensor is suited for rooftop units, air handlers, and various air duct applications.

Product Information

Standard Information

• Brand: ACI
• Part Number: A/20K-BP

Technical Specifications

• Item Number: A/20K-BP
• Element Type: 20K ohm
• Sensing Element: Thermistor
• Sensor Configuration: Bullet Probe
• Sensor Type: Temperature
