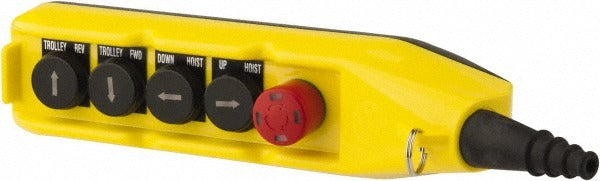

Aci 75-2005 Pendant Control Station 5 Operator Mushroom Head

Product Description

The ACI 75-2005 is a pendant-mounted control station designed for industrial and commercial machine control applications. It features five pushbutton operators in a mushroom head configuration with NO/NC contact configuration, rated for up to 600 volts AC and 16 amps. The pendant design allows an operator to control equipment from a safe working distance, keeping hands and body clear of moving machinery. Licensed electricians and industrial maintenance technicians install and wire this type of control station as part of motor control or crane and hoist circuits.

This control station is suited for use in industrial facilities, manufacturing environments, and commercial settings where operator-controlled machine start, stop, and directional functions are required. The five-operator layout accommodates multi-function control needs, such as up, down, forward, reverse, and stop sequences. The mushroom head operators provide a larger contact surface for fast, positive actuation. No legend markings are included, allowing the installer to apply custom labels appropriate to the application.

Key Features

• Pendant-mount design keeps the operator at a safe distance from controlled equipment
• Five mushroom head operators for multi-function machine control
• NO/NC contact configuration supports both normally open and normally closed circuit wiring
• Rated 600 volts AC for compatibility with standard industrial control voltages
• 16 amp rating supports typical motor control circuit loads
• No legend markings allow custom labeling for site-specific applications

Compatibility

Designed as an OEM-style replacement or new-installation pendant control station for industrial motor control, crane, hoist, and machine control circuits requiring a 5-operator mushroom head configuration.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the circuit before wiring or servicing the control station following LOTO procedures. Verify that the supply voltage and amperage do not exceed the rated 600 volts AC and 16 amps. Secure the pendant cable and strain relief to prevent tension on the wiring connections.
