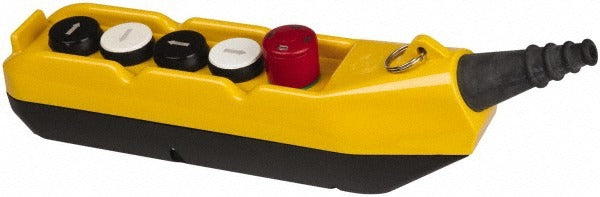

Aci 116521 Pendant Control Station 5 Pushbutton No/nc

Product Description

The ACI 116521 is a pendant control station designed for industrial operator control of machinery and equipment. It features five pushbutton operators including a mushroom head operator with a turn-to-release action, providing a deliberate and secure method of emergency or function control. The station is rated at 16 amps and 600 volts AC, making it suitable for heavy-duty industrial applications. Contact configuration is NO/NC (normally open/normally closed), and interlock style is mechanical. Electricians and industrial maintenance technicians install this type of pendant station where remote operator control is required at the point of machine operation.

This pendant control station is used in industrial and commercial settings where operators need direct, handheld control of equipment such as hoists, cranes, conveyors, and other motorized machinery. The five-operator layout accommodates multiple control functions in a single pendant housing. The mushroom head turn-to-release operator is commonly used as an emergency stop or safety lockout function within the operator interface. It is appropriate for environments requiring a rated 600-volt AC control circuit with mechanical interlock logic.

Key Features

• Five pushbutton operators including a mushroom head turn-to-release operator
• NO/NC contact configuration for flexible control circuit wiring
• Mechanical interlock style for reliable operator sequencing
• Rated 16 amps and 600 volts AC for heavy-duty industrial use
• Pendant-style housing for handheld point-of-operation control

Compatibility

Designed as an OEM-style replacement or direct-install pendant control station for industrial control applications requiring a 5-operator, 600-volt AC rated pendant with NO/NC contact configuration and mechanical interlock.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for industrial control wiring. Disconnect and lock out all power to the control circuit before connecting or replacing the pendant station. Verify that the control circuit voltage and amperage ratings match the application before wiring. Do not bypass or defeat the mechanical interlock or the turn-to-release operator function during installation or testing.
