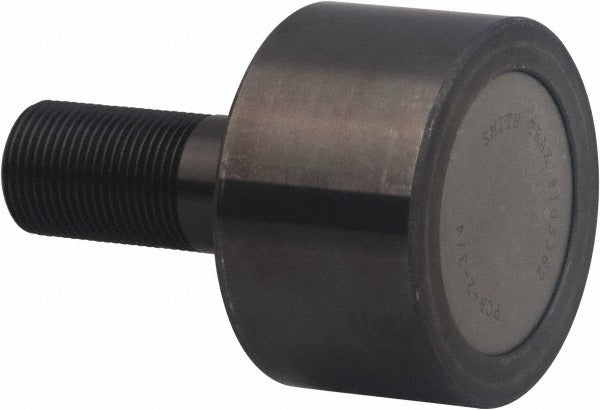

Accurate Bushing MPCR-72 Plain Stud Load Runner

Product Description

The ACCURATE BUSHING MPCR-72 is a plain stud load runner designed for guided cam follower and track roller applications in industrial machinery. This carbon steel roller bearing features a 72mm roller diameter, 44mm roller width, and a 24mm plain stud with a 49.5mm stud length. The M24 x 1.5 threaded section runs 25mm, and the overall assembly length is 93.5mm. Dynamic load capacity is 48,400 N with a static capacity of 33,900 N. Industrial maintenance technicians and mechanical assemblers install this part where a stud-mounted track roller is needed to guide or support moving loads along a rail or cam surface.

This load runner is suited for use in conveyor systems, cam-driven mechanisms, and linear guide assemblies found in manufacturing and material handling equipment. The plain stud design allows for direct mounting into machined housings or brackets without a threaded track interface. Its carbon steel construction supports heavy radial loads in both stationary and traversing roller applications across a range of industrial environments.

Key Features

• 72mm roller diameter with 44mm width for broad contact area and load distribution
• Carbon steel construction for strength under high radial loads
• M24 x 1.5 thread with 25mm thread length for secure stud mounting
• 48,400 N dynamic load capacity and 33,900 N static load capacity
• 93.5mm overall assembly length for dimensional predictability during installation
• Plain stud style simplifies direct-mount configurations

Compatibility

Designed as an OEM-style replacement or direct-fit load runner for industrial cam follower and track roller applications requiring a 72mm roller diameter and 24mm plain stud diameter.

Installation Notes

Installation is typically performed by industrial maintenance technicians or mechanical engineers. Power down and de-energize all associated machinery before removing or installing load runners. Ensure the mounting bore and mating surfaces are clean and free of debris before seating the stud. Verify thread engagement and preload requirements against the machine manufacturer's specifications before returning the system to service.
