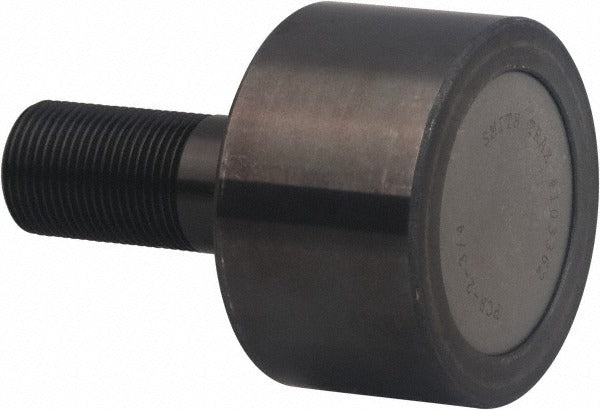

Accurate Bushing MPCR-40 Plain Stud Load Runner

Product Description

The ACCURATE BUSHING MPCR-40 is a plain stud load runner designed for applications requiring precise linear or curved track rolling under combined radial and axial loads. The roller measures 40mm in diameter with a 30mm width, and the stud measures 14mm in diameter with a 40mm length overall outside length of 70mm. Constructed from carbon steel, this load runner delivers a dynamic load capacity of 12,200 N and a static load capacity of 4,900 N. It features an M14 x 0.2 thread with a 26mm thread length, providing a secure mounting interface. Mechanical engineers, maintenance technicians, and industrial equipment specialists install this component in cam follower and track roller assemblies.

The MPCR-40 is suited for use in linear guide systems, cam mechanisms, conveyor assemblies, and general industrial machinery where a stud-mounted roller is required. Its plain stud configuration makes it adaptable to a range of mounting arrangements. The carbon steel construction supports durability in moderate-load industrial environments. This part is packaged and sold individually.

Key Features

• 40mm roller diameter and 30mm roller width for stable track contact
• 14mm stud diameter with 40mm stud length and 26mm thread engagement length
• M14 x 0.2 thread specification for secure stud mounting
• Dynamic load capacity of 12,200 N and static load capacity of 4,900 N
• 70mm overall length for straightforward dimensional planning
• Carbon steel construction for industrial durability

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial cam follower and stud-type track roller applications requiring a 40mm roller diameter and 14mm stud diameter configuration.

Installation Notes

Installation is typically performed by mechanical technicians or millwrights as part of machinery maintenance or assembly. Ensure the mating track or cam surface is clean and free of debris before fitting the load runner. Disengage and lock out all power and motion sources on the host equipment before beginning installation. Verify thread engagement depth meets the requirements of the mounting structure to ensure secure retention under load.
