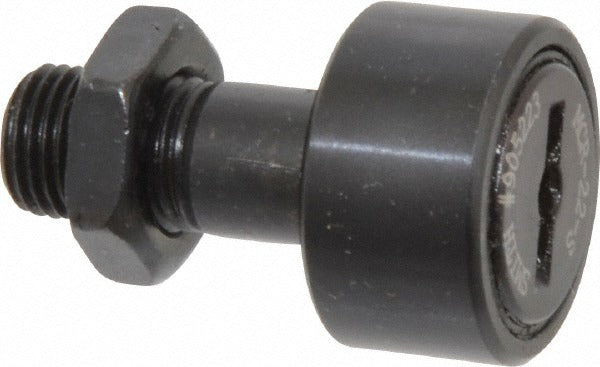

Accurate Bushing MCR-22-S Sealed Stud Cam Follower

Product Description

The ACCURATE BUSHING MCR-22-S is a sealed stud cam follower designed for use in linear and rotary motion applications where a rolling element must track a cam surface or guide rail under load. Built with a caged roller bearing and a steel roller, this follower handles a static load capacity of 6,500 Newtons and a dynamic load capacity of 5,700 Newtons. The M10 x 1 threaded stud mounts directly into a tapped hole, making installation straightforward in fabricated machinery, conveyor systems, and automated equipment. It is installed by mechanical technicians and machine builders working on industrial motion assemblies.

The MCR-22-S is suited for light to medium-duty industrial machinery where a compact, sealed cam follower is needed to run against flat or contoured cam surfaces. The sealed closure type protects the internal caged roller bearing from contamination in moderately dirty environments, reducing maintenance intervals. Typical install scenarios include conveyor guides, indexing mechanisms, and cam-driven actuator assemblies in both production equipment and automated material handling systems.

Key Features

• Sealed closure protects caged roller bearing from contamination without external lubrication access
• 22 mm cylindrical steel roller provides consistent surface contact across cam or track surfaces
• M10 x 1 threaded stud allows direct mounting into standard tapped holes
• Rated to 11,000 RPM maximum for compatibility with higher-speed cam drive applications
• Slotted head type allows stud engagement and adjustment with a standard screwdriver or spanner
• Caged roller bearing design reduces friction and supports consistent load distribution

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial machinery applications requiring a sealed stud cam follower with an M10 x 1 stud thread and a 22 mm cylindrical roller.

Installation Notes

Installation is performed by qualified mechanical technicians or machine builders. De-energize and lock out all power and motion sources on the machine before replacing a cam follower. Thread the stud into the tapped mounting hole and tighten using the slotted head; do not overtighten or apply side load during installation. Verify roller alignment with the cam surface before returning the assembly to service.
