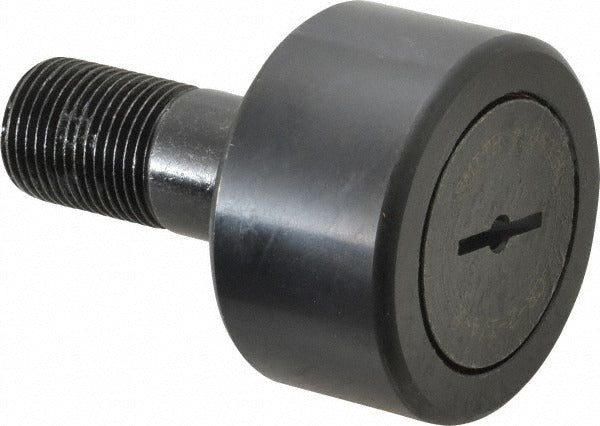

Accurate Bushing CR-2-1/4-X Plain Stud Cam Follower

Product Description

The ACCURATE BUSHING CR-2-1/4-X is a plain stud cam follower designed for use in cam-and-follower track systems found in industrial machinery, automation equipment, and material handling applications. Built with a steel needle roller bearing and a sealed closure, this follower delivers high radial load capacity in a compact, stud-mounted configuration. It carries a dynamic load rating of 10,370 pounds and a static load rating of 10,700 pounds, making it suitable for demanding duty cycles. Licensed trades and machine maintenance technicians install this type of component in cam-driven linkages, conveyor tracks, and guide rail systems where precise rolling contact is required.

This cam follower is suited for industrial applications requiring a non-crowned steel roller that rides along a flat or contoured track surface. Its sealed bearing design retains lubrication and resists contamination, reducing maintenance intervals in dirty or high-cycle environments. The stud configuration with a slotted head allows for straightforward installation and adjustment in mating yoke or bracket assemblies. It is appropriate for both OEM machine builds and field replacement on production equipment.

Key Features

• 2.25-inch roller diameter with non-crowned roller shape for flat-track contact
• Needle roller bearing type provides high radial load capacity in a compact envelope
• Sealed closure retains grease and blocks contaminants for extended service life
• 10,370-pound dynamic load capacity and 10,700-pound static load capacity
• 7/8-14 threaded stud with 1-inch thread length and slotted head for tool engagement
• Steel roller and steel construction throughout for durability in industrial environments

Compatibility

Designed as an OEM-style replacement stud cam follower for industrial cam track and guide rail systems requiring a 2.25-inch roller diameter, 0.875-inch stud diameter, and 7/8-14 thread size.

Installation Notes

Installation is typically performed by millwrights or machine maintenance technicians. De-energize and lock out all power and motion sources on the machine before removing or installing cam followers. Use the slotted stud head with an appropriate wrench or driver to torque the fastener into the mating bracket or yoke. Verify roller-to-track alignment after installation to prevent edge loading on the roller.
