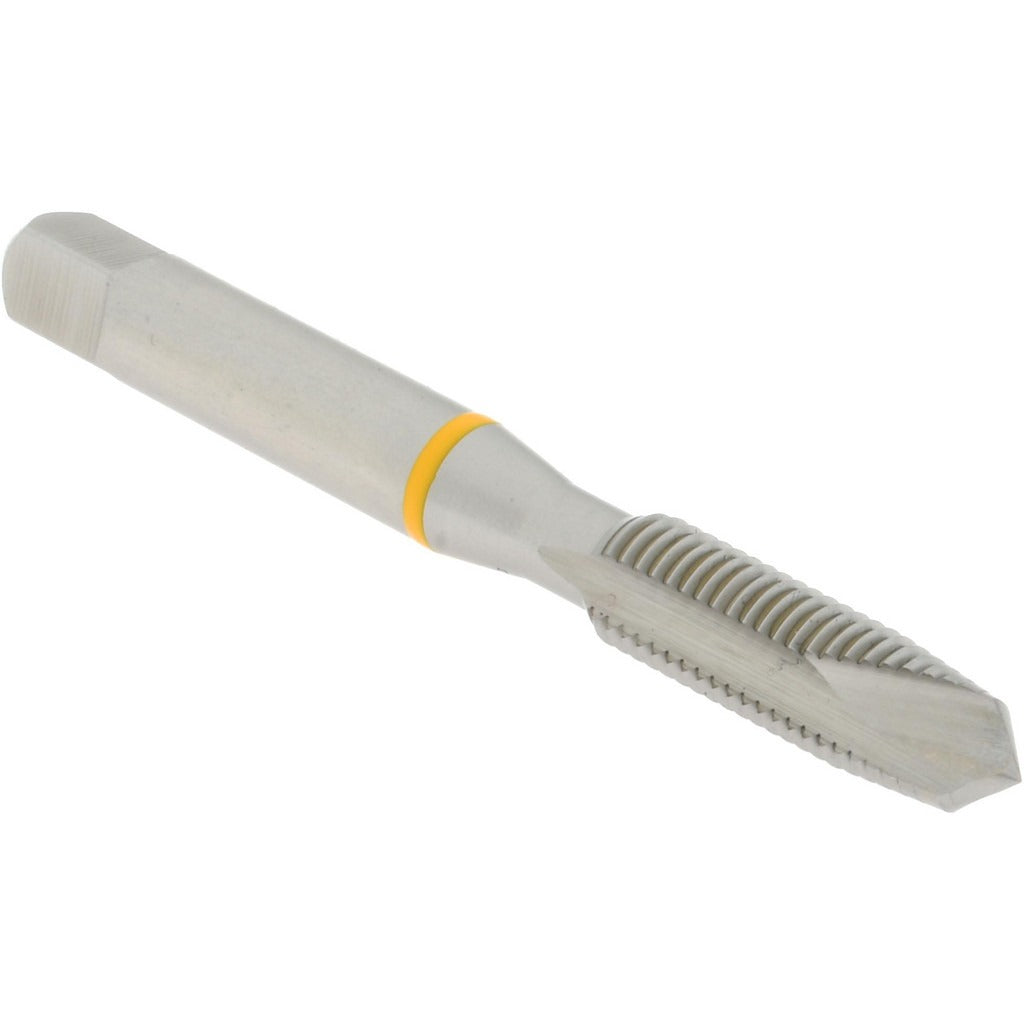

Accupro T2670463 Spiral Point Tap 5/16-24 Plug Hss

Product Description

The ACCUPRO T2670463 is a spiral point tap designed for cutting 5/16-24 UNF internal threads in through-hole applications. It features a plug chamfer for standard production threading and is manufactured from 3% vanadium high speed steel, which provides improved wear resistance and edge retention compared to standard M2 HSS. The H3 thread limit and 3B class of fit make it suitable for general-purpose threading tolerances. With 2 flutes and a spiral point geometry, it pushes chips ahead of the tap and down through the hole, keeping the flute area clear during cutting. Overall length is 2.72 inches (69.06 mm) with a 22 mm thread length.

This tap is intended for through-hole threading operations in aluminum and similar non-ferrous materials. The spiral point design performs best in CNC tapping centers, drill presses, and production tapping machines where consistent feed rates can be maintained. The bright finish is well suited for use with aluminum, reducing galling and built-up edge on the cutting faces. Right-hand thread direction matches standard right-hand fastener applications.

Key Features

• Spiral point geometry pushes chips forward through the hole, reducing clogging in through-hole operations
• 3% vanadium high speed steel construction for improved toughness and wear resistance over standard HSS
• Plug chamfer provides a balance between starting ease and thread engagement length
• H3 thread limit and 3B class of fit for standard general-purpose thread tolerances
• Bright finish suitable for aluminum machining applications
• Right-hand thread direction, no coolant-through required

Compatibility

Designed for through-hole tapping of 5/16-24 UNF threads in aluminum. Fits standard tap holders and collet chucks sized for an 8.08 mm shank diameter.

Installation Notes

Installation should be performed by a machinist or qualified trade professional using a properly aligned tapping head, drill press, or CNC machine to maintain coaxial entry and prevent tap breakage. Ensure the through-hole is drilled to the correct tap drill diameter for 5/16-24 before threading. Apply an appropriate cutting fluid for aluminum to extend tap life and improve thread finish. Never reverse a spiral point tap under power without confirming the machine is programmed for synchronized retraction.
