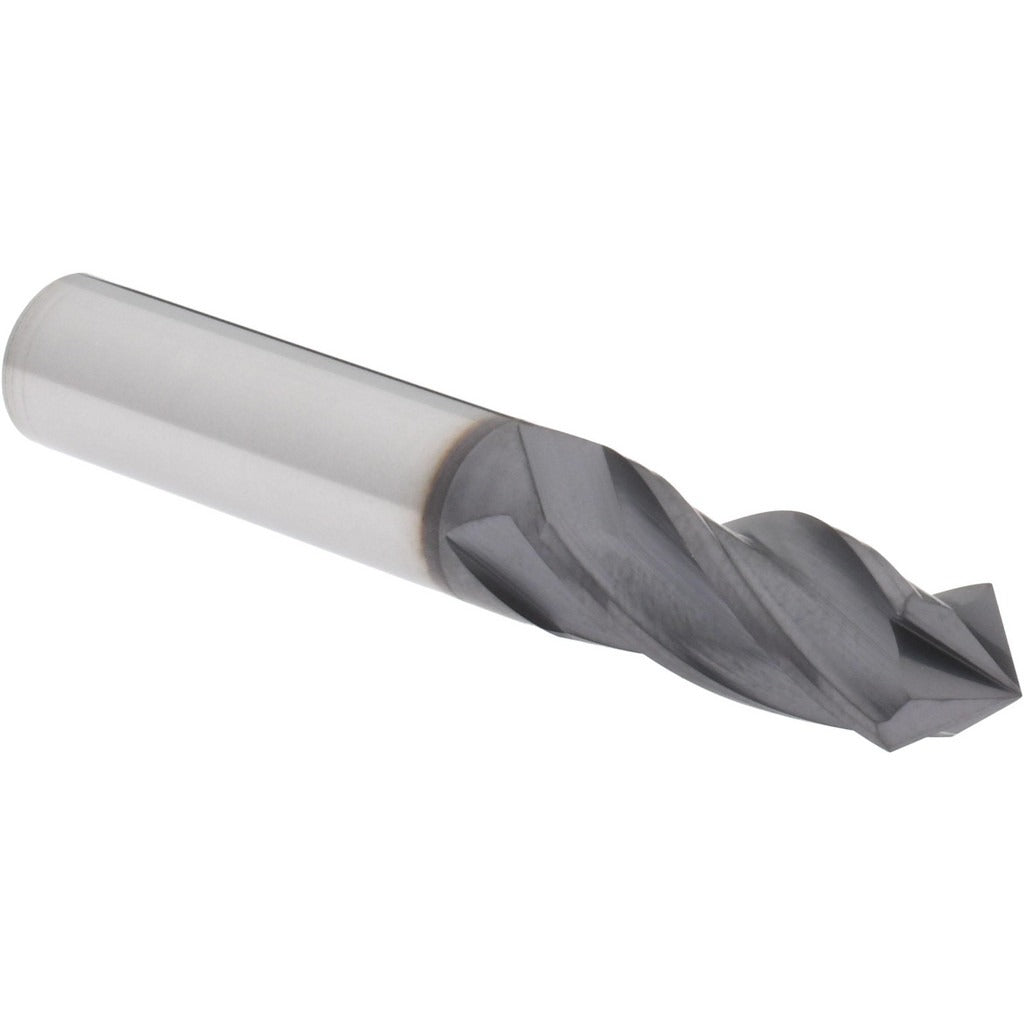

Accupro SCCMG1212DPPLAL 3/8 in Drill Mill 4 Flute Altin Carbide

Product Description

The ACCUPRO SCCMG1212DPPLAL is a solid carbide drill mill designed for combined drilling and milling operations in a single tool. It features a 3/8 inch diameter cutting edge with a 90-degree point angle and four flutes ground from micrograin carbide stock. The AlTiN coating provides high-temperature oxidation resistance, extending tool life in ferrous and hardened materials. Right-hand cut and right-hand flute geometry make this tool compatible with standard spindle direction on CNC machining centers and manual mills. Machinists and toolroom operators working in production or job shop environments are the primary users of this tool.

This drill mill is suited for machining centers, knee mills, and CNC routers where spot drilling, chamfering, and end milling operations are performed in a single setup. The 1 inch length of cut accommodates moderate-depth pocketing and through-hole entry in steel, stainless, cast iron, and similar materials. The 3/8 inch shank diameter fits standard ER collet chucks and end mill holders commonly found in production shops. The 2.5 inch overall length provides adequate reach for most workholding setups without sacrificing rigidity.

Key Features

• Solid micrograin carbide construction for wear resistance and edge retention
• AlTiN coating for elevated heat resistance in ferrous and hard material applications
• 90-degree point angle enables accurate spot drilling and chamfering without a separate tool
• Four flutes provide improved finish and chip evacuation in milling operations
• Right-hand cut and right-hand flute geometry for use with standard CNC and manual mill spindles
• Mill diameter tolerance of +0.000 / -0.002 inches ensures consistent fit in close-tolerance work

Compatibility

Designed as a direct-fit replacement for 3/8 inch shank drill mills used in standard ER collet chucks, shrink-fit holders, and side-lock end mill holders on CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist following the tool holder manufacturer torque recommendations for the collet nut or set screw. Ensure the shank is fully seated to the recommended minimum engagement depth before tightening. Confirm spindle direction is set to right-hand rotation before operation. Inspect the cutting edges for chips or damage before each use, as carbide tools are brittle and should not be used if edge integrity is compromised.
