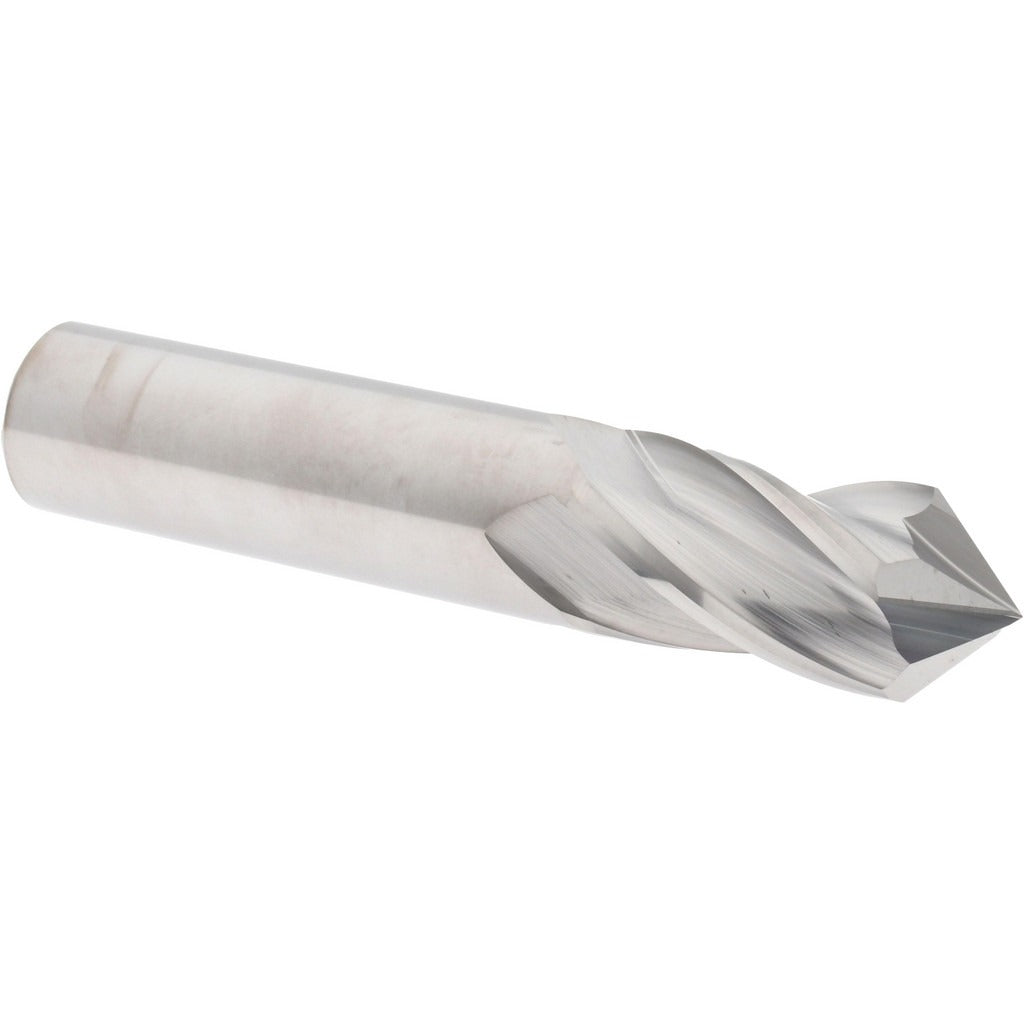

Accupro SCCMG-2424-DP-P 3/4 in Drill Mill 4 Flute Solid Carbide

Product Description

The ACCUPRO SCCMG-2424-DP-P is a solid carbide drill mill designed for combined drilling and milling operations on a single tool. Built from micrograin carbide with an uncoated finish, it delivers a 3/4 inch cutting diameter and a 90-degree point angle suited for spot drilling, chamfering, and peripheral milling in one setup. With 4 right-hand flutes and a right-hand cutting direction, it handles a wide range of ferrous and non-ferrous materials. Machinists and CNC operators in production and job-shop environments install this tool in standard end mill holders or collet chucks.

This drill mill is used in vertical machining centers, CNC mills, and manual knee mills where operators need to reduce tool changes by combining center drilling, through drilling, and milling in a single operation. The 1-1/2 inch length of cut and 4 inch overall length provide reach for typical through-hole and pocket work on workpieces fixtured in vises or tombstones. It is appropriate for dry cutting or with cutting fluid depending on the material being machined.

Key Features

• Solid micrograin carbide construction for rigidity and wear resistance at higher feed rates
• 90-degree point angle for accurate spot drilling and chamfering without a separate center drill
• 4 right-hand flutes with right-hand cutting direction for standard spindle rotation
• Uncoated finish suitable for a broad range of base materials and cutting fluid applications
• Matched shank and cutting diameter at 3/4 inch for direct collet or end mill holder mounting
• Mill diameter tolerance of +0.000 / -0.002 inches for consistent fit and repeatable results

Compatibility

Designed as a direct-mount drill mill for use in any standard 3/4 inch end mill holder, ER collet chuck, or Weldon-shank holder compatible with 3/4 inch shank tooling on vertical or horizontal machining centers.

Installation Notes

Installation is performed by a machinist or CNC operator. Secure the 3/4 inch shank in a properly sized collet or end mill holder and torque the retention mechanism to the holder manufacturer specification before running the spindle. Verify runout with a dial indicator before production cutting. Always confirm spindle speed and feed rate against the tool manufacturer recommendations for the workpiece material before engaging the cut.
