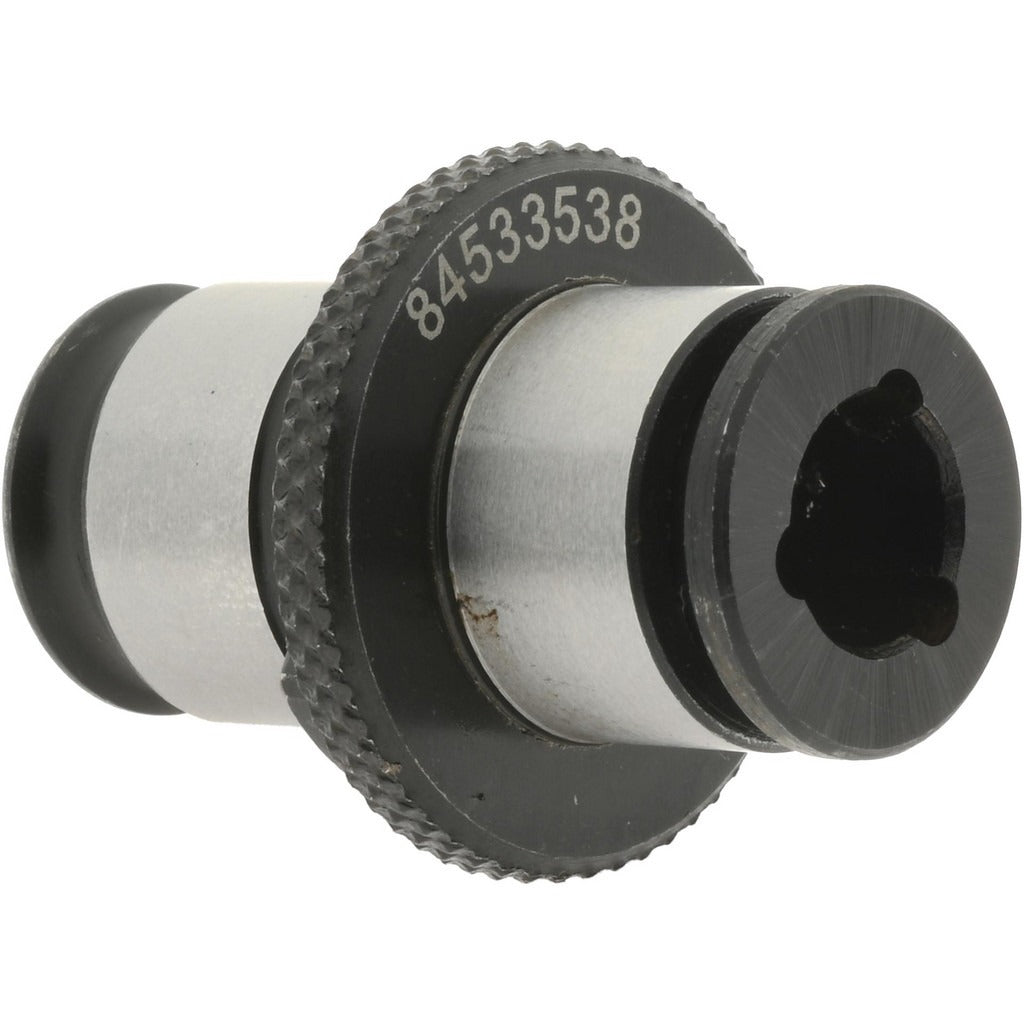

Accupro QA-1/K 3/8 Tapping Adapter 3/8 Inch Through Coolant

Product Description

The ACCUPRO QA-1/K 3/8 is a quick-change tapping adapter designed for use with 3/8 inch taps in machine tool tapping operations. It accepts a tap shank diameter of 0.381 inches and a tap square size of 0.286 inches, providing a secure, accurate drive connection. The adapter features through-coolant capability, allowing coolant delivery directly to the cutting zone to reduce heat and extend tap life. With a projection of 0.276 inches and a tap depth of 0.512 inches, it is engineered for compact, precise tap positioning. Machinists and toolroom professionals install this adapter in CNC machining centers and tapping machines where quick-change tooling systems are used.

This tapping adapter is suited for production and job-shop environments running 3/8 inch taps on vertical machining centers, drill-tap machines, or dedicated tapping heads. The quick-change design reduces setup time between tap changes, making it practical for high-mix or high-volume tapping operations. It is part of the WE 1 KP series, with an overall length of 25.50 mm and a flange diameter of 30.00 mm, fitting the standard WE 1 KP quick-change system interface.

Key Features

• Fits 3/8 inch tap size with 0.381 inch tap shank diameter and 0.286 inch tap square size
• Through-coolant design directs coolant to the cutting edge for improved chip evacuation and heat control
• Quick-change interface reduces tap changeover time in production environments
• Projection of 0.276 inches supports precise tap positioning in tight-clearance applications
• Part of the WE 1 KP series for compatibility with matching quick-change tapping systems
• Lightweight at 0.176 pounds for minimal spindle load

Compatibility

Designed for use with the WE 1 KP quick-change tapping system series, accepting taps with a 3/8 inch tap size, Adapter Size 1 designation, 0.381 inch shank diameter, and 0.286 inch square size.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician familiar with quick-change tapping systems. Power down and de-energize the machine spindle before mounting or removing the adapter. Verify that the tap shank diameter and square size match the adapter specifications before seating the tap. Consult the machine tool manufacturer and tooling system documentation for proper torque and retention procedures specific to the WE 1 KP interface.
