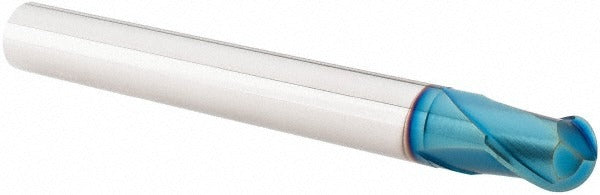

Accupro G8A43032 Ball End Mill 0.5 in 2 Flute Solid Carbide

Product Description

The ACCUPRO G8A43032 is a single-end ball end mill designed for contour milling, profiling, and 3D surface work in ferrous and non-ferrous materials. Built from nanograin solid carbide, it offers the rigidity and wear resistance required for consistent performance in production and job-shop environments. The mill measures 0.5 inches in diameter with a 0.5-inch length of cut, a 1-inch extended reach length, and a 4.5-inch overall length. The 30-degree right-hand helix promotes efficient chip evacuation while reducing cutting forces. This tool is installed and run by machinists and CNC operators working on vertical machining centers and multi-axis mills.

This end mill is suited for finish and semi-finish passes on complex contoured surfaces, pockets, and cavities in mold and die work, aerospace components, and general precision machining. The 0.5-inch shank diameter fits standard ER collet chucks, shrink-fit holders, and milling chuck systems commonly used in CNC machining centers. The extended reach configuration makes it appropriate for reaching into deeper pockets or past workholding obstructions without sacrificing rigidity. Two flutes keep gullet volume high for materials that generate significant chip load.

Key Features

• Nanograin solid carbide construction for extended tool life and edge sharpness
• 30-degree right-hand spiral helix for effective chip evacuation
• 1-inch extended reach length for deep-pocket and cavity access
• Tight mill diameter tolerance of +0.0000 to -0.0006 inches ensures consistent sizing
• Tight shank diameter tolerance of +0.0000 to -0.00043 inches for secure holder fit
• Right-hand cutting direction compatible with standard CNC spindle rotation

Compatibility

Designed as a direct-fit replacement for 0.5-inch shank ball end mills in standard ER collet chucks, shrink-fit holders, and milling chuck tooling systems used on CNC vertical and horizontal machining centers.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator with the spindle at a full stop and the machine in an e-stop or lockout state. Ensure the shank is clean and free of chips or debris before seating in the holder. Set tool length offset at the machine controller before beginning any cutting cycle. Follow the tooling manufacturer and machine builder guidelines for runout inspection after tool changes.
