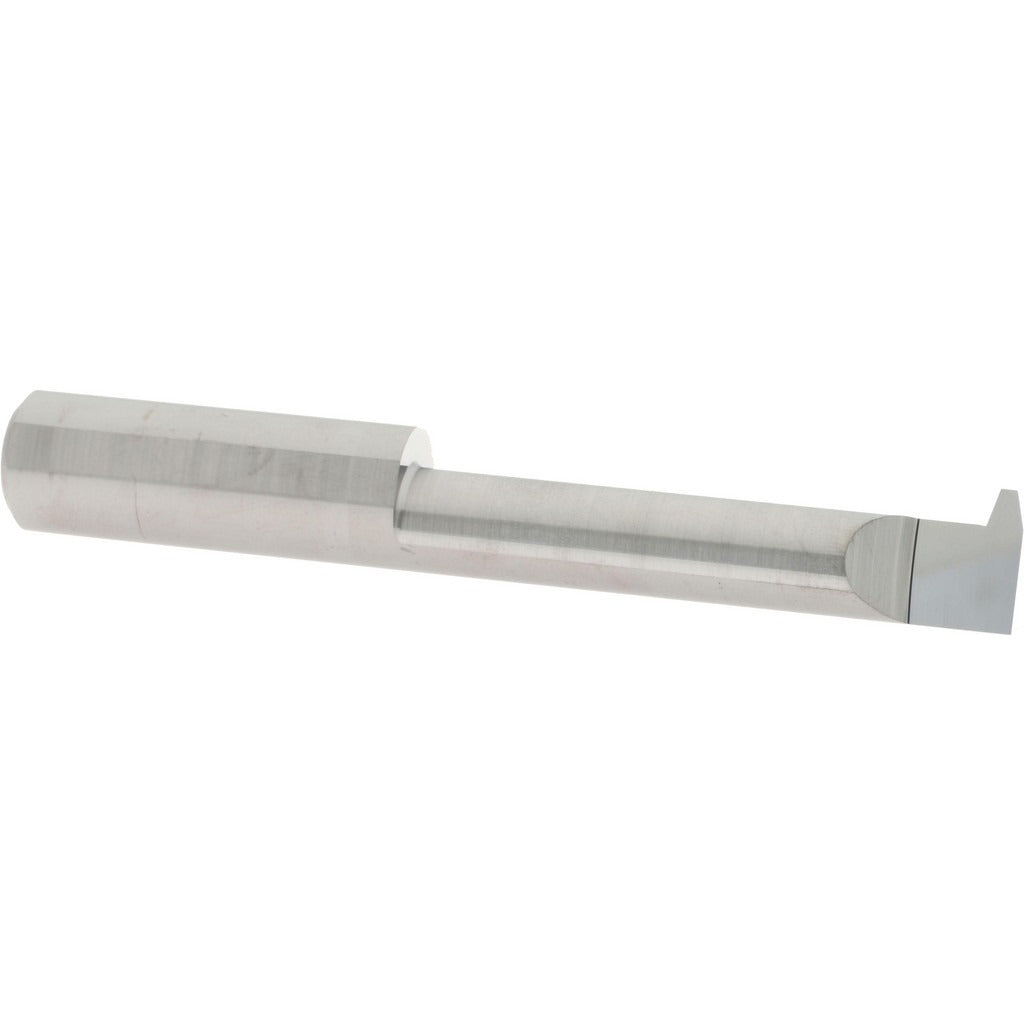

Accupro FAT4902000-6 Single Point Threading Tool 6 Tpi

Product Description

The ACCUPRO FAT4902000-6 is a solid carbide single point threading tool designed for internal thread cutting operations. Built for precision threading on lathes and CNC turning centers, this tool features a 29-degree profile angle and cuts to a minimum thread diameter of 0.49 inches with a maximum cut depth of 2 inches. At 6 threads per inch, it targets coarse-pitch internal threading work. The bright/uncoated finish is suitable for a range of materials where coating is not required. This tool is installed and used by machinists and CNC operators working in production or job shop environments.

This threading insert tool is suited for internal threading on lathes and turning centers where coarse-pitch threads are required. With a 0.49 inch minimum threading diameter, it handles smaller bores without sacrificing depth capacity. The 1/2 inch shank diameter fits standard toolholders commonly found in production and repair machine shops. The 0.12 inch projection from edge and 0.057 inch flat width support consistent thread form on through-holes and blind-bore applications where clearance is a consideration.

Key Features

• Solid carbide construction for rigidity and wear resistance in threading applications
• 29-degree profile angle for consistent thread form geometry
• 0.49 inch minimum threading diameter supports smaller internal bore work
• 2 inch cut depth accommodates deeper threading passes
• 6 TPI maximum for coarse-pitch internal threads
• Bright/uncoated finish suitable for general-purpose threading without coolant-through requirement

Compatibility

Designed as an OEM-style replacement or direct-fit threading tool for 1/2 inch shank internal threading toolholders used in lathe and CNC turning applications.

Installation Notes

Installation is performed by machinists or CNC operators. Secure the 1/2 inch shank firmly in the toolholder to the specified clamping torque listed in your machine or toolholder documentation before operation. Verify spindle speed and feed rate against the material being threaded prior to running. Inspect the tool edge for chipping or wear before each use, as solid carbide tooling is brittle and should not be used if the cutting edge is damaged.
