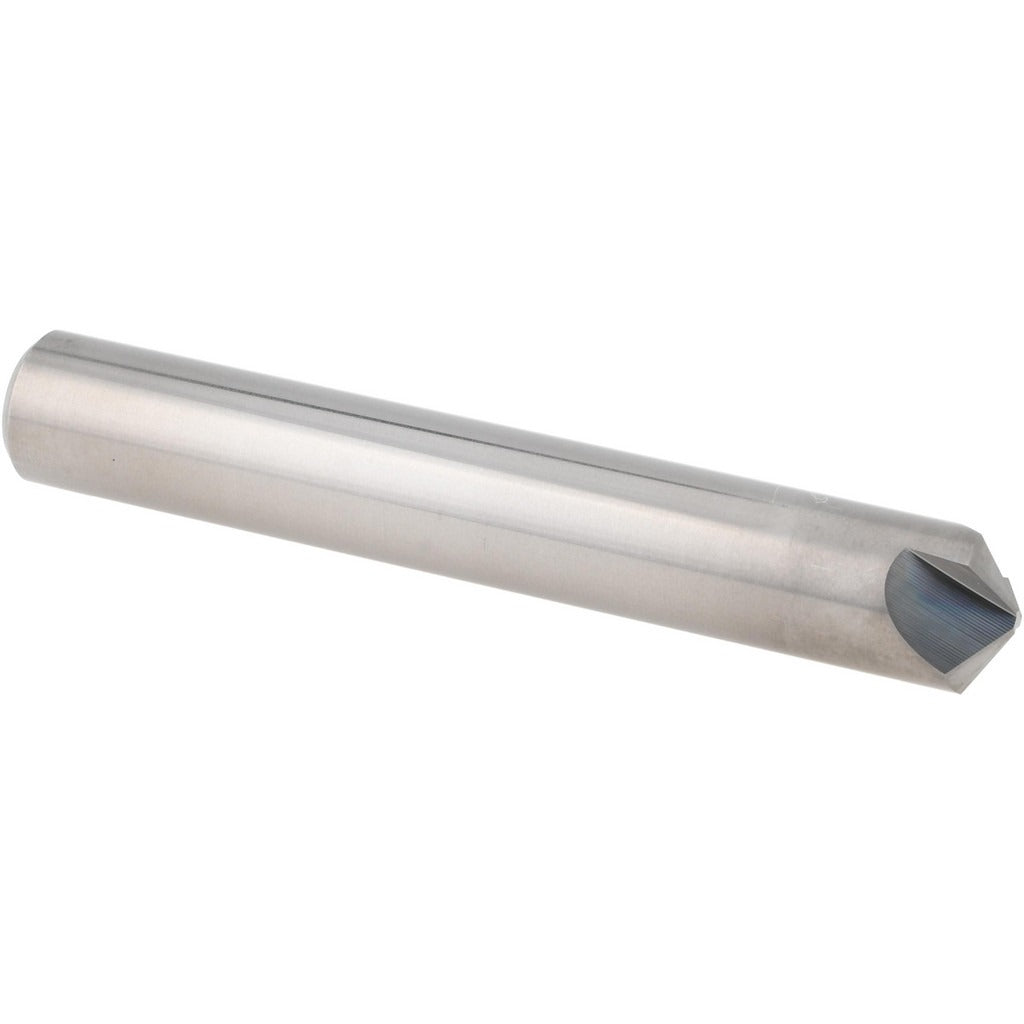

Accupro E599943862 Chamfer Mill 3/8 in 3 Flutes Solid Carbide

Product Description

The ACCUPRO E599943862 is a solid carbide chamfer mill designed for deburring, edge chamfering, and countersinking on metalworking applications. The cutter head measures 0.375 inches in diameter with a 3/8 inch shank and an overall length of 2.5 inches. Three right-hand flutes provide clean, consistent cutting action, while the bright uncoated finish suits a range of base materials where coating buildup is a concern. This tool is installed and operated by machinists and CNC operators working in precision manufacturing environments.

This chamfer mill is suited for single-end chamfering operations on ferrous and non-ferrous materials in both manual and CNC milling setups. The 0.091 inch length of cut makes it appropriate for fine edge-breaking and light chamfer profiling. Its compact geometry fits tight workpiece features where larger tooling cannot reach. Typical applications include chamfering drilled hole entries, deburring machined edges, and preparing surfaces for threaded inserts or mating parts.

Key Features

• Solid carbide construction for rigidity and wear resistance
• 3/8 inch cutter head diameter with 3/8 inch shank for direct collet or chuck mounting
• 3 flutes with right-hand cutting direction for standard spindle operation
• Bright uncoated finish suitable for a variety of workpiece materials
• Single-end design with 0.091 inch length of cut for precise edge chamfering
• 2.5 inch overall length for reach without excessive overhang

Compatibility

Designed as a standard single-end chamfer mill compatible with milling machines and machining centers accepting a 3/8 inch shank via collet, end mill holder, or equivalent toolholding system.

Installation Notes

This tool is installed by machinists or CNC operators. Ensure the spindle is fully stopped and the machine is powered down or in a safe-state before changing tooling. Secure the shank fully within the holder to the recommended grip depth and verify runout before engaging the workpiece. Follow applicable machine tool manufacturer guidelines for speed and feed selection based on material and cut depth.
