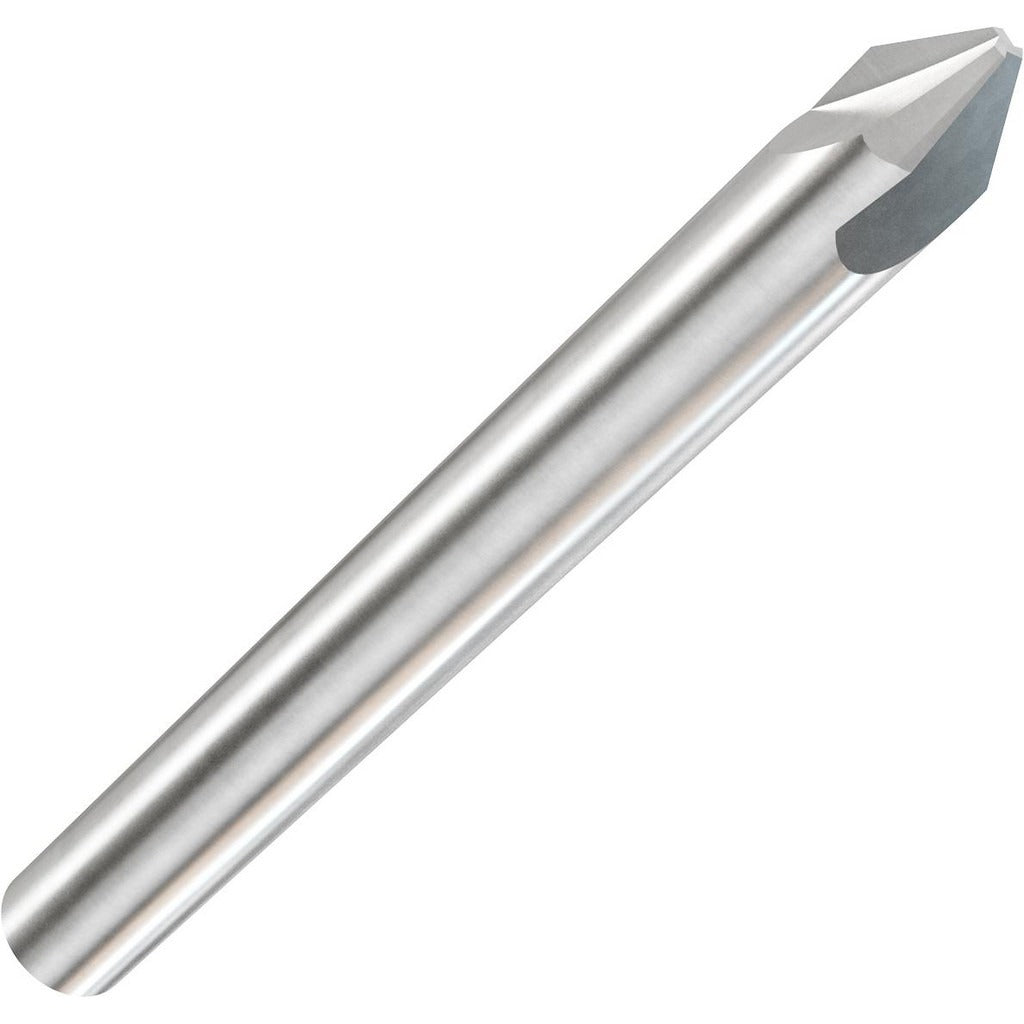

Accupro E599943848 Chamfer Mill 3/8 in 3 Flute Carbide

Product Description

The ACCUPRO E599943848 is a solid carbide chamfer mill designed for deburring, edge-breaking, and chamfering operations on metalwork and machined components. The cutter head measures 0.375 inches in diameter with a 3/8-inch shank and an overall length of 2.5 inches. Three right-hand flutes provide a clean cutting action with good chip evacuation. The bright uncoated finish makes this tool well suited for general-purpose chamfering where coating is not required. Machinists and tool-and-die professionals install this style of end mill in CNC machining centers and manual mills.

This chamfer mill is appropriate for single-end chamfering operations in job shops, production machining environments, and maintenance repair operations. The solid carbide construction delivers rigidity and wear resistance on ferrous and non-ferrous materials. With a 0.588-inch length of cut and no coolant-through capability, it is best suited for light-to-moderate duty chamfering passes using flood or mist coolant applied externally. It is a practical choice for edge preparation before threading, assembly fit-up, or finishing operations.

Key Features

• 0.375-inch cutter head diameter with matching 3/8-inch shank for secure tool holding
• Solid carbide construction for rigidity and extended tool life compared to HSS
• 3 right-hand flutes for efficient chip removal during chamfering passes
• Bright uncoated finish suitable for general-purpose applications
• 2.5-inch overall length provides reach for standard chamfering setups
• Single-end design for straightforward tool changes and holder compatibility

Compatibility

Designed as a standard single-end chamfer mill compatible with 3/8-inch collet chucks, end mill holders, and tool holders accepting a 3/8-inch straight shank in CNC and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Power down and lock out the machine spindle before seating or removing the tool from the holder. Ensure the shank is fully engaged and properly torqued in the collet or end mill holder per the tool holder manufacturer specification. Do not exceed the tool's rated depth of cut or engage without adequate chip clearance to avoid tool breakage.
