Accupro E599943846 Chamfer Mill 3/8 in 2 Flute Carbide

Product Description

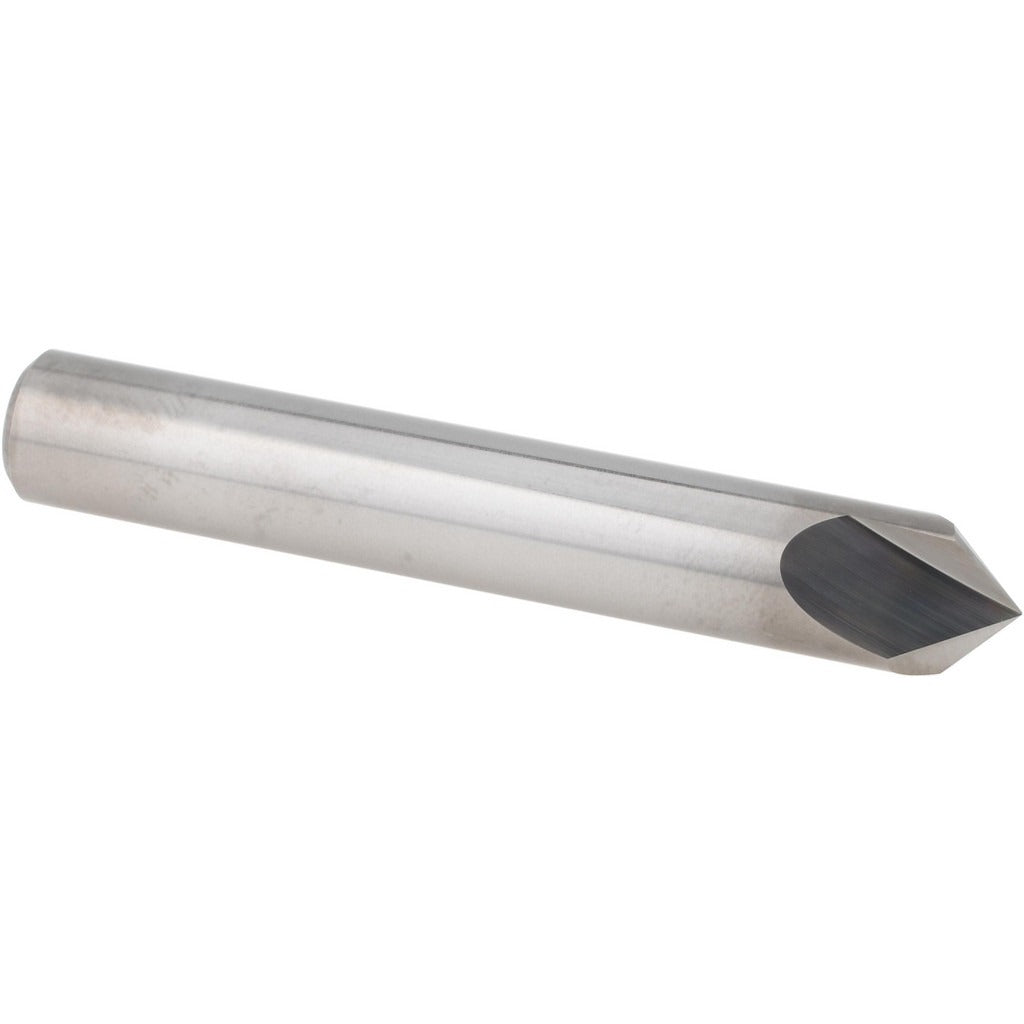

The ACCUPRO E599943846 is a solid carbide chamfer mill designed for deburring, chamfering, and edge-breaking operations on metal workpieces. It features a 3/8 inch cutter head diameter, 2 flutes, and a bright uncoated finish that provides good chip flow and visibility of the cutting edge during use. The single-end configuration and right-hand cutting direction make it a straightforward choice for standard CNC milling and manual machining centers. At 2.5 inches overall length with a 0.158 inch length of cut, this tool suits close-tolerance chamfering tasks across a range of ferrous and non-ferrous materials. Machinists and toolroom technicians are the primary users.

This chamfer mill is suited for use in production machining, job shop, and maintenance environments where consistent chamfer geometry is required. It fits standard 3/8 inch collet or end mill holders found on vertical machining centers, CNC mills, and manual knee mills. The solid carbide construction provides rigidity and wear resistance for both high-speed and conventional cutting passes. It does not support coolant-through delivery, so flood or mist coolant applied externally is the standard approach when cooling is needed.

Key Features

• Solid carbide construction for rigidity and extended tool life in demanding cutting conditions
• 2-flute design promotes chip evacuation during chamfering and deburring passes
• Bright uncoated finish suitable for a wide range of workpiece materials
• Right-hand cutting direction compatible with standard spindle rotation on most milling machines
• Single-end configuration with 0.158 inch length of cut for controlled edge engagement
• 3/8 inch shank diameter fits common collet sizes and end mill holders

Compatibility

Designed as a direct-fit replacement or stock chamfer mill for use in standard 3/8 inch collet chucks and end mill holders on CNC and manual milling machines.

Installation Notes

This tool is installed by qualified machinists or toolroom technicians. Power down and lock out the spindle before mounting or removing any cutting tool. Seat the shank fully in the collet or holder and torque the retaining nut to the machine or toolholder specification. Verify runout with a dial indicator before beginning a cut, as excessive runout will accelerate carbide wear and reduce chamfer quality.
