Accupro B3602500A Boring Bar 0.36 in Submicron Carbide Rh

Product Description

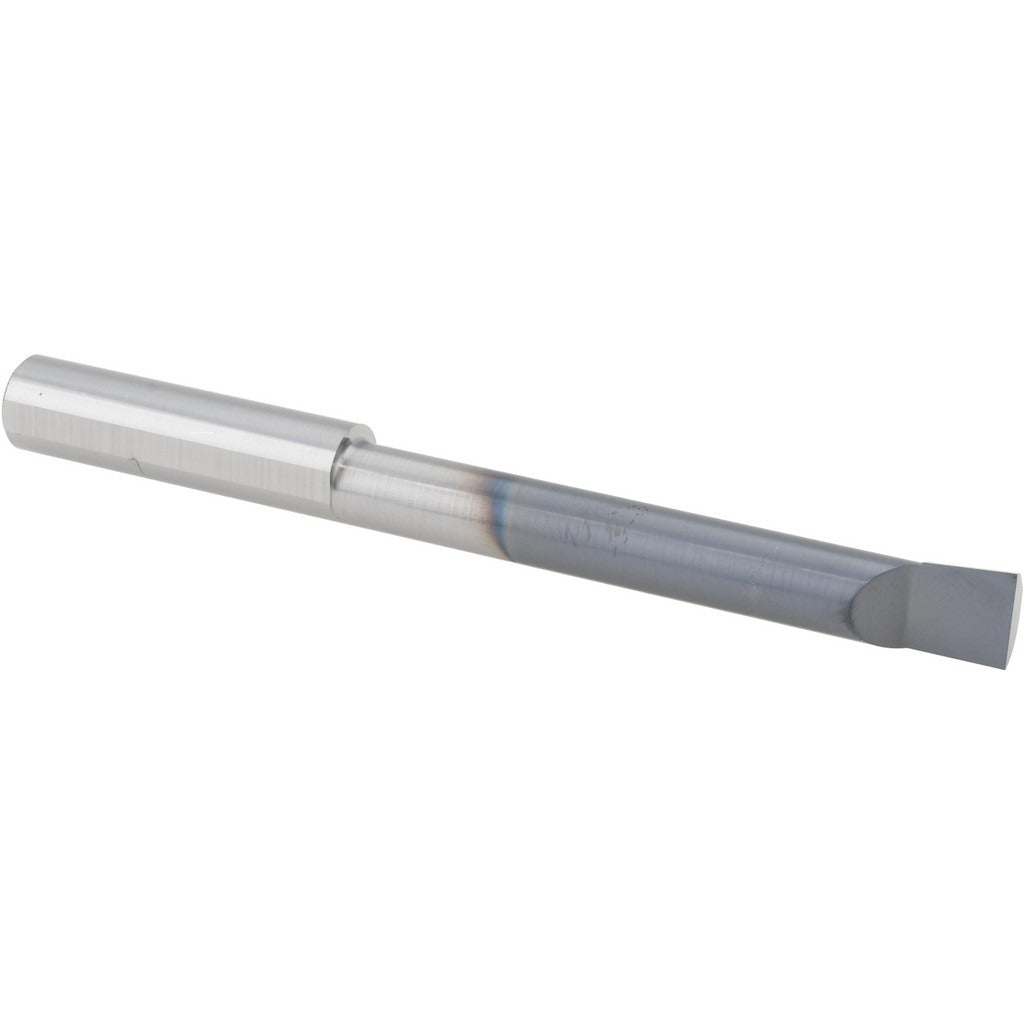

The ACCUPRO B3602500A is a solid carbide boring bar designed for precision internal diameter machining on lathes and turning centers. Built from submicron-grade carbide, it delivers the rigidity and wear resistance required for tight-tolerance bore work in steel, cast iron, aluminum, and similar materials. The right-hand cutting configuration handles standard boring operations. With a 3/8-inch shank diameter and a 4-inch overall length, it fits common boring bar holders and quick-change tooling systems. The 0.3600-inch minimum bore diameter suits small, deep-bore applications where rigidity is critical.

This boring bar is intended for use in machine shops, production facilities, and maintenance environments where precise internal diameter work is required. It is suited to both CNC turning centers and manual lathes equipped with a boring bar holder sized for a 3/8-inch shank. The 2.5-inch maximum bore depth allows work on moderately deep bores without the excessive overhang that reduces chatter resistance. Machinists, tool and die makers, and CNC operators are the primary users of this tooling.

Key Features

• Submicron solid carbide construction provides high rigidity and extended tool life in demanding bore applications
• Right-hand cutting direction for standard lathe and turning center setups
• 0.3600-inch minimum bore diameter enables small-bore internal machining
• 2.5-inch maximum bore depth supports moderately deep internal features
• 3/8-inch shank diameter fits widely available boring bar holders and quick-change systems
• 4-inch overall length balances reach and rigidity for typical turning setups

Compatibility

Designed for use with boring bar holders and quick-change tooling systems that accept a 3/8-inch shank. Suitable for CNC turning centers and manual lathes where a right-hand boring bar with a 0.3600-inch minimum bore diameter is required.

Installation Notes

Installation is performed by machinists and CNC operators. Ensure the machine spindle is fully stopped and the control is in a safe state before mounting or removing tooling. Secure the shank in a properly sized boring bar holder and verify minimum stick-out to reduce chatter and deflection. Confirm bore diameter clearance before beginning the cut to avoid tool or workpiece damage.
