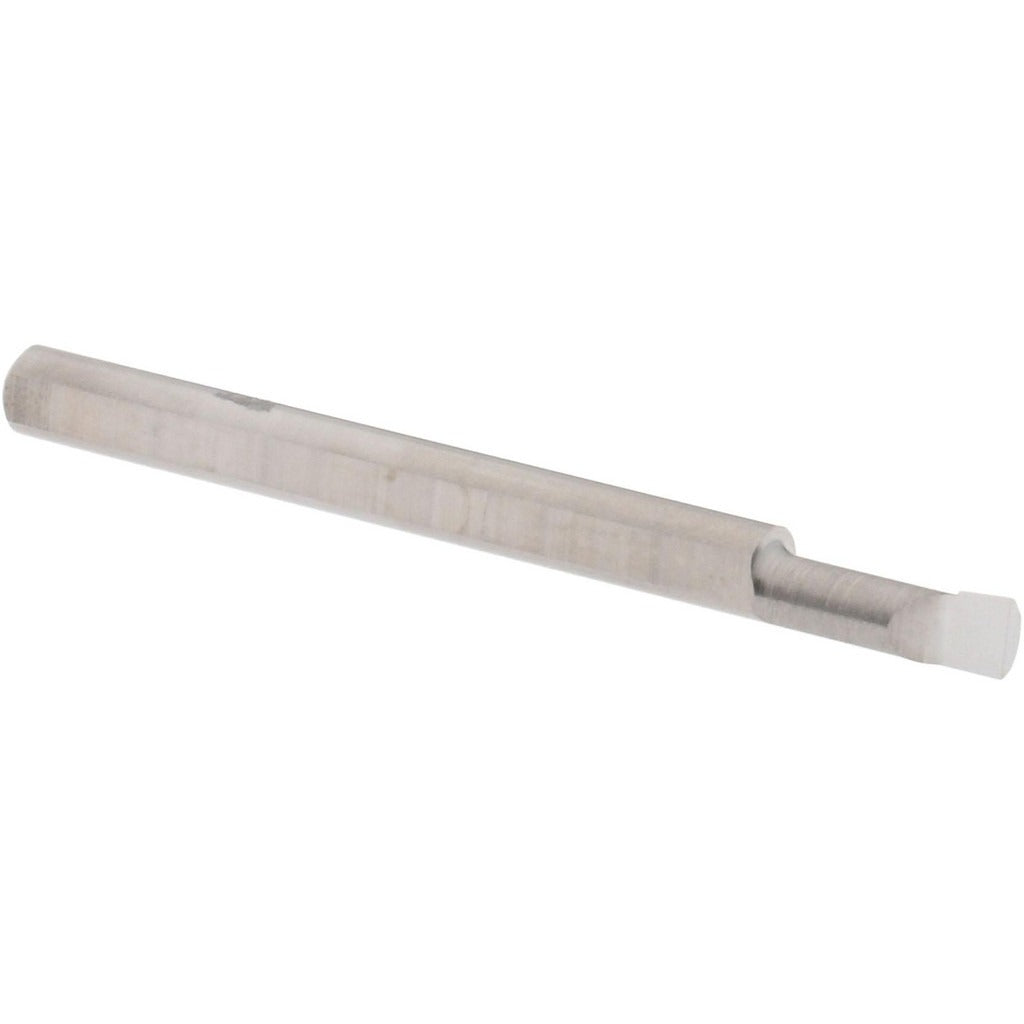

Accupro B110300R Corner Radius Boring Bar Solid Carbide

Product Description

The ACCUPRO B110300R is a corner radius boring bar machined from submicron-grade solid carbide for internal boring operations requiring tight corner geometry control. The bar cuts in the right-hand direction and handles a minimum bore diameter of 0.11 inches with a maximum bore depth of 0.3 inches. The 1/8-inch shank diameter and 1.5-inch overall length make it well suited for small-bore applications where rigidity and dimensional accuracy are critical. A bright finish coating is applied to the flute and body. Corner radius range runs from 0.003 to 0.005 inches, allowing the operator to blend inside corners without leaving a sharp stress-concentration point.

This boring bar is used in CNC and manual turning operations where small internal diameters and controlled corner radii are required. Typical applications include precision bores in hydraulic components, medical device parts, instrumentation housings, and other small-diameter workpieces in ferrous and non-ferrous materials. The submicron carbide grade provides the hardness and edge retention needed for fine finishing passes at the bore wall and corner transition.

Key Features

• Submicron solid carbide construction for high hardness and edge retention
• Minimum bore diameter of 0.11 inches for small-bore precision work
• Maximum bore depth of 0.3 inches
• Corner radius range of 0.003 to 0.005 inches for controlled inside-corner blending
• 1/8-inch shank diameter for compatibility with standard small-bore toolholders
• Bright finish coating on carbide body

Compatibility

Designed as an OEM-style replacement or direct-fit tooling selection for standard 1/8-inch bore bar toolholders used in CNC turning centers and manual lathes requiring right-hand internal cutting tools.

Installation Notes

Installation and tool changes must be performed by a qualified machinist with the spindle fully stopped and the machine locked out per facility safety procedures. Secure the 1/8-inch shank firmly in the toolholder to minimize overhang and deflection before taking any cut. Verify that the corner radius specification matches the part drawing requirement before beginning the boring pass. Follow the machine manufacturer guidelines for speed and feed selection appropriate to the workpiece material and depth of cut.
