Accupro Acc -T3201000 Single Point Threading Tool

Product Description

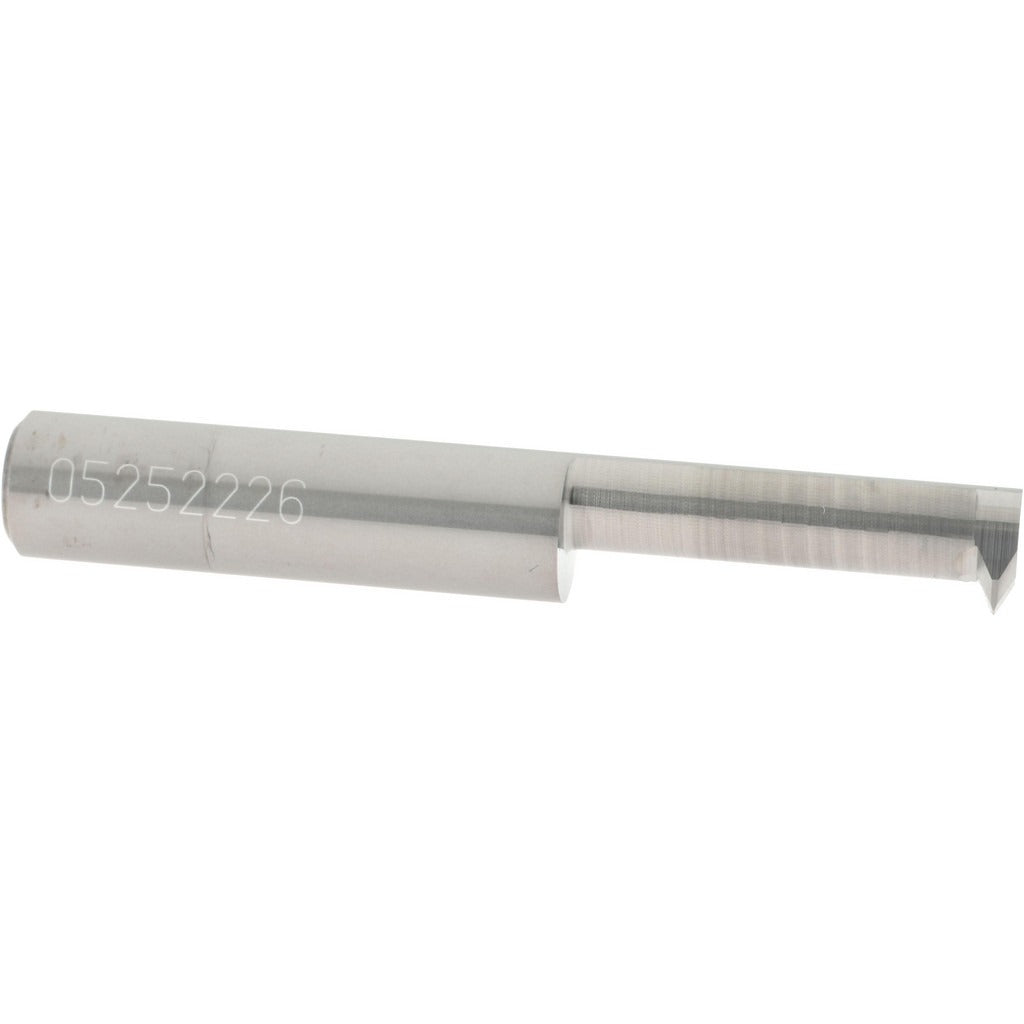

The ACCUPRO ACC -T3201000 is a solid carbide single point threading tool designed for internal thread cutting operations on CNC lathes and manual turning centers. It accepts a minimum threading diameter of 0.32 inches and handles a thread range of 10 to 32 TPI, making it suitable for a broad range of unified and metric-style internal thread profiles. The tool features a 60-degree profile angle and delivers a cutting depth of 1 inch. The solid carbide construction provides rigidity and wear resistance in ferrous and non-ferrous materials. Machinists and toolroom technicians in production and job-shop environments are the primary installers of this tooling.

This threading insert tool is used in internal bore threading applications where a 3/8-inch shank holder is employed. It is suited for residential and commercial machine shops running precision threading operations on lathes or turning centers. The 0.075-inch projection from edge and 2.5-inch overall length make it appropriate for moderate-depth bore threading on workpieces requiring clean, accurate thread forms across the 10 to 32 TPI range. No coating is applied, so it performs well in applications where uncoated carbide is preferred for sharp edge retention.

Key Features

• Solid carbide construction for rigidity and long tool life in threading operations
• Internal thread type with a 60-degree profile angle for standard unified thread forms
• Threading range of 10 to 32 TPI covers a wide variety of common thread pitches
• 3/8-inch shank diameter fits standard boring bar and threading tool holders
• Bright/uncoated finish maintains sharp cutting edge geometry
• No coolant-through requirement simplifies setup on standard machines

Compatibility

Designed for use with 3/8-inch shank internal threading tool holders on CNC and manual lathes capable of single point threading operations.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Ensure the machine spindle is fully stopped and the tool holder is secure before inserting or removing the threading tool. Verify shank clamping torque against the tool holder manufacturer specifications and confirm tool overhang does not exceed recommended limits for the holder style in use. Follow shop safety procedures and applicable machining standards when setting up threading operations.
