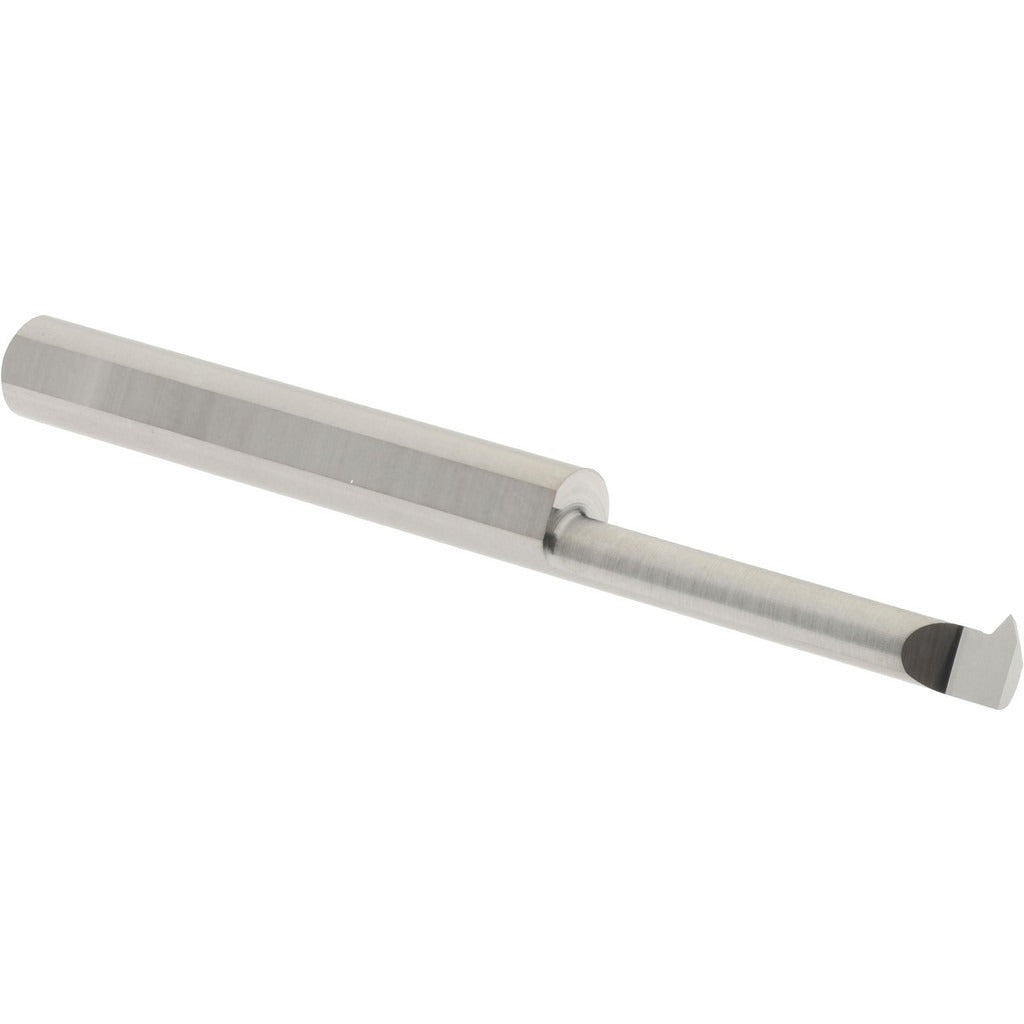

Accupro Acc -T150750 Single Point Threading Tool

Product Description

The ACCUPRO ACC -T150750 is a solid carbide single point threading tool designed for internal thread cutting operations on CNC lathes and manual turning equipment. With a minimum threading diameter of 0.15 inches and a cutting depth of 0.75 inches, this tool handles a thread range of 20 to 56 TPI using a 60-degree profile angle. The 3/16-inch shank and 2-inch overall length make it well suited for tight-bore threading applications where clearance is limited. The bright uncoated finish is standard for solid carbide tooling used in general-purpose threading on ferrous and non-ferrous materials. Machinists and toolroom technicians are the primary users of this insert-style threading tool.

This threading tool is used in internal threading operations on lathes and turning centers in job shop, production machining, and maintenance machining environments. It is appropriate for threading bores in steel, aluminum, brass, and similar machinable materials where a unified or metric 60-degree thread form is required. The 20 to 56 TPI range covers common fastener thread pitches from coarse through fine, making it a practical choice for general threading work across a range of part sizes.

Key Features

• Internal thread cutting with a 60-degree profile angle for unified thread forms
• Solid carbide construction for rigidity and wear resistance in threading operations
• Minimum threading diameter of 0.15 inches for small-bore internal work
• Thread range of 20 to 56 TPI covers coarse through fine pitches
• 0.035-inch projection from edge provides controlled cutting geometry
• Bright uncoated finish suitable for a wide range of workpiece materials

Compatibility

Designed as an OEM-style single point threading tool for use in standard 3/16-inch shank toolholders on CNC lathes and manual turning centers requiring internal 60-degree thread profile cutting.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Secure the 3/16-inch shank firmly in the toolholder and verify projection distance before running. Confirm spindle speed, feed rate, and depth of cut are set per the threading program before engaging the workpiece. Inspect the cutting edge for chips or wear before each use, as solid carbide tooling can fracture if run on an interrupted cut without proper setup.
