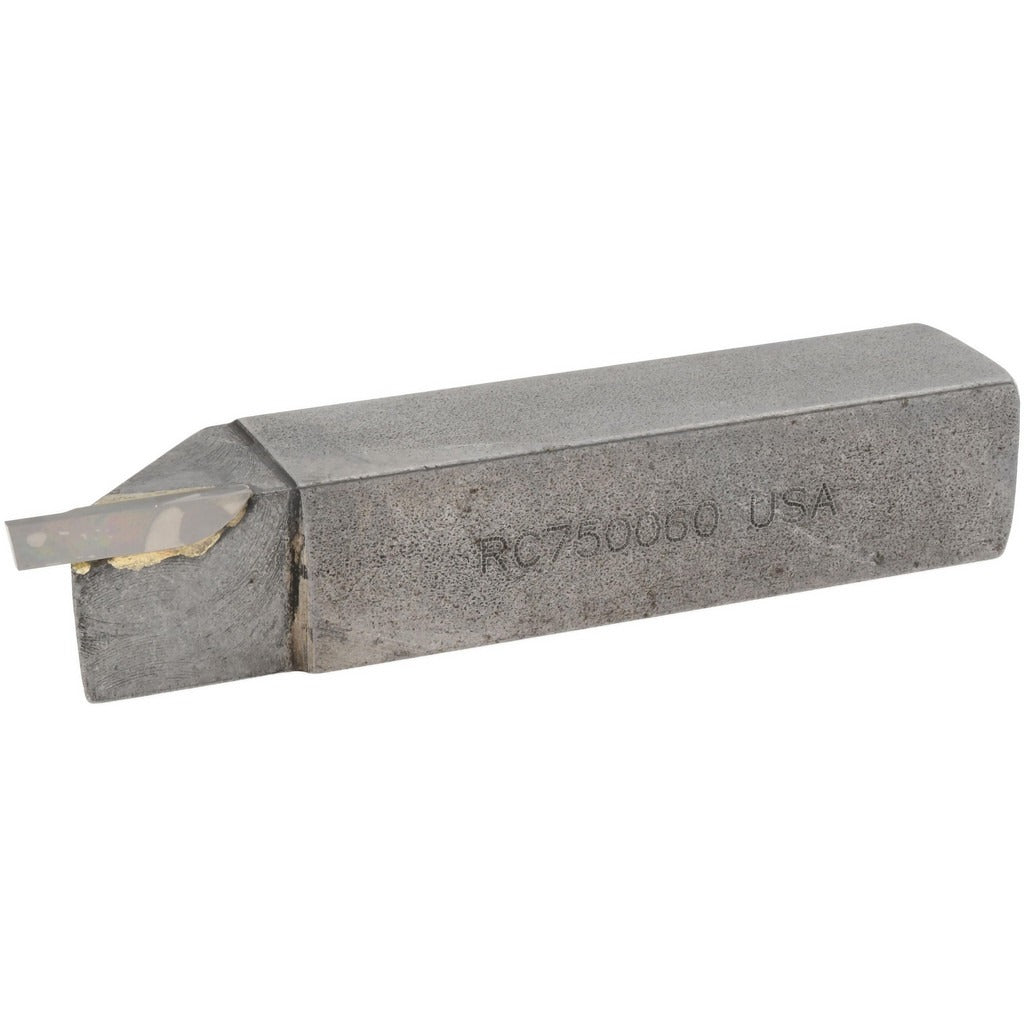

Accupro ACC-RC750060 Cut-off Grooving Tool Bit

Product Description

The ACCUPRO ACC-RC750060 is a single-point RC-style cut-off and grooving tool bit designed for precision material removal on metal lathes and CNC turning centers. Built with a solid micrograin carbide tip, it delivers consistent performance in cut-off and grooving operations where dimensional accuracy is critical. The shank measures 3/4 inch in height and 3/4 inch in width, with an overall length of 4 inches. The tip width and thickness are both 0.0600 inches, making it well suited for narrow groove profiles and parting applications. This tool bit is installed by machinists and tool-and-die professionals working in production and job-shop environments.

This tool bit is used in right-hand cutting applications on manual lathes and CNC turning equipment. It is appropriate for grooving and parting operations on ferrous and non-ferrous materials where a solid carbide cutting edge is required for tool life and surface finish. The RC-style designation and industry standard number RC-750060 make it a direct reference for shops sourcing replacement or additional tooling to match existing toolholders configured for RC-profile inserts or solid bit holders with 3/4 inch square shank pockets.

Key Features

• Solid micrograin carbide tip for extended tool life in cut-off and grooving operations
• RC tool bit style with industry standard number RC-750060 for easy cross-referencing
• 3/4 inch x 3/4 inch square shank fits standard toolholders configured for that pocket size
• Tip width and thickness of 0.0600 inches for narrow groove and parting-off applications
• Right-hand cutting direction for conventional lathe setup
• 4-inch overall length provides sufficient reach for typical turning center toolpost configurations

Compatibility

Designed as an OEM-style replacement or direct sourcing option for toolholders and lathe setups that accept a 3/4 inch square shank RC-style single-point tool bit. Verify toolholder pocket dimensions and clamping style before installation.

Installation Notes

This tool bit is installed by qualified machinists. Ensure the machine spindle is fully stopped and the lathe or turning center is powered down before changing or setting tool bits. Secure the shank firmly in the toolholder to the holder manufacturer's clamping specifications to prevent movement under cutting load. Inspect the carbide tip for chipping before each use and do not exceed the recommended depth of cut for the tip width.
