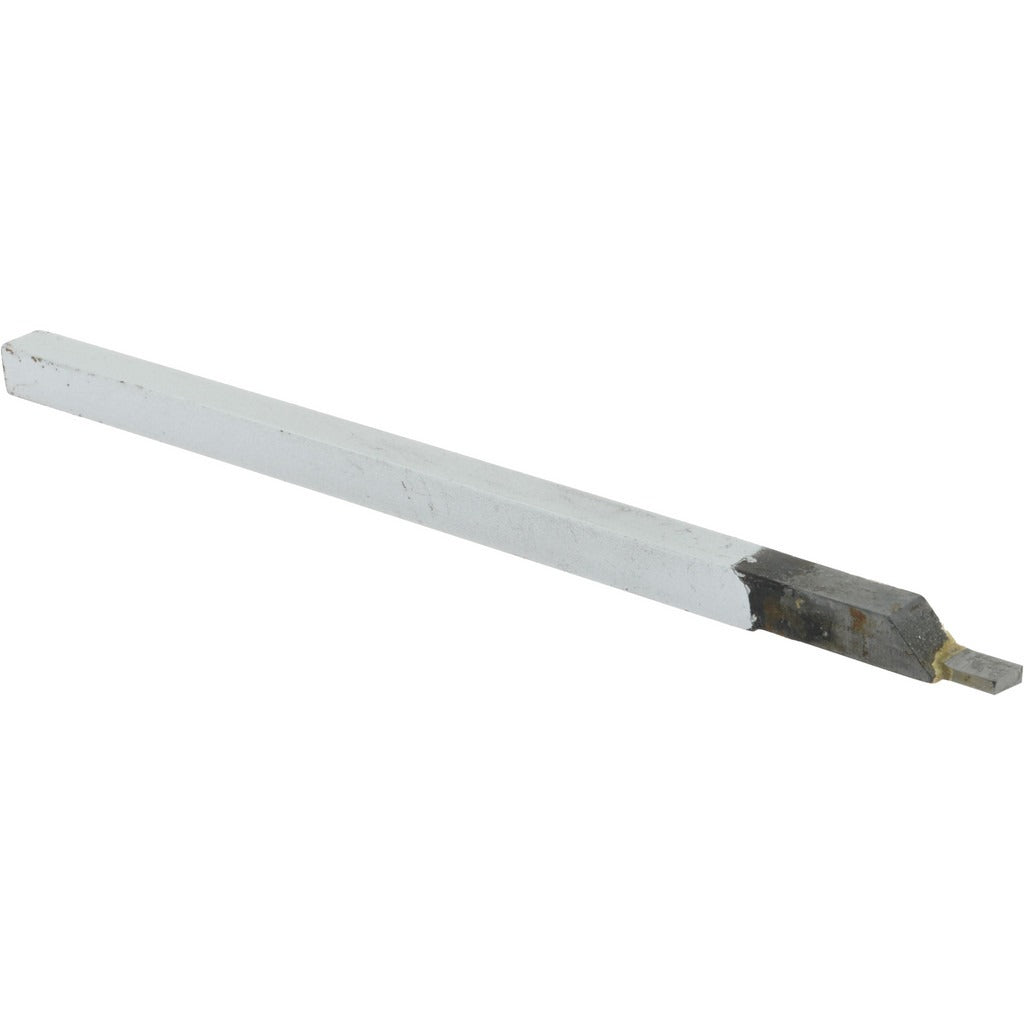

Accupro ACC-RC281080 Cut-off Grooving Tool Bit 6 Inch

Product Description

The ACCUPRO ACC-RC281080 is a single point tool bit designed for cut-off and grooving operations on metalworking lathes and turning centers. Built to RC style geometry with a right-hand cutting direction, this tool bit features a micrograin solid carbide tip that delivers consistent edge retention and wear resistance in interrupted and continuous cuts. The shank measures 9/32 inches wide by 9/32 inches tall with an overall length of 6 inches. The tip width and tip thickness are each 0.080 inches, making it suitable for narrow grooving and parting work where dimensional precision matters. Licensed machinists and skilled tool and die tradespeople are the primary installers and users of this tooling.

This tool bit is applied in ferrous and non-ferrous turning applications where a rigid, compact shank is required in smaller tool post setups or turret positions. The RC style is a recognized industry-standard form for cut-off and grooving inserts and brazed carbide bits, commonly used in job shops, production turning cells, and maintenance machine shops. The 6-inch overall length provides sufficient clearance for most standard lathe setups. The micrograin carbide tip grade is particularly suited for finishing passes and moderate-material-removal grooving where surface finish quality and tool life are priorities.

Key Features

• RC style single point geometry matched to industry standard number RC-281080
• Micrograin solid carbide tip for extended edge life and fine surface finishes
• Right-hand cutting direction for standard lathe setups
• 0.080 inch tip width and 0.080 inch tip thickness for narrow cut-off and grooving work
• 9/32 inch by 9/32 inch shank profile fits compact tool holders and turret slots
• 6 inch overall length provides adequate reach in most turning center configurations

Compatibility

Designed as an OEM-style replacement and direct application fit for tool holders and lathe setups that accept RC style single point cut-off and grooving bits with a 9/32 inch square shank. Industry standard number RC-281080 cross-references this tooling to standard catalog specifications.

Installation Notes

Installation and tool setting should be performed by a qualified machinist or toolroom technician. Ensure the lathe or turning center is fully powered down and the spindle is locked before seating or adjusting the tool bit in the holder. Secure the shank firmly in the tool post or turret block using the appropriate clamping screws to prevent tool movement during the cut. Follow your facility safety procedures and machine manufacturer guidelines when setting tool height and overhang.
