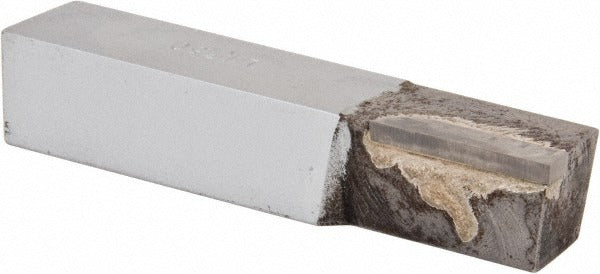

Accupro ACC-LT750 Single Point Tool Bit Lt Turning

Product Description

The ACCUPRO ACC-LT750 is a left-hand, single-point turning tool bit designed for precision metal cutting operations on manual and CNC lathes. Built with a micrograin solid carbide tip brazed to a steel shank, it delivers consistent cutting performance on ferrous and non-ferrous materials. The shank measures 3/4 inch wide by 3/4 inch tall, with an overall length of 4 inches, fitting standard quick-change and lantern-style toolposts in that size class. This tool bit is suited for machinists, tool and die technicians, and maintenance shops requiring reliable, repeatable turning geometry in a left-hand orientation.

The ACC-LT750 follows the LT-750 industry standard designation, making it a direct specification match for shops sourcing to that standard. It is used in turning applications where the tool feeds from left to right relative to the workpiece, which is common in facing operations and shoulder turning on conventional lathes. The micrograin carbide tip grade supports use on a range of materials including steel, aluminum, cast iron, and brass. This style of tool bit is a shop staple for job shops, production facilities, and maintenance environments running engine lathes or toolroom lathes.

Key Features

• Micrograin solid carbide tip for fine grain structure and improved edge retention
• Left-hand cutting direction suits right-to-left feed and specific shoulder turning setups
• 3/4 inch by 3/4 inch shank cross-section fits standard toolpost holders in that size range
• 4-inch overall length provides adequate clearance and reach for most lathe toolpost configurations
• LT style geometry follows industry standard LT-750 specification

Compatibility

Designed as an OEM-style replacement and specification-matched tool bit for lathe toolpost systems accepting 3/4 inch shank tool bits per the LT-750 industry standard.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Secure the tool bit in the toolpost holder and confirm the cutting edge is set at the correct center height for the workpiece before beginning a cut. Inspect the carbide tip for cracks or chips before mounting. Do not exceed the recommended depth of cut or feed rate for the tip material and workpiece combination.
